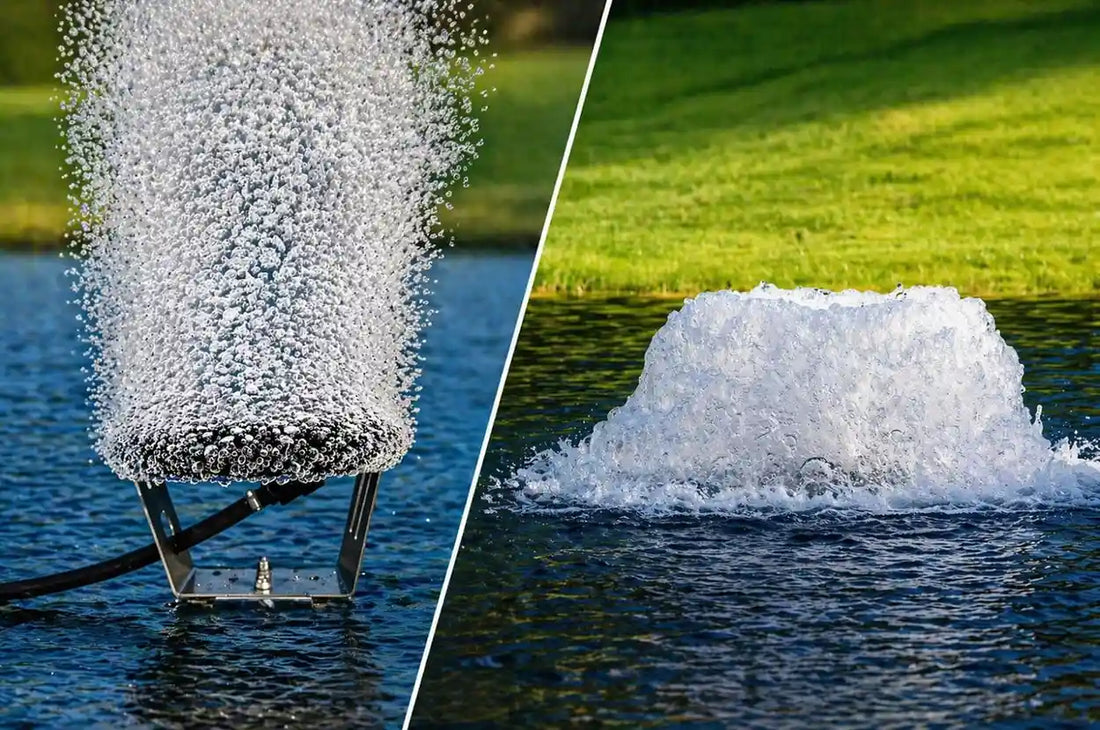

Surface vs Diffused Pond Aeration: Pros and Cons
Published by:
DM Ecc
Comparison Guide · Pond Aeration
Choosing the wrong aeration type for your pond depth is the single most common reason Canadian pond owners end up with persistent algae, fish stress, and foul odours despite having a running aerator. This guide breaks down exactly how each system works, where each one wins, and how to make the right choice for your specific pond.
Quick answer
Surface aeration oxygenates from the top down by spraying water into the air. It works well in ponds under 6 feet deep and is the more affordable, easier-to-install option. Diffused aeration oxygenates from the bottom up by releasing air bubbles from the pond floor. It is the more effective system in ponds deeper than 6 feet and in any pond with a significant fish population. For Canadian ponds with fish or depths over 6 feet, diffused aeration is the recommended choice. For shallow decorative ponds, surface aeration is sufficient and more cost-effective.
Part of the complete guide
Pond Aeration Systems: Complete Guide for Healthy Ponds in Canada
→
6ft
The depth at which diffused aeration becomes more effective than surface aeration
2x
Higher oxygen transfer efficiency of diffused aeration compared to surface in deep ponds
30%
Lower upfront cost of surface aerators compared to equivalent diffused systems
100%
Of the water column oxygenated by diffused aeration vs. only the top portion by surface aerators
Both surface and diffused pond aeration systems do the same fundamental job: they add dissolved oxygen to pond water and improve circulation. What separates them is where they work in the water column and how effectively they prevent the oxygen-depleted stratification that causes most pond health problems in Canada.
The confusion for most Canadian pond owners comes from the fact that both system types look similar on a spec sheet, both are available at a comparable range of price points, and both will show some improvement in pond clarity when installed. The critical difference only becomes visible when the pond is deeper than 6 feet or when fish are present. In those situations, the choice between surface and diffused aeration can be the difference between a thriving pond and a chronic problem that no amount of chemical treatment will resolve.
The core rule: match your aeration type to your pond depth, not your pond size
A 2-acre pond that is 4 feet deep needs a surface aerator sized by area. A half-acre pond that is 10 feet deep needs a diffused system sized by volume. Pond size in acres is far less important than average depth when choosing between these two systems. Many Canadian pond owners with chronic water quality problems are running the right-sized aerator of the wrong type.
● ● ●
How each system works
The mechanism behind surface and diffused aeration
Understanding how each system physically adds oxygen to your pond makes the pros and cons much easier to evaluate. The two approaches are fundamentally different in where oxygenation begins and how far through the water column it reaches.
01
How surface aeration works
Oxygenation from the top down through water-to-air contact
A surface aerator sits on a float in the pond and uses an electric or solar-powered pump to draw water upward through a central intake and spray it into the air. As the water breaks into fine droplets above the surface, each droplet absorbs oxygen directly from the atmosphere. When the droplets fall back into the pond, they carry that dissolved oxygen with them, introducing it into the upper water column.
The secondary benefit is turbulence. The splash and return of sprayed water creates surface agitation that increases the rate of gas exchange at the water-air boundary. This additional exchange continues even between spray cycles in windy conditions. In shallow ponds, this turbulence reaches far enough downward to circulate a meaningful portion of the water column. In deep ponds, the turbulence effect diminishes rapidly with depth and has very little influence below 4 to 5 feet.
Mechanism: Water sprayed into air then returned to pond surface Oxygen entry point: Top of the water column Effective depth: Top 4 to 5 feet Secondary benefit: Decorative spray pattern
💧 In a pond under 5 feet deep, surface turbulence from a properly sized aerator reaches the bottom and creates meaningful full-column circulation. This is why surface aerators work well in shallow ponds and why the 6 ft depth threshold is not a hard cutoff but a practical guideline.
02
How diffused aeration works
Oxygenation from the bottom up through rising bubble columns
A diffused aeration system uses a shore-mounted air compressor to push pressurised air through a weighted airline to one or more diffuser discs or plates resting on the pond bottom. The diffuser releases a continuous curtain of fine air bubbles. As these bubbles rise through the water column, two things happen simultaneously: the bubbles themselves transfer oxygen directly into the surrounding water, and the upward movement of the bubble column drags cold, oxygen-depleted bottom water upward to the surface.
This second effect, called destratification, is what makes diffused aeration uniquely effective in deep ponds. The rising bubbles physically move the entire water column from bottom to top, eliminating the thermal layering that causes oxygen depletion near the pond floor. Every litre of water in the pond cycles through the aerated zone repeatedly throughout the day. The compressor stays on shore in a weatherproof cabinet, meaning no electrical components are submerged in the water at any point.
Mechanism: Air bubbles rise from pond bottom through full water column Oxygen entry point: Entire water column from bottom to surface Effective depth: Any depth Secondary benefit: Eliminates thermal stratification
Canadian note
The destratification benefit of diffused aeration is especially important in Canadian ponds. Our temperature swings between seasons cause sharp thermal layering. A cold, oxygen-depleted bottom layer that forms in summer can trigger a sudden pond turnover when autumn winds cool the surface. In a well-aerated diffused pond, stratification never forms, so there is no accumulated oxygen debt waiting to be released in a catastrophic turnover event.
● ● ●
Detailed comparison
Pros and cons of surface aeration
Surface aeration has genuine strengths that make it the right choice for a large number of Canadian ponds. Understanding both sides of the ledger helps you assess whether your pond falls into that category.
Pros of surface aeration
- Lower upfront equipment cost compared to diffused systems
- Simpler installation with no underwater airline or compressor shelter required
- Decorative spray or fountain pattern adds visual appeal to the pond
- Solar models are widely available and easy to install in remote locations
- Effective and sufficient for all ponds under 6 feet average depth
- Easy to relocate or remove seasonally
- Lower maintenance requirements; only the float pump needs annual servicing
Cons of surface aeration
- Does not oxygenate below 4 to 5 feet regardless of system size
- Cannot prevent thermal stratification in deep ponds
- Not effective for fish ponds deeper than 6 feet
- Must be removed and stored before freeze-up each winter
- Creates visual surface movement that some pond owners find excessive
- Electrical components are in the water, requiring GFCI protection
- Pump is exposed to pond water mineral buildup and requires cleaning
Pros and cons of diffused aeration
Diffused aeration costs more upfront and requires more planning to install, but it delivers fundamentally better results in the pond conditions where most Canadian fish-keeping problems occur.
Pros of diffused aeration
- Oxygenates the entire water column from bottom to surface
- Eliminates thermal stratification and the risk of pond turnover
- Effective at any pond depth, including ponds over 15 feet deep
- Compressor stays on shore; no electrical components submerged in water
- Can be run year-round in fish ponds to maintain a breathing hole in winter ice
- Accelerates aerobic decomposition of bottom sediment, reducing muck over time
- Compressors and diffuser discs are serviceable independently without draining the pond
Cons of diffused aeration
- Higher upfront cost than comparable surface aerators
- Requires a compressor shelter or weatherproof enclosure on shore
- Airline must be run from shore to pond bottom; more complex installation
- No decorative visual effect at the surface
- Diffuser discs require periodic cleaning and replacement every 3 to 5 years
- Compressor diaphragms or pistons need annual maintenance
- Less practical for very small ponds under 500 square feet
● ● ●
Factor-by-factor breakdown
Surface vs. diffused: which system wins on each factor
Here is a direct comparison across every factor that matters to Canadian pond owners. The winning system for each category is noted based on performance in typical Canadian pond conditions.
| Factor | Surface Aeration | Diffused Aeration | Winner |
|---|---|---|---|
| Effectiveness in shallow ponds (under 6 ft) | Excellent; fully oxygenates the water column | Good; effective but more equipment than needed | Surface |
| Effectiveness in deep ponds (over 6 ft) | Poor; cannot reach the lower water column | Excellent; oxygenates from bottom to surface | Diffused |
| Fish pond suitability | Adequate for shallow fish ponds under 5 ft | Superior; maintains DO throughout the full water column where fish live at all depths | Diffused |
| Stratification prevention | Partial; works near the surface only | Complete; destratifies the entire column by moving bottom water upward | Diffused |
| Upfront equipment cost | Lower by approximately 25 to 40% | Higher due to compressor, airline, and diffuser components | Surface |
| Installation complexity | Simple; float in pond, cord to outlet | Moderate; compressor shelter, airline to bottom, diffuser placement | Surface |
| Ongoing maintenance | Annual pump cleaning and impeller check | Annual compressor service and periodic diffuser disc replacement | Roughly equal |
| Winter operation (fish ponds) | Cannot be used; creates unsafe ice conditions | Can run year-round; maintains breathing hole in ice for fish | Diffused |
| Electrical safety | Pump is submerged; GFCI outlet required | No submerged electrical components; compressor is on shore | Diffused |
| Aesthetic value | Decorative spray or fountain display | No surface visual effect; only subtle bubble turbulence | Surface |
| Sediment reduction | Minimal effect on bottom sediment | Accelerates aerobic decomposition of bottom muck over time | Diffused |
| Off-grid suitability | Good; solar surface aerators are widely available | Good; solar-powered compressors available, especially for Prairie locations | Equal; both have solar options |
● ● ●
Decision guide
Which system is right for your Canadian pond?
The choice between surface and diffused aeration is not a matter of brand preference or budget alone. It comes down to three questions about your pond. Answer these in order and the right system becomes clear.
01
What is the average depth of your pond?
This single question resolves the choice for the majority of Canadian pond owners
If your pond has an average depth of 6 feet or less, a surface aerator sized correctly for your area is the right choice. It will fully circulate the water column, prevent stagnation, and provide adequate oxygenation for a healthy fishless pond or a lightly stocked shallow fish pond. You do not need the added complexity and cost of a diffused system for this pond type.
If your pond has an average depth greater than 6 feet, a diffused bottom aeration system is the right choice, and no size of surface aerator is an adequate substitute. The bottom water in a pond over 6 feet deep becomes thermally and chemically isolated from the surface within days of calm, warm weather. Only a bottom-up system can address this consistently.
Under 6 ft average depth: Surface aerator Over 6 ft average depth: Diffused aeration system 5 to 7 ft with fish: Choose diffused aeration
If average depth answers the question, choose based on this
- Under 6 ft and no fish: surface aerator is sufficient and more cost-effective
- Under 6 ft with fish: surface aerator is adequate; consider diffused if depth is near 5 to 6 ft
- Over 6 ft regardless of fish load: diffused aeration system is required
02
Do you have fish in your pond?
Fish increase oxygen demand and lower the depth threshold for diffused aeration
A fishless decorative pond in the 4 to 6 foot depth range is a reasonable candidate for surface aeration. The pond does not have a living oxygen demand beyond plant and bacterial activity, and the visible algae reduction from surface aeration is often all the improvement needed.
A pond with fish changes the calculation significantly. Fish consume dissolved oxygen continuously and excrete ammonia, which adds to the nutrient and biological load. In a pond with any fish stocking, even at 5 feet of depth, the risk of nighttime oxygen depletion during a hot Canadian summer is meaningful. For any fish pond at or above 5 feet deep, diffused aeration provides a meaningfully greater safety margin than surface aeration and is the recommended choice.
No fish, under 6 ft: Surface aerator is sufficient Fish present, under 5 ft: Surface aerator is adequate Fish present, 5 ft or deeper: Diffused aeration strongly preferred Trout specifically: Always use diffused aeration regardless of depth
Trout ponds
Trout require dissolved oxygen levels above 7 mg/L to thrive and begin to experience stress below 6 mg/L. No other common Canadian pond fish is as sensitive to dissolved oxygen as trout. If you are stocking trout in any pond deeper than 4 feet, a diffused aeration system is not optional. Trout held in ponds with marginal oxygen levels develop suppressed immune function and become susceptible to disease even when they appear to be swimming normally.
03
Does your pond have a history of algae blooms or foul odour?
Chronic water quality problems in any depth pond point toward diffused aeration
A pond that repeatedly develops green algae blooms, blue-green algae (cyanobacteria), or a noticeable rotten-egg smell regardless of depth is showing signs of anaerobic bottom conditions. The decomposing sediment at the pond floor is releasing phosphorus, which feeds algae. It is also producing hydrogen sulphide, which causes the odour. These are symptoms of a bottom-layer oxygen problem that surface aeration cannot reach.
Even a relatively shallow pond of 5 to 6 feet can develop anaerobic bottom pockets if it has a thick layer of accumulated sediment and limited natural circulation. In these situations, a diffused aeration system that circulates the full water column and speeds up aerobic decomposition of the bottom muck is the appropriate long-term solution. Surface aeration in this scenario will improve the top layer while the problem continues to develop at the bottom.
Recurring green algae: Likely needs diffused aeration Blue-green algae (cyanobacteria): Strong indicator of anaerobic bottom Rotten-egg smell: Hydrogen sulphide from anaerobic sediment Murky water that does not clear: High nutrient and sediment load
🌿 If your pond is under 6 feet deep and you already have a surface aerator running but still experience algae blooms or odours each summer, the issue is almost certainly anaerobic bottom sediment. Upgrading to a diffused system is the most effective single step you can take. Combine it with a beneficial bacteria treatment program in spring for the fastest improvement.
● ● ●
Combining systems
Can you use both surface and diffused aeration together?
Yes, and in certain situations it is the optimal approach. Running both a surface aerator and a diffused system simultaneously is most useful in large ponds over 2 acres where a single diffused system may not achieve full circulation, or in ponds where the visual benefit of a fountain aerator is desired without sacrificing the bottom-up oxygenation of a diffused system.
In a combined setup, the diffused system handles the primary aeration work: destratification, bottom sediment treatment, and full-column oxygenation. The surface aerator provides supplemental surface agitation and the decorative spray effect. This approach is common in larger residential pond installations in Ontario and BC where property owners want both optimal water quality and an attractive water feature.
For most Canadian ponds under 2 acres, a properly sized single system of the correct type will be fully adequate. A combined setup is a performance enhancement rather than a necessity in those cases.
Pro tip
If you are adding a surface aerator to an existing diffused system for aesthetics, choose a model that operates at a flow rate well below the diffused system's output. The goal is visual enhancement, not additional oxygen transfer capacity. Oversizing the surface component in a combined setup can create unnecessary turbulence that disturbs spawning areas for bottom-feeding fish.
● ● ●
Cost comparison
Surface vs. diffused aeration: upfront and ongoing costs in Canada
Cost should not be the deciding factor between these two systems, but it is a real consideration. Here is a realistic breakdown of what each system type costs to buy, install, and maintain over a typical 5-year period in a Canadian pond.
| Cost Category | Surface Aerator | Diffused Aeration System |
|---|---|---|
| Equipment purchase (1/2 acre pond) | $300 to $700 CAD for a 3/4 to 1 HP unit | $600 to $1,400 CAD for a compressor and single diffuser kit |
| Installation materials | Minimal; anchor weight and cord stakes only | $50 to $150 for airline, clamps, and compressor shelter materials |
| Annual electricity cost | $30 to $80 per season (May to October) | $40 to $120 per season depending on compressor size |
| Annual maintenance parts | Impeller kit every 2 to 3 years: approx. $30 to $60 | Compressor diaphragm or filter annually: approx. $30 to $80 |
| Replacement schedule | Pump unit every 3 to 6 seasons: approx. $300 to $600 | Diffuser discs every 3 to 5 years: approx. $80 to $150; compressor lasts 5 to 10 years |
| 5-year total cost estimate | $500 to $1,100 CAD | $900 to $2,000 CAD |
The cost difference between the two systems narrows considerably over a 5-year period. Surface pumps require full replacement every few seasons, while a quality diffused compressor can run for a decade with annual maintenance. For ponds where diffused aeration is the right technical choice, the long-term cost premium over surface aeration is modest relative to the improvement in water quality and fish health.
● ● ●
Surface vs. diffused decision checklist
Work through this checklist before purchasing any aeration system for a Canadian pond
Depth assessment
- Average pond depth measured at a minimum of 5 points across the pond
- Average depth confirmed as above or below the 6 ft threshold
- If average depth is 5 to 7 ft and fish are present, diffused aeration selected
Fish and water quality assessment
- Fish species and approximate stocking density noted
- Trout present: diffused aeration selected regardless of depth
- Recurring algae blooms or pond odour noted: diffused aeration selected
- Fishless decorative pond under 6 ft: surface aeration confirmed as sufficient
Practical considerations
- Shore power availability confirmed for electric systems
- Compressor shelter location identified if diffused system selected
- Distance from shore to pond centre measured for airline length planning
- Winter plans noted: surface aerators must be removed before freeze-up
- Budget reviewed against 5-year cost estimate for chosen system type
If combining both systems
- Diffused system sized first for the primary aeration requirement
- Surface aerator sized for aesthetic purpose only, not aeration capacity
- Surface aerator placement chosen to avoid disturbing fish spawning areas
● ● ●
Common questions answered
Frequently asked questions about surface vs. diffused aeration
Q
My pond is exactly 6 feet deep. Which system should I choose?At exactly 6 feet, the decision comes down to whether you have fish. For a fishless ornamental pond at 6 feet, a well-sized surface aerator will provide adequate oxygenation and is the more cost-effective choice. For any pond with fish at 6 feet of average depth, diffused aeration is the better option. A surface aerator at this depth will oxygenate the top 4 to 5 feet adequately, but the bottom foot or two will experience periodic oxygen depletion during hot summer nights, which is enough to cause fish stress even if it never triggers a visible kill event.
Q
I already have a surface aerator installed. How do I know if I should upgrade to diffused?The clearest signs that your surface aerator is not providing sufficient aeration are fish gulping at the surface in the early morning hours, recurring algae blooms despite consistent operation, a persistent rotten-egg smell from the pond in summer, and murky or discoloured water that does not improve through the season. If any of these are present and your pond is deeper than 5 feet, upgrading to diffused aeration is the most impactful change you can make. Adding more surface aerators will not resolve problems caused by bottom-layer oxygen depletion.
Q
Does diffused aeration make a pond look unattractive?Diffused aeration creates a subtle rippling or gentle bubbling at the surface above each diffuser disc, but it does not produce a dramatic visual effect. The pond surface looks calm and natural compared to a fountain or spray aerator. Many pond owners find this appearance preferable, particularly in naturalistic pond designs. If you want a visible water feature element alongside your diffused system, adding a small decorative fountain or spillway separately is straightforward. Many Canadian pond owners run a diffused system for water quality and a small solar fountain for aesthetics simultaneously.
Q
Is a diffused system harder to install than a surface aerator?Diffused systems require more planning but most installations are within DIY range. The additional steps compared to a surface aerator are identifying a suitable location for the compressor cabinet on shore, running the weighted airline from the cabinet to the pond edge, and placing the diffuser disc at the deepest point. For a pond under 1 acre with a single diffuser head, installation typically takes 2 to 4 hours. For larger ponds with multiple diffuser heads, a second person is helpful for placing discs at depth. No underwater electrical connections are made; the only electrical connection is the compressor plug at the shore outlet.
Q
Can I use a diffused aerator in a small backyard pond?Yes, small diffused aeration kits are available for ponds as small as 500 square feet. For a small backyard pond under 4 feet deep with no fish, the added cost and complexity is generally not justified and a surface or fountain aerator is more practical. However, for a small but deep backyard pond, such as a 15-foot diameter pond that is 8 feet deep for koi, a small diffused system is appropriate and the installation footprint on shore is minimal. The compressor for a small residential diffused system is roughly the size of a shoebox and produces very little noise.
