Pond Aerators & Lake Aeration Systems

Pond aerators and lake aeration systems raise dissolved oxygen, break up thermal stratification and keep water circulating — the three things that prevent algae blooms, muck build-up and winter fish kill in Canadian ponds. Fountain Depot has sized, installed and serviced pond aeration systems for over 50 years from our Markham, Ontario shop, and ships across Canada.

Which pond aeration system is right for your pond?

The decision comes down mostly to depth.

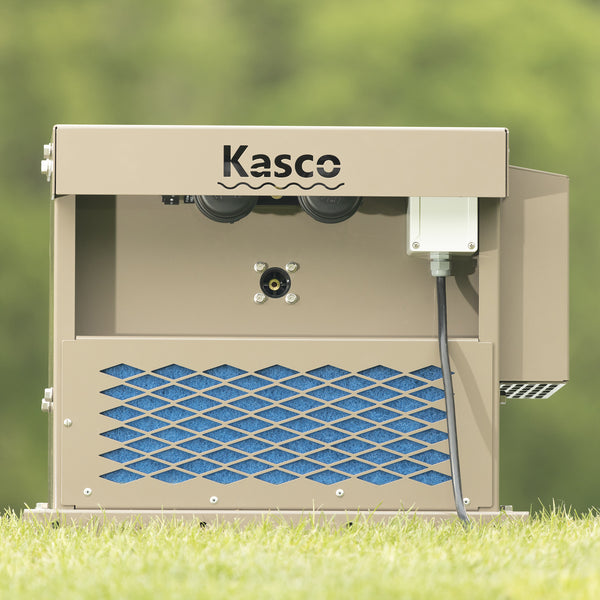

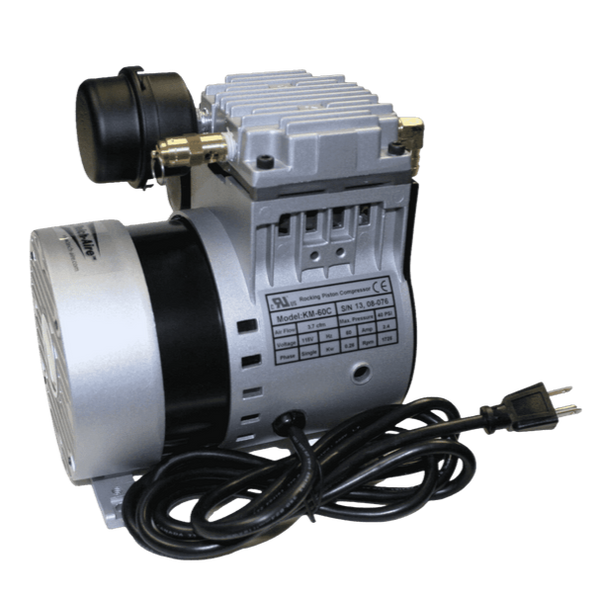

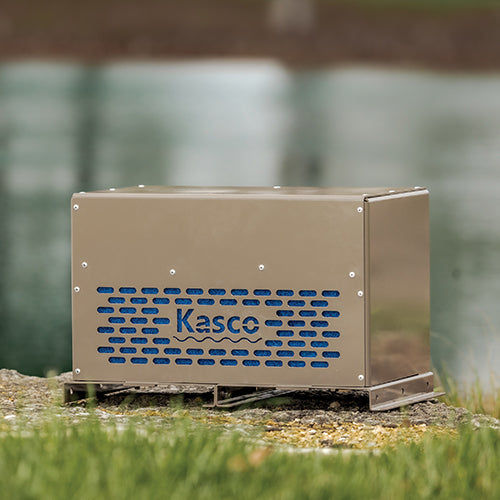

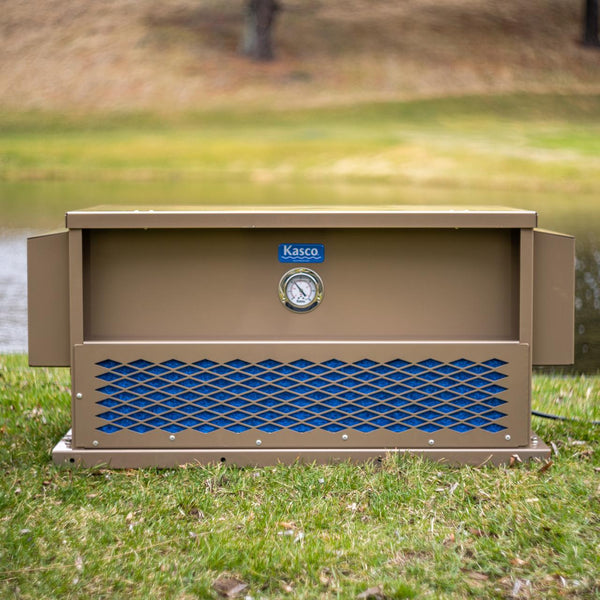

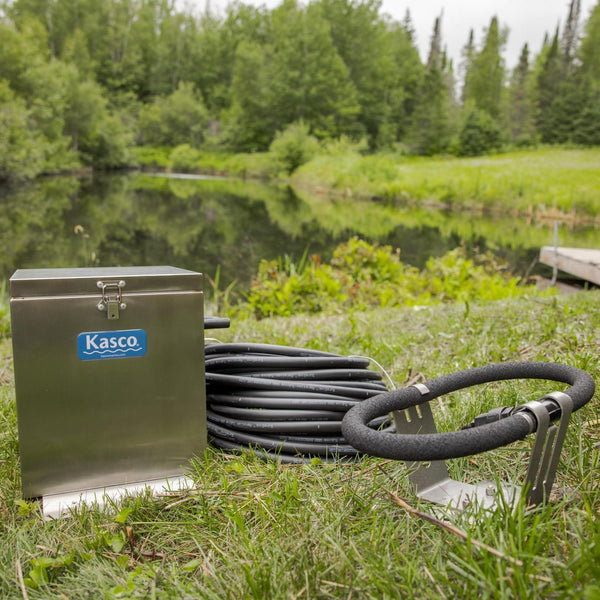

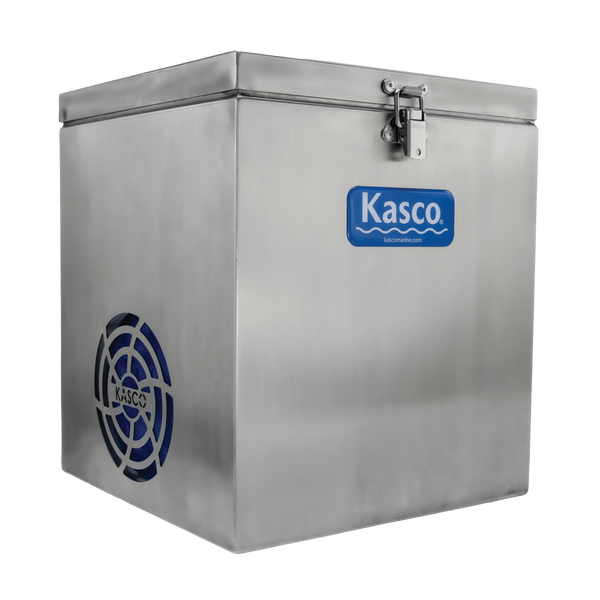

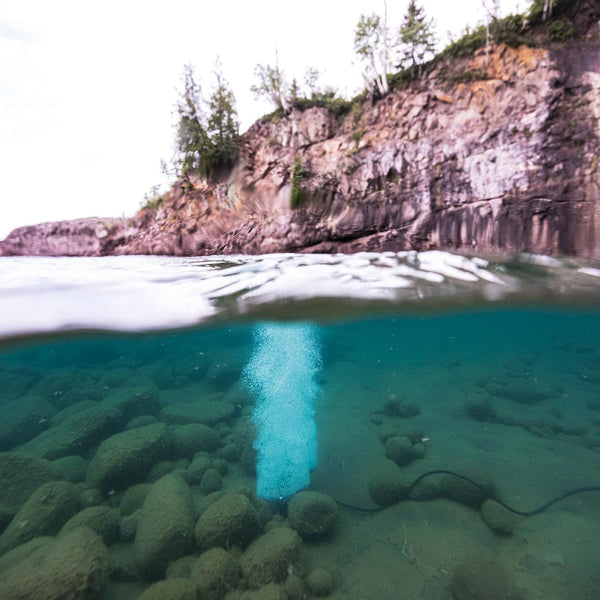

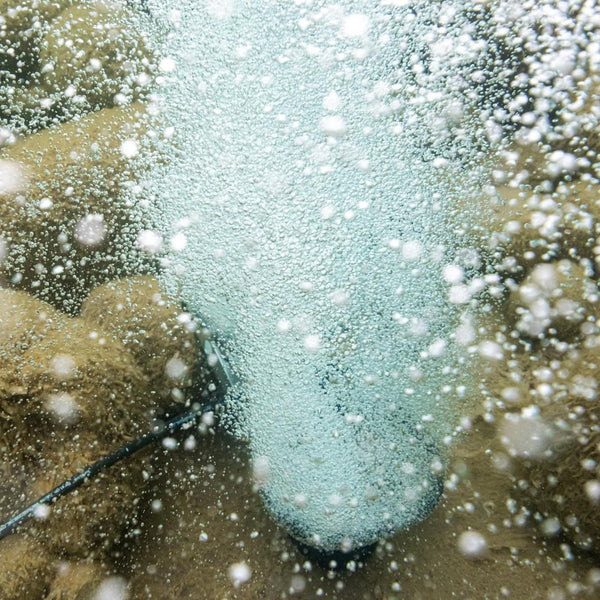

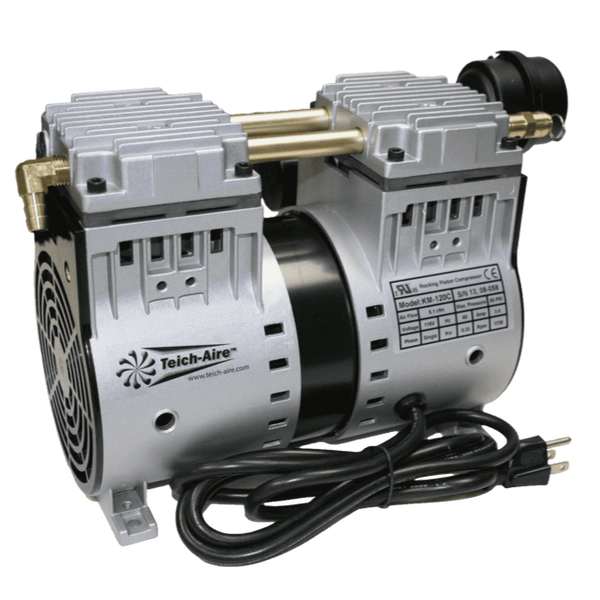

• Diffused aeration — the best choice for ponds deeper than about 8 feet. A shore-mounted compressor pushes air through weighted tubing to diffusers resting on the pond bottom. Rising bubbles lift cold, oxygen-poor water to the surface where it can exchange gas. This delivers the most oxygen per watt of any method. Browse diffused aeration systems, RobustAire systems and piston compressors.

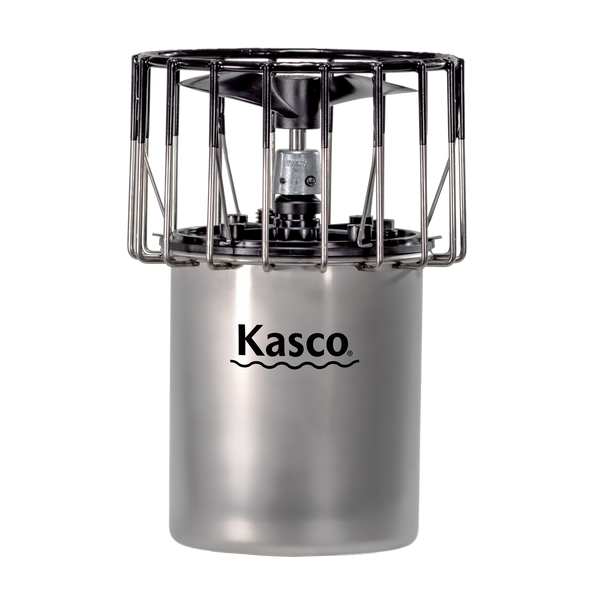

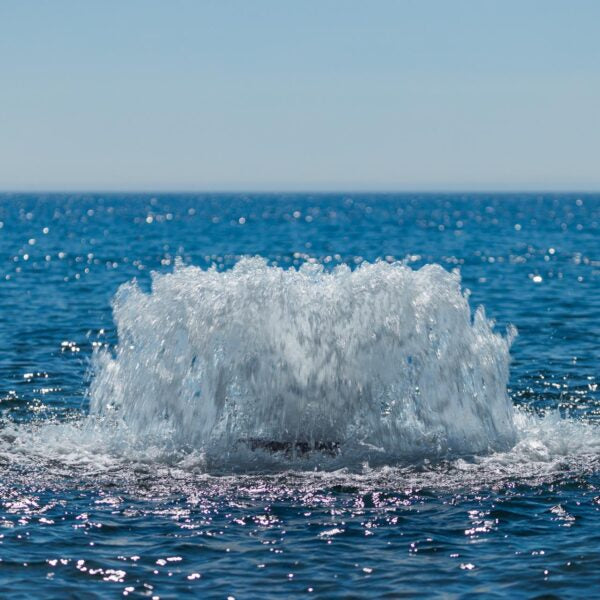

• Surface aerators — the right call for ponds under roughly 8 feet, lagoons, and wastewater treatment. A floating unit draws water up and throws it into the air. Kasco AF and HAF units are rated up to 3.0 lbs of oxygen per horsepower per hour (Auburn University standard aeration efficiency testing). See Kasco surface aerators.

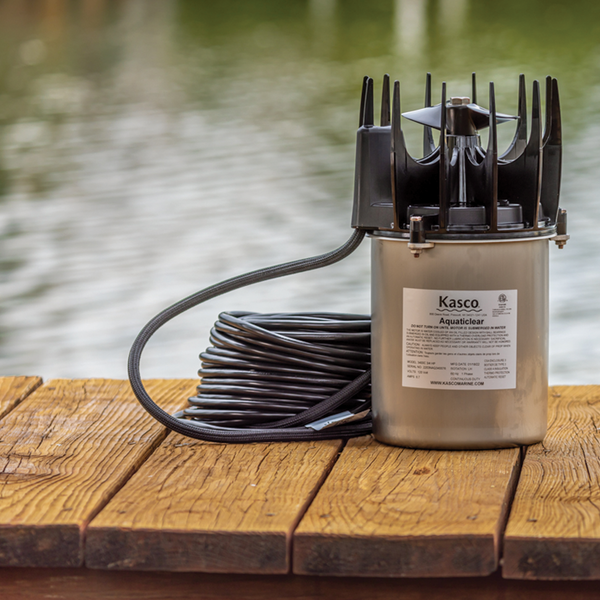

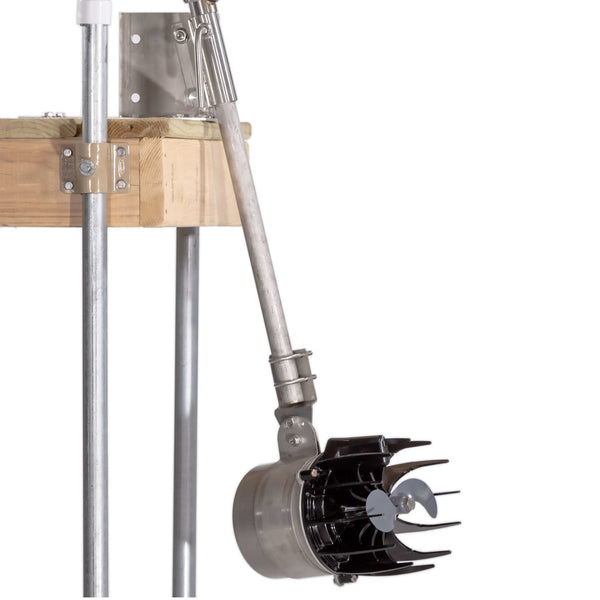

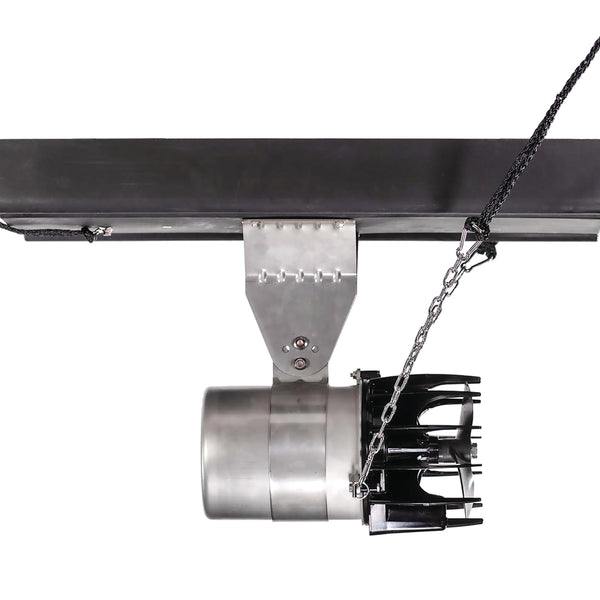

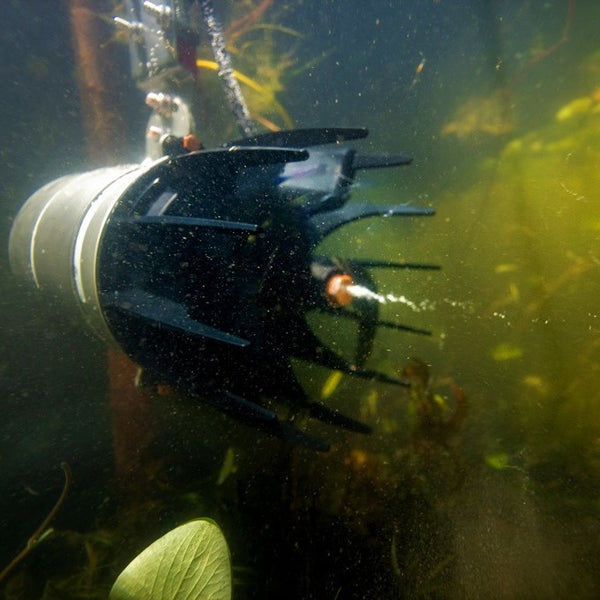

• Circulators — move large volumes of water horizontally rather than aerating directly. Used to clear stagnant corners, push debris away from docks and prevent ice formation. See pond circulators and dock bubblers.
• Aerating fountains — decorative spray patterns that also transfer meaningful oxygen. The right pick when appearance matters as much as water quality. See floating pond fountains.

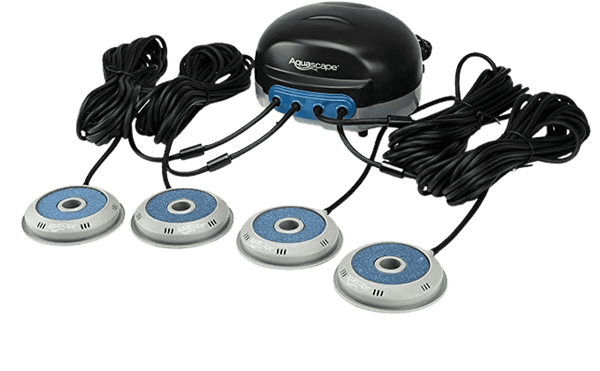

• Pond aerator pumps — small diaphragm and linear air pumps for backyard ponds and water features. See pond aerator pumps.

Minimum operating depth — Kasco AF series

Surface aerators need a minimum water depth to run safely. Manufacturer-confirmed figures:

• 2400AF (1/2 HP, 120V) — 15" minimum depth, 5.7 running amps, rated to roughly 1/2 acre
• 3400AF (3/4 HP, 120V) — 17.5" minimum depth, 6.7 running amps
• 4400AF (1 HP, 120V) — 19" minimum depth, 9.1 running amps
• 8400AF (2 HP, 240V) — 20" minimum depth, 9.0 running amps

All AF units ship with a float and two 50' mooring lines, are ETL listed to UL and CSA standards, and carry a sacrificial zinc anode for freshwater or saltwater use.

A note on three-phase power

Kasco model suffixes are easy to misread. A .1 model (3.1, 5.1) is 240V single phase — so 3 HP and 5 HP units will run at farms and rural sites without three-phase service. A .3 model is genuinely three-phase and includes a CA-3235 control panel in the box. Browse Kasco control panels.

Common questions

How big an aerator do I need for a 1 acre pond?

For a pond under 8 feet deep, a 1 HP surface aerator such as the Kasco 4400AF covers roughly one acre. For deeper water, a diffused system with two or three diffusers will generally outperform a surface unit of the same horsepower. Pond shape and inlet flow both matter, so send us your dimensions.

Should an aerator run year-round?

Through spring, summer and fall, yes. In winter, running a bottom diffuser in a deep pond can strip the warm layer fish rely on. Most Canadian ponds are better served by moving the diffuser to shallower water or switching to a de-icer.

Does aeration reduce algae?

Indirectly, and reliably. Aeration lets beneficial bacteria break down the organic sludge that feeds algae, and it stops the stagnation blooms depend on. It works best paired with pond water treatments — aeration makes treatments work considerably better.

Not sure what to order? Email info@fountaindepot.com or call 1-855-752-5795 with your pond size, maximum depth and distance to the nearest power source, and we will size it for you. Further reading: Complete Guide to Pond Aeration Systems in Canada and Surface Aerator vs. Diffused Aeration.
