Aqua Control Evolution Series Floating Fountain - Tornado
Aqua Control Evolution Series Floating Fountain - Tornado
In stock
Starting Price:
Regular price $3,416.49 CAD
Regular price
Sale price
$3,416.49 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
QUICK OVERVIEW

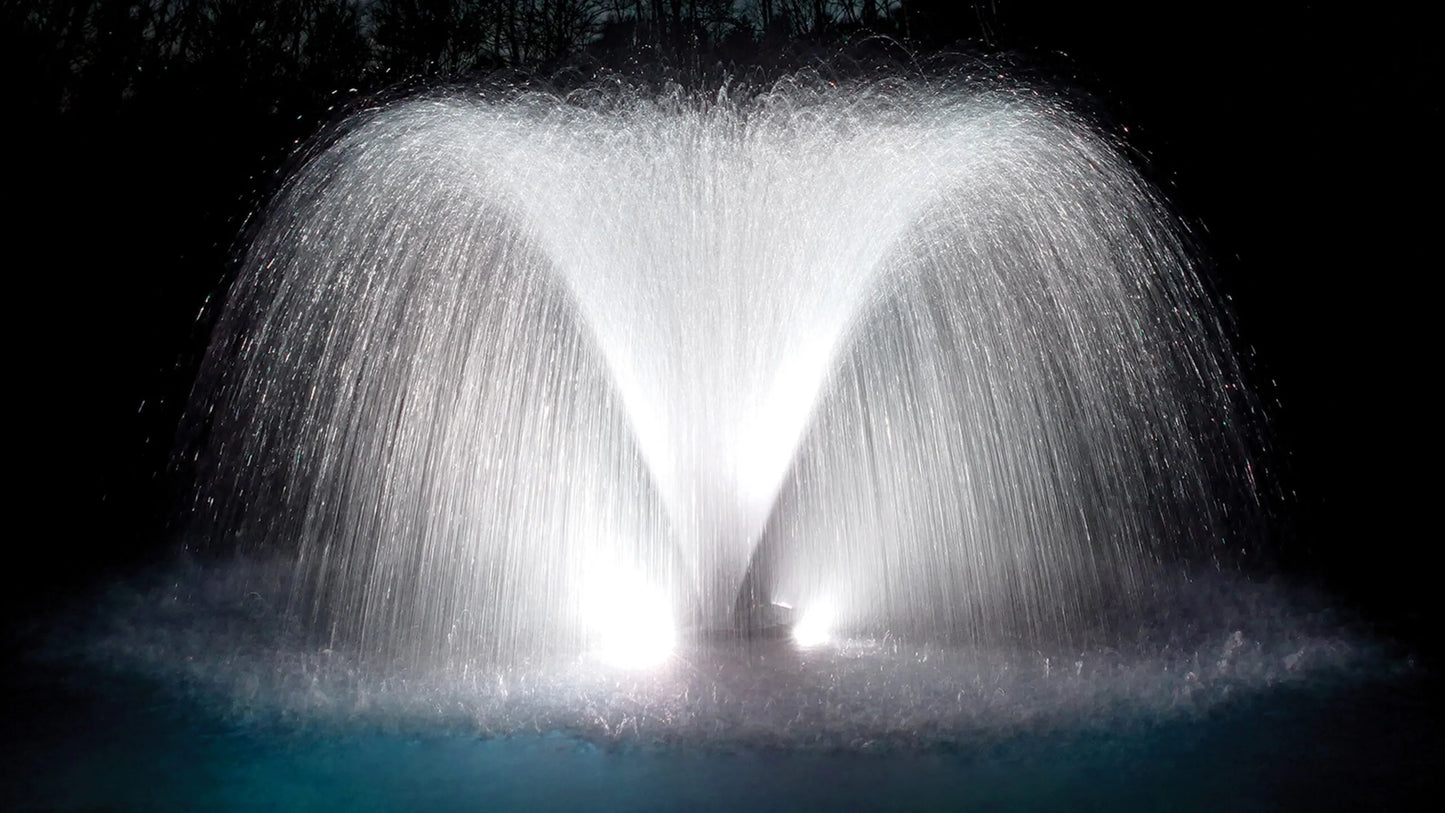

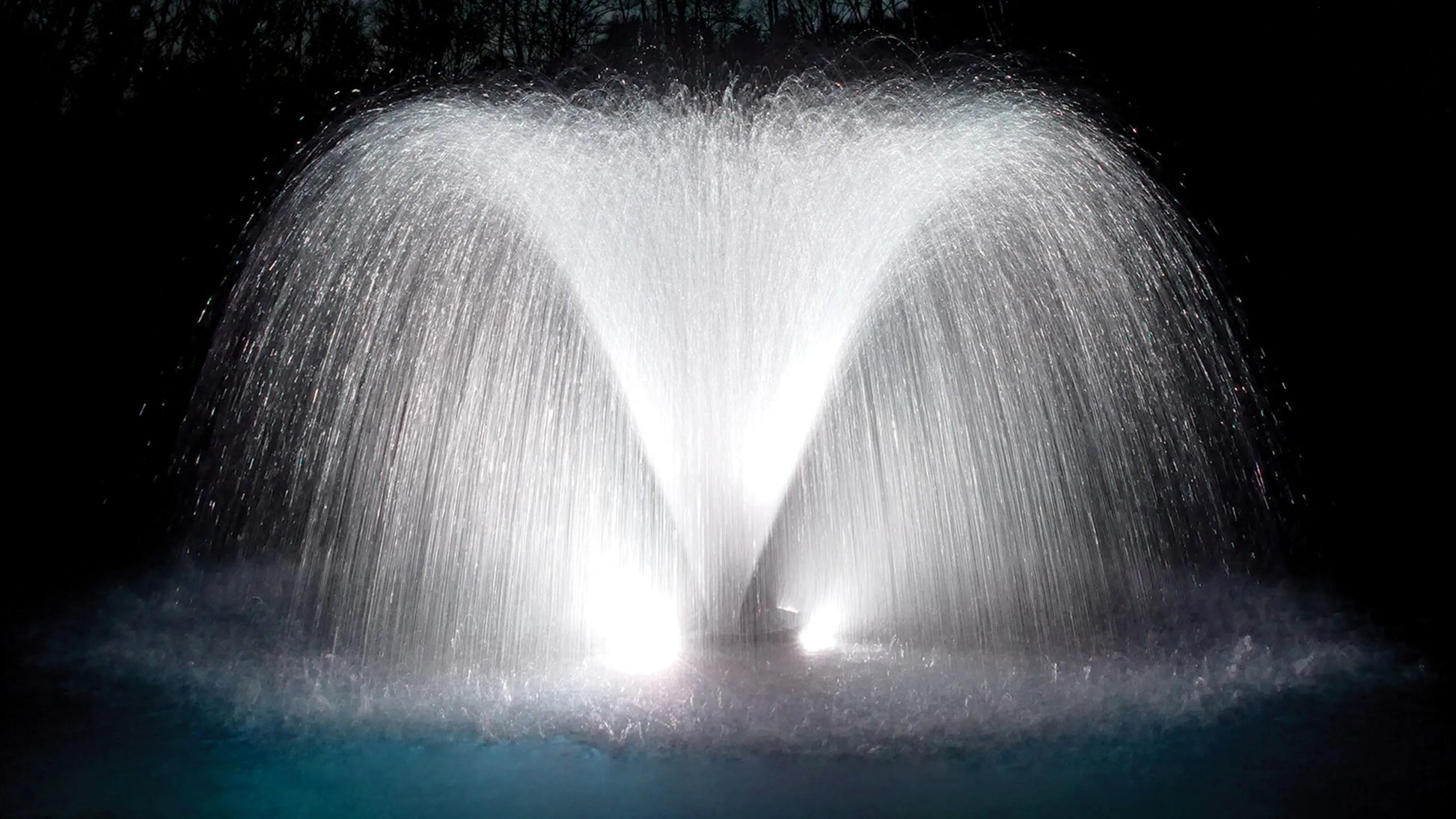

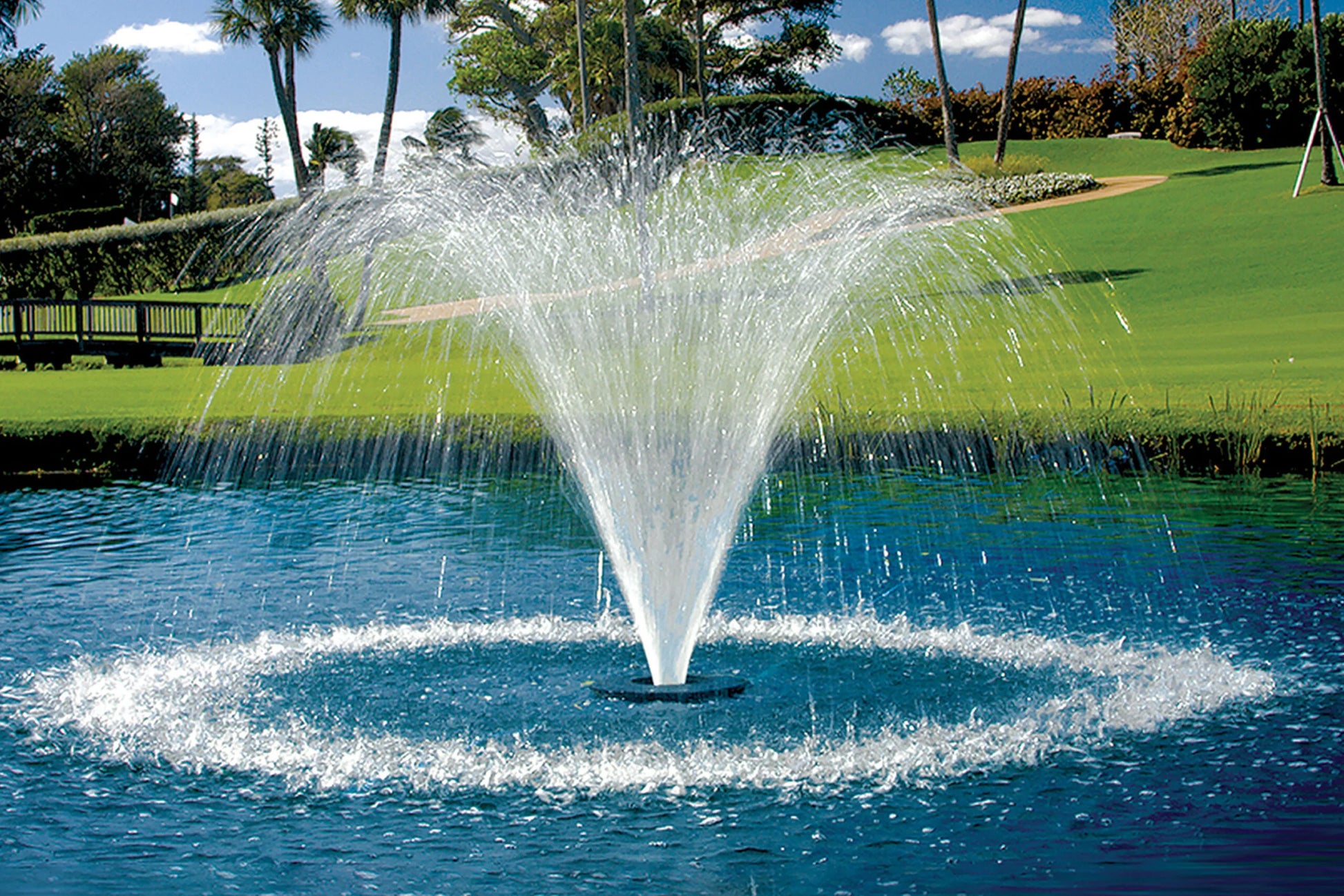

Aqua Control Evolution Series floating fountains are compact decorative units designed for smaller ponds and landscape water features. The Tornado pattern creates an attractive conical spray pattern that moves large amounts of water, combining visual appeal with the circulation benefits of a floating fountain platform.
Warranty
2-Year Limited Warranty
- Applies to Aqua Control Evolution Series Fountain units
- Covers defects in materials and workmanship for 2 years
- Designed for decorative fountain applications with standard residential and commercial duty cycles
Coverage Conditions
- Valid under proper installation, proper voltage, and correct operating conditions
- Operation with no flow, partial flow, or obstructions that cause cavitation can void warranty
- Unauthorized repair or modification will void coverage
Important Notes
- The manufacturer does not accept responsibility for installation, removal, inspection, freight, or reinstallation costs
- Freezing, misuse, lightning, and improper electrical connection are excluded conditions
- Follow Aqua Control installation and maintenance instructions to preserve coverage
Warranty coverage is based on current Aqua Control Evolution Series warranty information. Refer to the latest official Aqua Control documentation for complete terms and exclusions.
Components Included
Fountain Pump Assembly
- High-efficiency motor and pump system
- Engineered for continuous operation
- Supports decorative and aeration performance

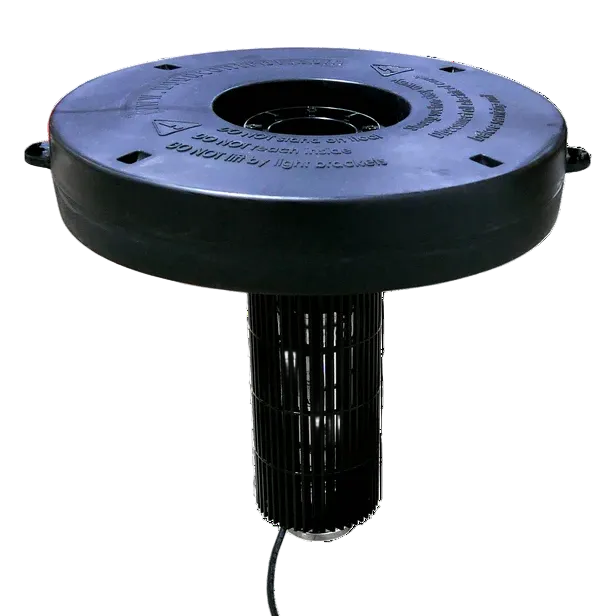

Float & Mooring System
- Heavy-duty floating platform
- Mooring lines for secure positioning
- Stable performance in open water
Nozzle & Display System
- Pattern-specific nozzle assembly
- Precision spray formation
- Optional lighting compatibility available
Included components vary based on horsepower and selected spray pattern. Lighting systems and control panels are typically configured separately depending on project requirements.
Technical Specifications
| Pattern | Spray Height | Spray Diameter | Flow Rate (GPM) | Min Depth | Visual Type |
|---|---|---|---|---|---|
| Arum | 6 ft | 21 ft | ~90 GPM | 20 in | Elegant / Vertical |
| Cluster Arch | 6 ft | 16 ft | ~90 GPM | 20 in | Layered Arch |
| Fleur de Lis | 7 ft | 18 ft | ~90 GPM | 20 in | Classic Decorative |
| Metro | 6 ft | 8 ft | ~90 GPM | 20 in | Modern / Structured |
| Spider & Arch | 5.5 ft | 18 ft | ~90 GPM | 20 in | Dynamic Multi-Pattern |
| Tiara | 7 ft | 15 ft | ~90 GPM | 20 in | Symmetrical Crown |
| Tornado | 6 ft | 15 ft | 134 GPM | 20 in | Full Conical Spray |
| Torrent | 1–1.5 ft | 3 ft | 165 GPM | 20 in | Boil / Aeration Focus |
Base Fountain System Specifications
| Specification | Details |
|---|---|
| Motor | 1/2 HP, Single Phase |
| Voltage | 115–120V |
| Amperage | ~7 Amps |
| Wattage | ~805 Watts |
| Flow Rate | 134–165 GPM (pattern dependent) |
| Minimum Operating Depth | 20 inches |
| Pond Size Recommendation | Up to 1/2 acre |
| Included Patterns | Tornado & Torrent (others optional) |
| Control Panel | GFCI + Timer + Photocell included |
| Cable Length Options | 50 ft – 200 ft |
| Warranty | 2 Years |
Aqua Control Evolution Series fountains combine decorative display and aeration. Spray pattern selection directly affects visual height, width, and water movement performance.
Specifications are based on Aqua Control manufacturer data. Spray dimensions and flow rates vary by pattern and installation conditions. Optional nozzle kits expand available display styles beyond standard configurations.
Aqua control service manual chapter evolution series instructions.pdf
Model Options
The Aqua Control Evolution Series offers a variety of decorative spray patterns designed to match different visual styles, pond sizes, and project requirements.
Vertical & Geyser Styles
- Torrent – Strong vertical column display
- Tornado – Twisting vertical pattern
- Metro – Clean, modern vertical display
Classic Decorative Patterns
- Fleur de Lis – Elegant multi-tiered spray
- Tiara – Crown-style symmetrical display
- Arum – Smooth rounded plume effect
Complex Multi-Arc Designs
- Spider & Arch – Wide arching streams
- Cluster Arch – Multiple arc groupings designed for large visual coverage
Key Features
Premium Decorative Displays
- Multiple signature spray patterns available
- Designed for high visual impact
- Enhances ponds, lakes, and commercial landscapes
High-Performance Pump System
- Engineered for efficient water movement
- Supports both aeration and aesthetics
- Consistent spray performance across patterns
Durable Floating Design
- Heavy-duty float platform
- Built for long-term outdoor operation
- Corrosion-resistant construction
