Aqua Master - 35W LED Lights 6 Fixtures
Aqua Master - 35W LED Lights 6 Fixtures
In stock
Starting Price:
Regular price $5,477.60 CAD
Regular price
Sale price
$5,477.60 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
QUICK OVERVIEW

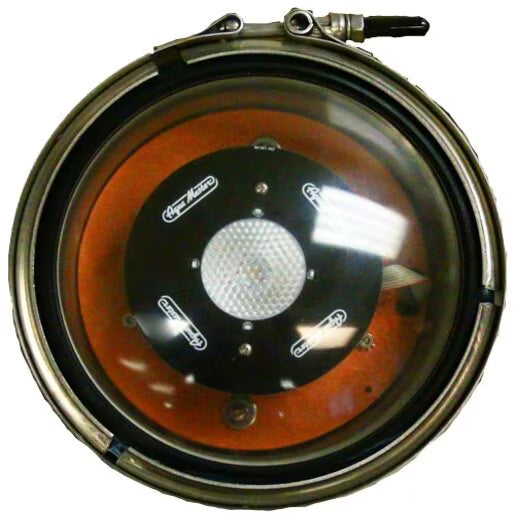

LED Light Kit: 6 fixture, 35W LED light package for AquaMaster Masters Series and Horizontal Masters Series (1–5HP). Includes light fixtures with brackets + 50 ft 14/3 3-Pin ALC cable assembly. Options include selecting the 35W color board and total cable length (50–200 ft). One color board assembly (CBA) is required per fixture, and pricing is automatically calculated.
Warranty
Coverage
- AquaMaster LED lighting systems include manufacturer warranty protection
- Designed for long-term outdoor and underwater operation
- Coverage applies to defects in materials and workmanship
Service Requirements
- Installation must follow AquaMaster guidelines
- Use approved components and connections
- Routine maintenance required for optimal performance
Important Conditions
- Warranty terms may vary based on configuration
- Improper installation may void coverage
- Refer to official AquaMaster documentation for full details
Warranty coverage may vary depending on system configuration and installation conditions. Always confirm with the latest AquaMaster warranty documentation.
Components Included
LED Fixture System
- 2–8 LED fixtures depending on selected kit
- 35W per fixture
- Fully sealed underwater construction
Mounting & Connection
- Mounting hardware for fountain installation
- Power cable system for submersible use
- Configured for easy installation and service
Lighting Performance
- Wide illumination coverage around fountain spray
- Designed for even light distribution
- Compatible with AquaMaster lighting controls
Components vary based on fixture count and configuration. Control panels and advanced lighting controls may be configured separately depending on project requirements.
Technical Specifications
| Specification | Details |
|---|---|
| Wattage | 35W LED per fixture |
| Fixture Configurations | 2, 3, 4, 6, or 8 fixtures |
| Construction | Series 300 stainless steel submersible fixtures |
| Voltage | 120V or 220V systems |
| Light Output | Up to ~3,900 lumens per fixture (cool white) |
| Color Options | Cool white, warm white, red, green, blue, amber |
| Rated Life | Approx. 40,000 hours |
| Controls | GFCI protection, timer, optional controller / sequencer |
AquaMaster 35W LED lighting systems are designed for durable underwater performance, delivering consistent illumination and long service life across a wide range of fountain sizes.
Ledlightingspecs .pdf
Model Options
Compact Lighting Kits
- 2 Fixtures – entry-level lighting
- 3 Fixtures – balanced small fountain lighting
- Best for smaller displays or accent lighting
Standard Lighting Kits
- 4 Fixtures – most common setup
- 6 Fixtures – stronger coverage and brightness
- Ideal for mid-size fountains
High-Output Lighting
- 8 Fixtures – maximum illumination
- Designed for large fountains and wide spray patterns
- Delivers full 360° lighting coverage
Key Features
High-Output LED Illumination
- 35W LED fixtures designed for fountain lighting
- Bright, consistent underwater illumination
- Enhances nighttime visibility and display impact
Durable Submersible Design
- Fully sealed underwater LED fixtures
- Corrosion-resistant stainless steel construction
- Built for continuous outdoor use
Flexible Lighting Configurations
- Available in 2, 3, 4, 6, and 8 fixture kits
- Scalable brightness based on fountain size
- Compatible with AquaMaster floating fountains
