Aquascape

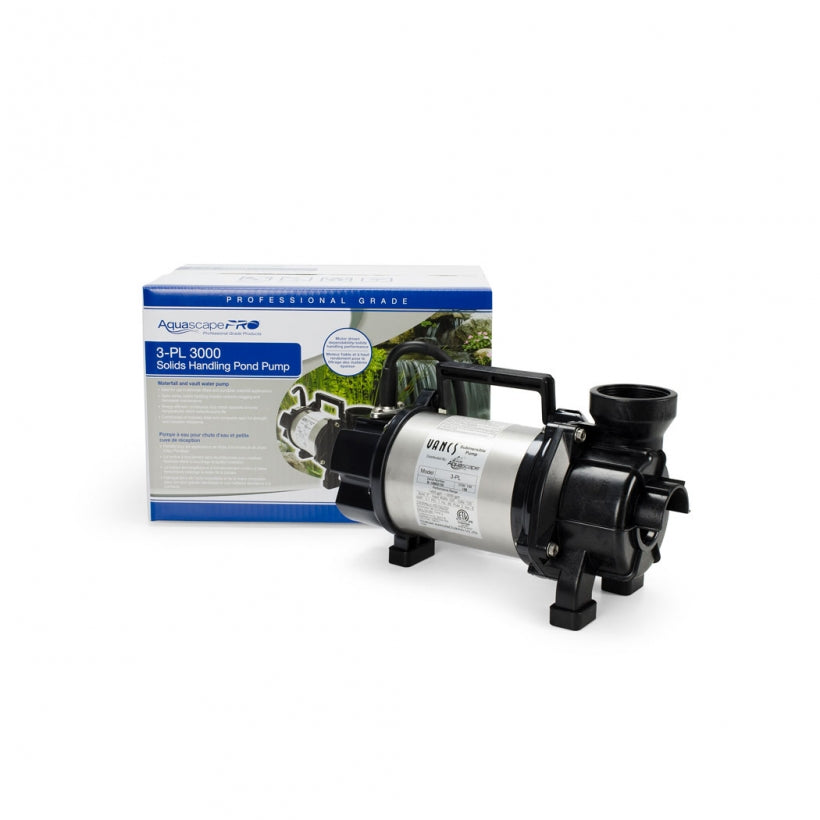

PL and PN Solids-Handling Pond Pump
PL and PN Solids-Handling Pond Pump
In stock
Starting Price:
Regular price $799.99 CAD
Regular price
Sale price
$799.99 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
QUICK OVERVIEW
Aquascape PL and PN solids-handling pond pumps are submersible pumps built to move debris-laden water in ponds, waterfalls, and filtration systems. Designed for continuous operation, these pumps are suited to applications where strong flow and dependable solids-handling performance are essential.
Warranty
Manufacturer Coverage
- Covered under the manufacturer warranty for the applicable Aquascape product family
- Applies to defects in materials and workmanship under normal use
- Designed for continuous water feature operation when installed correctly
Service Requirements
- Follow the installation and operation guidance supplied by the manufacturer
- Use the product only in the intended application and environment
- Keep purchase records for registration and service support
Important Conditions
- Warranty terms vary by Aquascape product family and model
- Misuse, freezing damage, dry running, or improper installation may affect coverage
- Refer to the latest Aquascape warranty and support documentation for full terms
Aquascape publishes warranty information by product family. Confirm the exact family warranty if you want the duration shown in the public metafield.
Components Included
Pump or Compressor Assembly
- Primary motor and operating assembly based on the selected product family
- Designed for continuous-duty or routine water-feature use depending on model
- Supports reliable flow or air delivery performance
Connection System
- Power cord, air outlet, inlet, fittings, or plumbing connection points depending on model
- Designed for integration into pond, waterfall, or aeration systems
- Supports practical installation and service access
Application Hardware
- Protective housings, cages, cabinets, or family-specific accessories may apply depending on product type
- Supports stable operation and long-term system performance
- Configured according to the selected model family
Included components vary by selected model, flow range, or compressor size. Mounting, control, and plumbing accessories may be configured separately.
Technical Specifications
| Model | 3PL | 5PL | 9PL | 8PN | 12PN |
|---|---|---|---|---|---|
| Item Number | 29975 | 29976 | 29977 | 29495 | 30391 |
| Maximum Flow Rate (GPH) | 3,000 | 5,300 | 7,300 | 5,548 | 10,000 |
| Maximum Head Height | 14 feet | 23 feet | 35 feet | 56 feet | 23 feet |
| Motor Type | Direct Drive | Direct Drive | Direct Drive | Direct Drive | Direct Drive |
| Wattage | 330 | 620 | 1000 | 1000 | 900 |
| Amperage | 3.2 | 5.6 | 8.6 | 9.1 | 9.1 |
| Power Cord Length | 20 feet | 20 feet | 20 feet | 20 feet | 20 feet |
| Pump Discharge Diameter | 2 inch | 2 inch | 2 inch | 2 inch | 3 inch |
| Ideal Pipe Diameter | 1.5 or 2 inch | 2 or 3 inch | 2 or 3 inch | 2 or 3 inch | 3 inch |
| Pump Dimensions | 11.7 × 5.6 × 7.1 inches (LxWxH) |
13.2 × 5.9 × 7.3 inches (LxWxH) |
14 × 5.9 × 7.3 inches (LxWxH) |
9.3 × 6.4 × 15 inches (LxWxH) |
11.7 × 7.7 × 15.1 inches (LxWxH) |
| Warranty (Limited) | 2 years | 2 years | 2 years | 2 years | 2 years |
The ProLine direct-drive pump series is designed for high-flow pond, waterfall, and filtration applications. Models with higher head capabilities are ideal for long plumbing runs, larger waterfalls, and demanding water feature installations.
Aquascape pl solids handling pumps .pdf
Model Options
Available configurations and product variants differ by the specific family shown below.
Pump Family Options
- Available in multiple flow capacities depending on the product family
- Choose the model based on feature size, required flow, and debris-handling needs
- Suitable for pond, waterfall, and filtration applications
Installation Configurations
- Designed for submerged or direct-use operation depending on model
- Supports common pond and water feature plumbing layouts
- Select the configuration that matches system head and installation space
Application Fit
- Smaller models suit compact features and moderate circulation
- Larger models support high-flow waterfalls and broader turnover needs
- Choose based on performance target and system design
Key Features
Efficient Water Movement
- Designed to deliver reliable flow for ponds, waterfalls, and water features
- Supports consistent circulation and water turnover
- Suitable for continuous-duty water movement applications
Durable Operating Design
- Built for wet-environment performance
- Engineered for long-term use in water feature systems
- Designed to balance performance, reliability, and service life
Application Flexibility
- Suitable for ponds, waterfalls, filtration systems, or general water transfer depending on model
- Available across multiple flow ranges and installation needs
- Designed to support both residential and commercial-style water features
