Warranty
Manufacturer Coverage
- Covered by the applicable manufacturer warranty policy for this product family
- Applies to defects in materials and workmanship under normal operating conditions
- Designed to support long-term use when installed and maintained properly
Service Requirements
- Follow manufacturer installation, operation, and maintenance guidance
- Use compatible system components and approved procedures
- Retain product and purchase information for support requests
Important Conditions
- Warranty terms may vary by model, configuration, or component type
- Improper installation, misuse, or unauthorized modification may affect coverage
- Refer to the latest official manufacturer documentation for full warranty details
Where the manufacturer publishes warranty terms by family rather than by individual SKU, confirm the exact product-family document before public publication if you want a specific duration listed.
Components Included
Pump or Compressor Assembly
- Primary motor and operating assembly based on the selected product family
- Designed for continuous-duty or routine water-feature use depending on model
- Supports reliable flow or air delivery performance
Connection System
- Power cord, air outlet, inlet, fittings, or plumbing connection points depending on model
- Designed for integration into pond, waterfall, or aeration systems
- Supports practical installation and service access
Application Hardware
- Protective housings, cages, cabinets, or family-specific accessories may apply depending on product type
- Supports stable operation and long-term system performance
- Configured according to the selected model family
Included components vary by selected model, flow range, or compressor size. Mounting, control, and plumbing accessories may be configured separately.
Technical Specifications
| Model | HFS Pump 1/6 HP | HFS Pump 1/5 HP | HFS Pump 1/4 HP | HFS Pump 1/3 HP | HFS Pump 1/2 HP | HFS Pump 1.0 HP |
|---|---|---|---|---|---|---|
| Item Number | 90101 | 90102 | 90103 | 90104 | 90105 | 90106 |
| UPC | 025033901018 | 025033901025 | 025033901032 | 025033901049 | 025033901056 | 025033901063 |
| Solid Handling Capability | 3/4" | 3/4" | 1 1/8" | 1 3/8" | 1 3/8" | 1 3/8" |
| Flow Rate @ 0 ft Head | 1,860 GPH | 3,000 GPH | 3,270 GPH | 4,800 GPH | 5,904 GPH | 7,200 GPH |
| Flow Rate @ 5 ft Head | 1,600 GPH | 2,604 GPH | 2,769 GPH | 4,140 GPH | 5,460 GPH | 7,200 GPH |
| Flow Rate @ 10 ft Head | 1,308 GPH | 2,250 GPH | 1,925 GPH | 3,270 GPH | 4,800 GPH | 6,600 GPH |
| Flow Rate @ 15 ft Head | 846 GPH | 1,800 GPH | 1,143 GPH | 2,400 GPH | 3,900 GPH | 6,000 GPH |
| Flow Rate @ 20 ft Head | 400 GPH | 1,122 GPH | 240 GPH | 1,638 GPH | 3,120 GPH | 4,800 GPH |
| Flow Rate @ 25 ft Head | — | 530 GPH | — | 546 GPH | 2,040 GPH | 3,720 GPH |
| Flow Rate @ 30 ft Head | — | — | — | — | 1,020 GPH | 2,820 GPH |
| Flow Rate @ 35 ft Head | — | — | — | — | — | 2,160 GPH |
| Flow Rate @ 40 ft Head | — | — | — | — | — | 840 GPH |
| Maximum Head Height | 23 ft | 28 ft | 21 ft | 27 ft | 35 ft | 44 ft |
| Voltage | 120 / 60Hz | 120 / 60Hz | 120 / 60Hz | 120 / 60Hz | 120 / 60Hz | 120 / 60Hz |
| Power Cord Length | 20 ft grounded cord | 20 ft grounded cord | 20 ft grounded cord | 20 ft grounded cord | 20 ft grounded cord | 20 ft grounded cord |
| Included Fittings | 1 1/2" and 2" barbed fitting | 1 1/2" and 2" barbed fitting | 1 1/2" and 2" barbed fitting | 2" barbed fitting | 2" barbed fitting | 2" barbed fitting |
| Duty Cycle | 24-hour continuous duty | 24-hour continuous duty | 24-hour continuous duty | 24-hour continuous duty | 24-hour continuous duty | 24-hour continuous duty |
| Warranty | 2 years | 2 years | 2 years | 2 years | 2 years | 2 years |

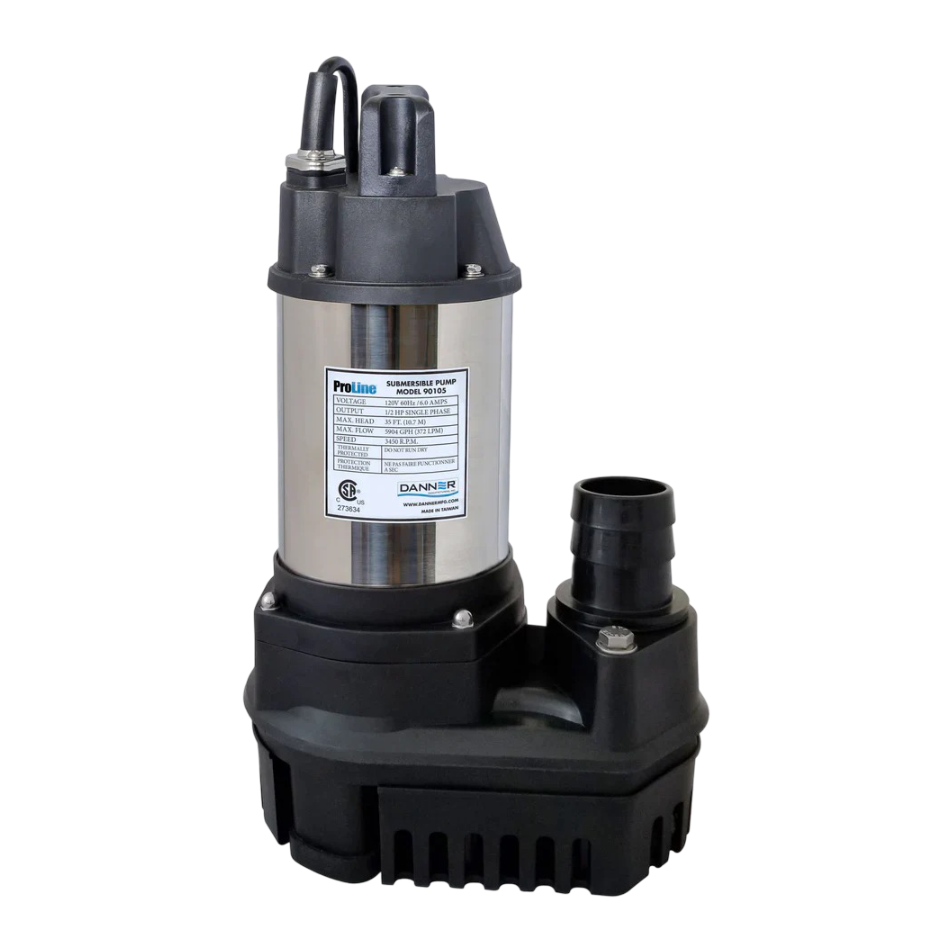

The ProLine High-Flow Submersible Water Pumps are designed for ponds, fountains, waterfalls, streams, aquaculture, irrigation, water transfer, recirculation, and drainage applications. Each model is completely submersible and features a vortex impeller for increased torque flow, stainless steel corrosion-resistant motor construction, built-in thermal protection, and double silicon carbide mechanical seals for improved performance and abrasive resistance.
Pro line hfs pumps operation and instructions.pdf
Model Options
Available configurations and product variants differ by the specific family shown below.
Pump Family Options
- Available in multiple flow capacities depending on the product family
- Choose the model based on feature size, required flow, and debris-handling needs
- Suitable for pond, waterfall, and filtration applications
Installation Configurations
- Designed for submerged or direct-use operation depending on model
- Supports common pond and water feature plumbing layouts
- Select the configuration that matches system head and installation space
Application Fit
- Smaller models suit compact features and moderate circulation
- Larger models support high-flow waterfalls and broader turnover needs
- Choose based on performance target and system design
Key Features
Efficient Water Movement
- Designed to deliver reliable flow for ponds, waterfalls, and water features
- Supports consistent circulation and water turnover
- Suitable for continuous-duty water movement applications
Durable Operating Design
- Built for wet-environment performance
- Engineered for long-term use in water feature systems
- Designed to balance performance, reliability, and service life
Application Flexibility
- Suitable for ponds, waterfalls, filtration systems, or general water transfer depending on model
- Available across multiple flow ranges and installation needs
- Designed to support both residential and commercial-style water features
