Warranty
Manufacturer Coverage
- Covered by the applicable manufacturer warranty policy for this product family
- Applies to defects in materials and workmanship under normal operating conditions
- Designed to support long-term use when installed and maintained properly
Service Requirements
- Follow manufacturer installation, operation, and maintenance guidance
- Use compatible system components and approved procedures
- Retain product and purchase information for support requests
Important Conditions
- Warranty terms may vary by model, configuration, or component type
- Improper installation, misuse, or unauthorized modification may affect coverage
- Refer to the latest official manufacturer documentation for full warranty details
Where the manufacturer publishes warranty terms by family rather than by individual SKU, confirm the exact product-family document before public publication if you want a specific duration listed.
Components Included
Pump or Compressor Assembly
- Primary motor and operating assembly based on the selected product family
- Designed for continuous-duty or routine water-feature use depending on model
- Supports reliable flow or air delivery performance
Connection System
- Power cord, air outlet, inlet, fittings, or plumbing connection points depending on model
- Designed for integration into pond, waterfall, or aeration systems
- Supports practical installation and service access
Application Hardware

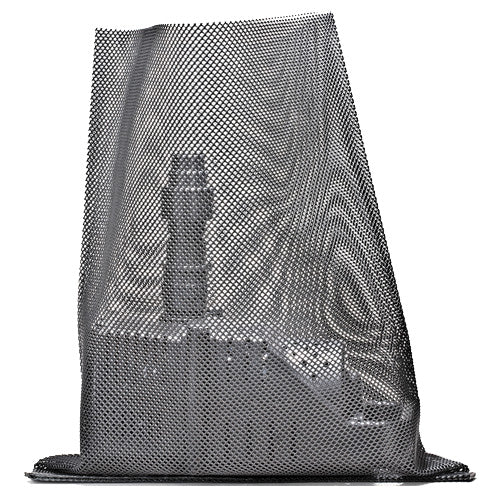

- Protective housings, cages, cabinets, or family-specific accessories may apply depending on product type
- Supports stable operation and long-term system performance
- Configured according to the selected model family
Included components vary by selected model, flow range, or compressor size. Mounting, control, and plumbing accessories may be configured separately.
Technical Specifications
| Model | 1600 HY DRIVE | 2100 HY DRIVE | 2600 HY DRIVE | 3200 HY DRIVE | 4000 HY DRIVE | 4800 HY DRIVE | 6000 HY DRIVE |
|---|---|---|---|---|---|---|---|
| Item Number | 02663 | 02665 | 02667 | 02680 | 02675 | 02670 | 02683 |
| Max. Watts / Amps | 120 / 1.0 | 190 / 1.5 | 270 / 2.2 | 160 / 1.5 | 200 / 1.85 | 280 / 2.15 | 675 / 5.5 |
| Volts | 120 / 60Hz | 120 / 60Hz | 120 / 60Hz | 120 / 60Hz | 120 / 60Hz | 120 / 60Hz | 120 / 60Hz |
| Inlet | 1" | 1" | 1" | 1½" | 1½" | 1½" | 2" |
| Outlet | 1" | 1" | 1" | 1½" | 1½" | 1½" | 2" |
| Cord Length | 20' | 20' | 20' | 20' | 20' | 20' | 20' |
| Dimensions (L × W × H) | 13" × 6⅜" × 6" | 13" × 6⅜" × 6" | 15" × 7¼" × 7¼" | 15" × 7¼" × 7¼" | 15" × 7¼" × 7¼" | 15" × 7¼" × 7¼" | 15½" × 7" × 8" |
| Included Fittings | (2) 1" Barb, (2) 1¼" Barb & (1) Coupling | (2) 1" Barb, (2) 1¼" Barb & (1) Coupling | (2) 1" Barb, (2) 1¼" Barb & (1) Coupling | (2) 1½" Barb & (1) Coupling | (2) 1½" Barb & (1) Coupling | (2) 1½" Barb & (1) Coupling | (1) Coupling |

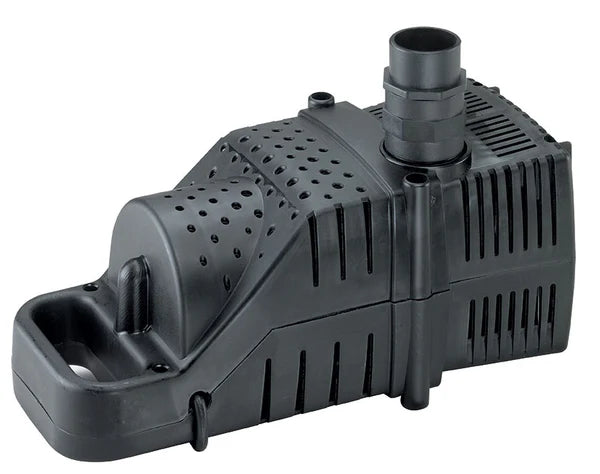

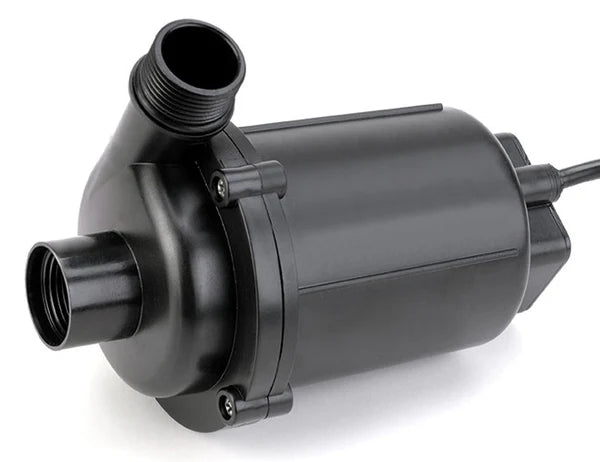

The HY-Drive pump series is designed for continuous-duty operation in ponds, waterfalls, and filtration systems. Larger models provide increased flow capacity and larger inlet/outlet connections for high-demand applications.
Zg rev.b hy drive proline pondmaster.pdf
Model Options
Available configurations and product variants differ by the specific family shown below.
Pump Family Options
- Available in multiple flow capacities depending on the product family
- Choose the model based on feature size, required flow, and debris-handling needs
- Suitable for pond, waterfall, and filtration applications
Installation Configurations
- Designed for submerged or direct-use operation depending on model
- Supports common pond and water feature plumbing layouts
- Select the configuration that matches system head and installation space
Application Fit
- Smaller models suit compact features and moderate circulation
- Larger models support high-flow waterfalls and broader turnover needs
- Choose based on performance target and system design
Key Features
Efficient Water Movement
- Designed to deliver reliable flow for ponds, waterfalls, and water features
- Supports consistent circulation and water turnover
- Suitable for continuous-duty water movement applications
Durable Operating Design
- Built for wet-environment performance
- Engineered for long-term use in water feature systems
- Designed to balance performance, reliability, and service life
Application Flexibility
- Suitable for ponds, waterfalls, filtration systems, or general water transfer depending on model
- Available across multiple flow ranges and installation needs
- Designed to support both residential and commercial-style water features
