AquaMaster Galaxy Select Series Fountain – Leo
AquaMaster Galaxy Select Series Fountain – Leo
In stock
Starting Price:
Regular price $46,859.10 CAD
Regular price
Sale price
$46,859.10 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
QUICK OVERVIEW
Galaxy Select Series® stainless steel floating fountain package with Leo Nozzle spray pattern. Available in 10HP, 15HP, 20HP, and 25HP. No lights included.
Options: Horsepower (10HP–25HP) and total cable length (150–250 ft). Cable gauge and pricing are applied automatically per sizing rules.
Warranty
Published Coverage
- Current AquaMaster warranty sheet lists Galaxy Select Fountains at 51 months parts and labor
- AquaMaster catalog also publishes 10–25 HP domestic coverage as 4 years parts and labor
- 10 HP single-phase systems may have different published coverage than higher-voltage units
Service Expectations
- Use AquaMaster-approved parts and service procedures
- Follow installation and maintenance requirements in the owner’s manual
- Keep records for warranty and service support purposes
Important Conditions
- Warranty terms can vary by horsepower and phase configuration
- Improper modification or non-compliant installation may affect coverage
- Confirm the latest official AquaMaster warranty document before purchase
Public AquaMaster sources currently show slightly different published warranty durations for Galaxy Select Series, so final warranty language should be verified against the most current official AquaMaster warranty document at the time of sale.

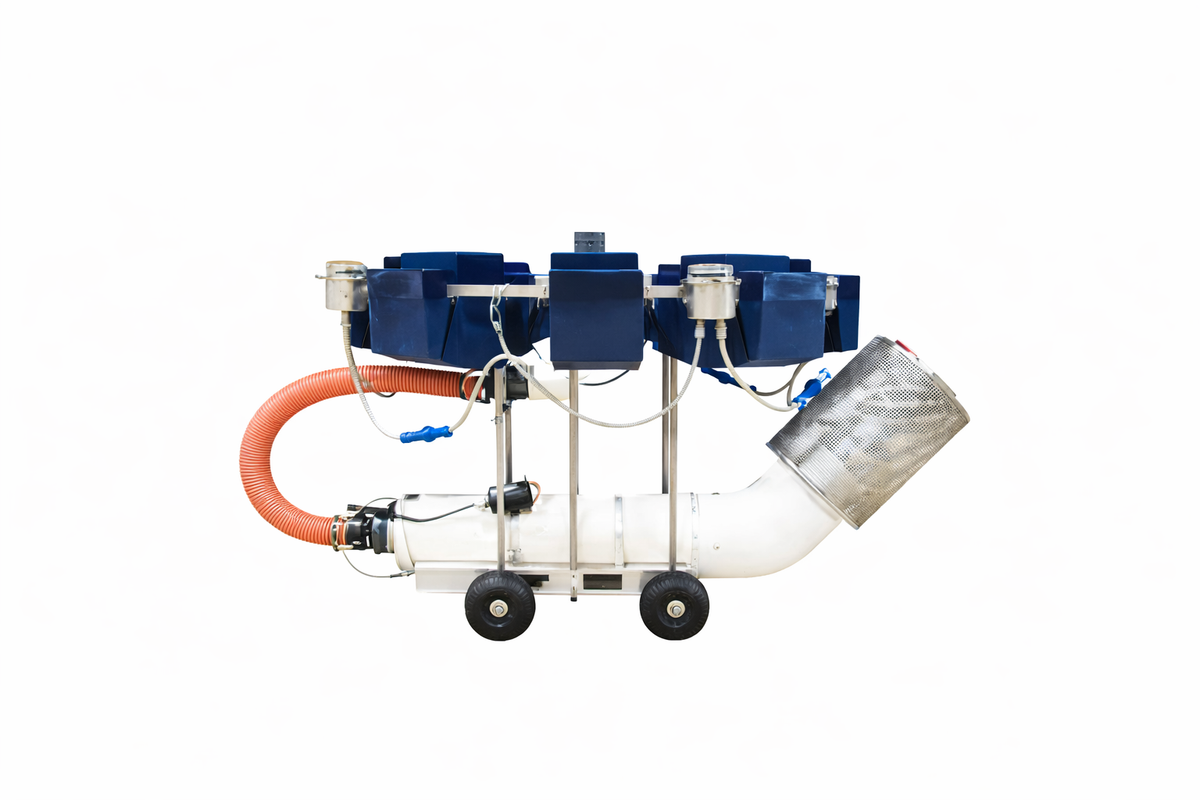

Components Included
Motor & Pump Assembly
- Non-serviceable, oil-free, water-cooled motor
- All stainless steel pump assembly
- Designed for high-horsepower continuous-duty operation
Float & Handling System
- Removable float assembly
- 360° available tie-down area
- Easy-rolling wheels with solid axle for handling and setup
Nozzle & Service Components
- Interchangeable threaded and tethered nozzles
- Removable discharge tube and intake screen
- Twist-locking screen with double handles for tool-less cleaning
Included components vary by horsepower, pattern selection, and project configuration. Lighting systems and control panels are typically configured separately.
Technical Specifications
| Specification | 10 HP | 15 HP | 20 HP | 25 HP |
|---|---|---|---|---|
| Voltage / Phase | 220–240V (1P) or 220–240V (3P) | 220–240V (3P) | 220–240V (3P) | 220–240V (3P) |
| Run Amperage | 58A / 34A / 17A | 44A / 22A | 54A / 27A | 64A / 32A |
| Minimum Operating Depth | 62 inches | |||
| Control Panel | Digital timer, LED circuit, GFI protection, soft starter, Franklin sub-monitor | |||
| Upper Spray Height | 46 ft | 54 ft | 61 ft | 64 ft |
| Lower Spray Height × Diameter | 21 × 60 ft | 22 × 65 ft | 23 × 65 ft | 24 × 65 ft |
All models are part of the AquaMaster Galaxy Select Series platform. Increasing horsepower increases both spray height and overall display width, making higher HP models ideal for larger lakes and high-visibility applications.
Galaxy select hp.pdf
Model Options
The AquaMaster Galaxy Select Series includes both standard nozzle and specialty pattern options, giving large-scale projects a wide range of visual styles from clean vertical columns to layered multi-tier effects.
Standard Nozzle Patterns
- Altair
- Virgo
- Taurus
- Leo
- Gemini
- Aries
- Aquarius
Specialty Patterns
- Olympian – multi-geyser pattern with adjustable valves
- Scorpio – specialty display pattern for large-scale visual impact
- Designed for more distinctive feature fountain presentations
Galaxy Select Platform
- Available across 10HP, 15HP, 20HP, and 25HP configurations
- Supports interchangeable threaded and tethered nozzles
- Built for large commercial, municipal, and landmark water features
Key Features
High-Horsepower Display Performance
- Designed for 10HP to 25HP fountain applications
- Built for strong visual impact and beneficial aeration
- Ideal for large ponds, lakes, and commercial landscapes
Service-Friendly Platform
- Removable discharge tube and intake screen for compact storage
- Twist-locking screen for tool-less cleaning access
- Removable float assembly for easier access to the motor and pump
Heavy-Duty AquaMaster Design
- Non-serviceable, oil-free, water-cooled motor
- All stainless steel pump assembly
- 360° tie-down area and easy-rolling wheels with solid axle
