Aqua Control Select Series Fountain (230V/1P) – Full Geyser

In stock

Horsepower 1 HP 2 HP 3 HP 5 HP

Cable Length 100 ft 200 ft

Pump Orientation Vertical Horizontal

Starting Price:

$11,532.29 CAD

Sale Sold out

Shipping calculated at checkout.

QUICK OVERVIEW

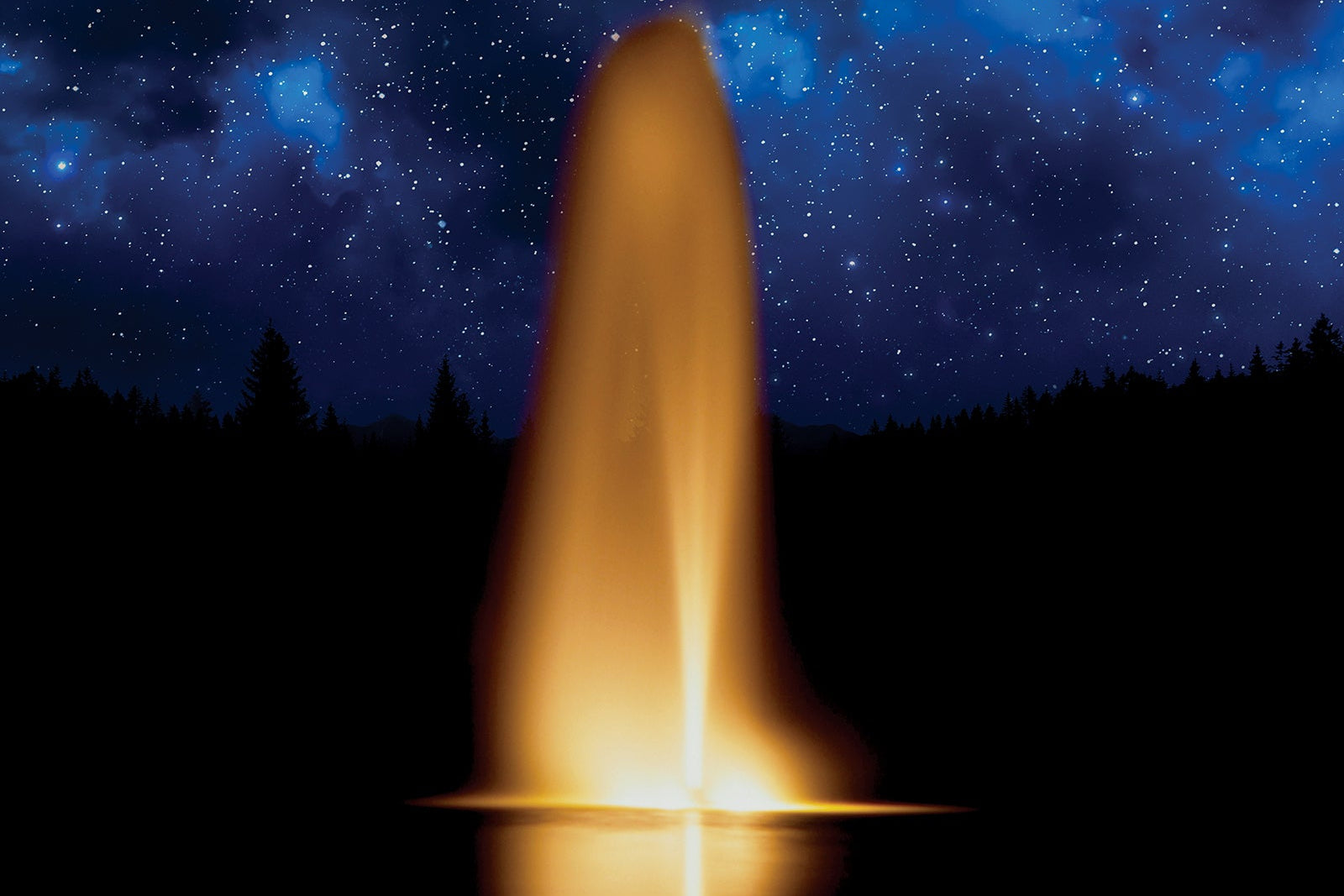

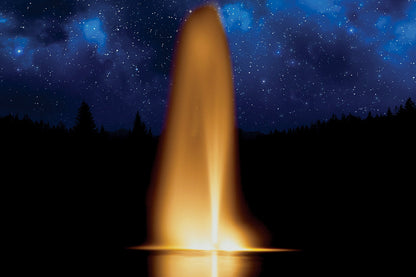

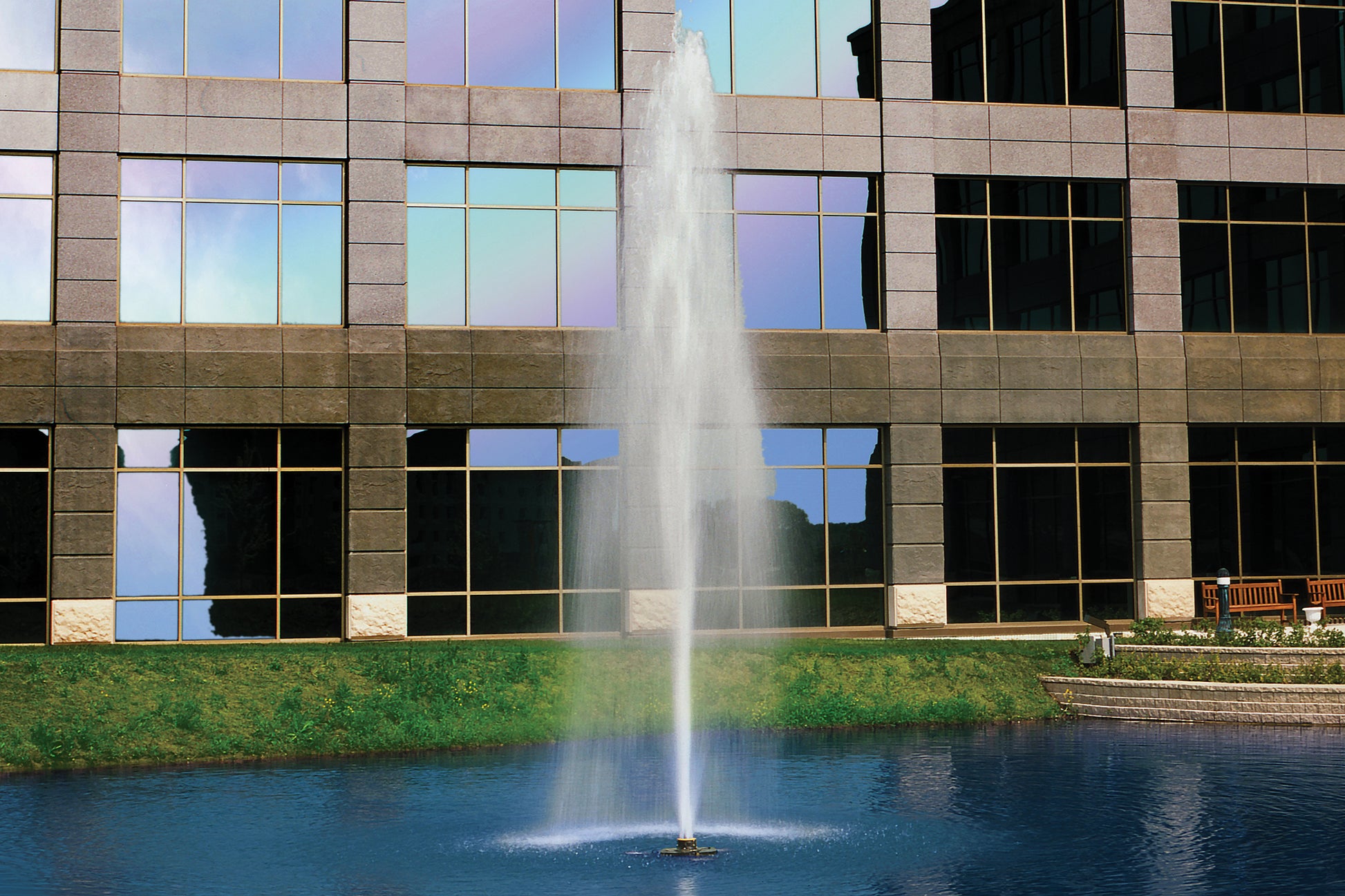

Aqua Control Select Series Fountain (230V/1P) – Full Geyser is a premium decorative fountain engineered to deliver a high-definition spray display with refined visual height and symmetry. Built for 230V / 1-phase operation on the Aqua Control Select Series fountain platform, it produces a dense, high-volume vertical geyser created by several intermingling streams with the pressure-driven performance these fountain patterns are known for. Ideal for ponds, lakes, entry features, and commercial landscapes, it combines elegant presentation with dependable outdoor performance.

View full details

Warranty

5-Year Coverage

Applies to Aqua Control Select Series Fountain units
Main Select Series fountain equipment carries a 5-year limited warranty
Designed for long-term decorative fountain applications

3-Year Components Coverage

Electrical components carry a 3-year warranty
Copper and stainless steel light sets carry a 3-year warranty
Control panels may have separate warranty terms depending on package and purchase configuration

Important Conditions

Improper installation, improper voltage, freezing, and unauthorized repair can void warranty
Light bulbs, lens gaskets, and lenses may carry shorter consumable-item coverage periods
Follow Aqua Control installation and maintenance instructions to preserve warranty protection

Warranty coverage is based on current Aqua Control Select Series Fountain warranty information. Refer to the latest official Aqua Control documentation for complete terms, exclusions, and service procedures.

Components Included

Fountain Pump System

High-efficiency motor and pump assembly
Designed for continuous-duty operation
Consistent spray performance

Float & Mooring Assembly

Heavy-duty float platform
Mooring lines for positioning
Stable operation in open water

Nozzle & Display System

Pattern-specific nozzle assemblies
Precision spray formation
Lighting compatibility available

Included components vary by horsepower, phase configuration (1P or 3P), and selected spray pattern. Lighting systems and control panels are typically configured separately.

Technical Specifications

Pattern	Voltage / Phase	1 HP	2 HP	3 HP	5 HP	GPM Range	Min Depth
Buckingham	230V / 1P or 3P	20' H × 33' D	22' H × 44' D	25' H × 54' D	28' H × 59' D	140–210 GPM	52"–62" vertical / 28" horizontal
Fleur de Lis	230V / 1P or 3P	20' H × 30' D	24' H × 35' D	27' H × 40' D	35' H × 48' D	140–210 GPM	52"–62" vertical / 28" horizontal
Full Geyser	230V / 1P or 3P	20' H × 6' D	24' H × 8' D	30' H × 10' D	34' H × 12' D	115–165 GPM	52"–62" vertical / 28" horizontal
Majestic	230V / 1P or 3P	18' H × 45' D	24' H × 60' D	26' H × 65' D	30' H × 70' D	140–210 GPM	52"–62" vertical / 28" horizontal
Sky Geyser	230V / 1P or 3P	30' H × 3' D	35' H × 4' D	38' H × 5' D	50' H × 7' D	80–120 GPM	52"–62" vertical / 28" horizontal
Spoke & Trellis	230V / 1P or 3P	16' H × 40' D	18' H × 45' D	20' H × 50' D	25' H × 80' D	140–210 GPM	52"–62" vertical / 28" horizontal
Tiara	230V / 1P or 3P	20' H × 55' D	24' H × 63' D	28' H × 70' D	34' H × 90' D	140–210 GPM	52"–62" vertical / 28" horizontal
Trellis	230V / 1P or 3P	18' H × 36' D	22' H × 44' D	26' H × 52' D	30' H × 60' D	140–210 GPM	52"–62" vertical / 28" horizontal
Trellis & Sky Geyser	230V / 1P or 3P	20' H × 26' D	25' H × 36' D	30' H × 39' D	35' H × 42' D	125–190 GPM	52"–62" vertical / 28" horizontal

Base Motor & Electrical Specifications

HP	Output (GPM)	230V / 1P Amps	230V / 3P Amps	Minimum Operating Depth
1 HP	140 GPM 80 GPM for Sky Geyser 115 GPM for Full Geyser 125 GPM for Trellis & Sky Geyser	10 A	5 A	52" vertical / 28" horizontal
2 HP	160 GPM 100 GPM for Sky Geyser 130 GPM for Full Geyser 140 GPM for Trellis & Sky Geyser	13 A	9 A	56" vertical / 28" horizontal
3 HP	180 GPM 110 GPM for Sky Geyser 150 GPM for Full Geyser 160 GPM for Trellis & Sky Geyser	17 A	12 A	56" vertical / 28" horizontal
5 HP	210 GPM 120 GPM for Sky Geyser 165 GPM for Full Geyser 190 GPM for Trellis & Sky Geyser	28 A	20 A	62" vertical / 28" horizontal

Aqua Control Select Series fountains are engineered for scalable decorative performance. Spray height, diameter, and flow vary by pattern and horsepower selection.

Specifications are based on Aqua Control manufacturer data. Final performance may vary depending on installation conditions, nozzle configuration, and water conditions.

Aqua control service manual chapter select series fountains series instructions.pdf Click to Download

Model Options

The Aqua Control Select Series offers a wide range of decorative spray patterns available in both single-phase and three-phase configurations to suit different pond sizes and project requirements.

Vertical & Geyser Displays

Full Geyser – Strong vertical column
Sky Geyser – Taller, narrow plume
Trellis & Sky Geyser – Combination vertical display

Classic Decorative Patterns

Fleur de Lis – Elegant tiered pattern
Tiara – Symmetrical crown-style spray
Majestic – Full multi-tier display
Buckingham – Balanced ornamental pattern

Wide Coverage Designs

Trellis – Structured wide spray
Spoke & Trellis – Multi-directional pattern
Designed for broader visual coverage

Key Features

High-Impact Decorative Displays

Wide range of signature spray patterns
Designed for strong visual presence
Ideal for ponds, lakes, and commercial landscapes

Reliable Pump Performance

Engineered for continuous-duty operation
Efficient water movement and lift
Consistent spray performance across patterns

Flexible Power Configurations

Available in 230V single-phase and three-phase
Supports various installation environments
Adaptable for residential and commercial use
