Aqua Master - Masters Series Fountain – Eagle 304 SS
- Interchangeable nozzles - change the display without changing the fountain
- Masters Series ships as a package with control panel and underwater-rated cable
- Oil-cooled energy-efficient motor with stainless steel housing and intake screen
- UL, cUL and CE listed, with AquaLock underwater cable disconnect
This part ships in a Fountain Depot service kit. Call or text 1-855-752-5795 and we will put the right kit together for your unit.
Small parts are sold in kits that include the matching hardware and service parts.
This part is sold as an add-on. Add a Kasco unit, motor or kit to your cart first, then add this part to the same order.
- Authorized AquaMaster dealerFull factory warranty honoured
- Certified repair centreFactory-trained bench in Markham
- Ships Canada-wideFree on parcel orders over $250
- A human answersCall or text 1-855-752-5795
Masters Series - Choose Your Spray Pattern
The Masters Series shares one pump and float across the range. Only the nozzle changes, so choose on the display you want on the water.
Masters Series nozzles
AceMasters SeriesFrom $8,026.92
BirdieMasters SeriesFrom $7,525.67
BiscayneMasters SeriesFrom $7,550.69
Crown & GeyserMasters SeriesFrom $7,508.03
Crown & Wide GeyserMasters SeriesFrom $7,604.79
Crystal GeyserMasters SeriesFrom $7,478.81
EagleMasters SeriesFrom $7,557.70
Eagle - 304 StainlessViewingMasters Series
GeyserMasters SeriesFrom $7,486.18
ParMasters SeriesFrom $7,619.76
Wide GeyserMasters SeriesFrom $7,472.69Overview

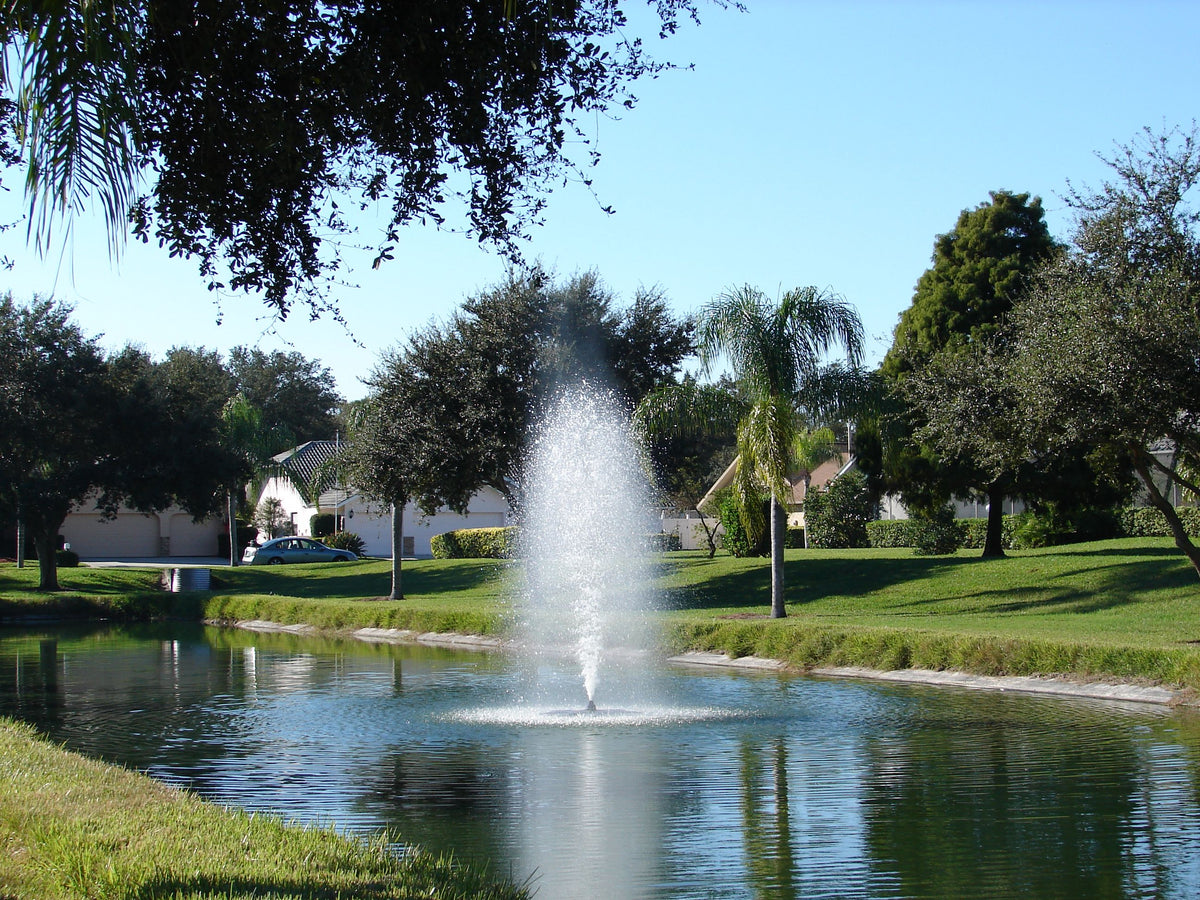

The AquaMaster Masters Series Eagle 304 SS is a 5 HP floating fountain with the Eagle spray pattern, a crystalline, cascading wide geyser with a full profile.
- Spray pattern: Eagle, a vertical basic-flow pattern built for display and aeration.
- Approx. height x width (60 Hz): about 20 x 12 ft at 5 HP.
- Power options: 5 HP on 240V single-phase or 240V three-phase.
- Package: floating fountain unit, nozzle and underwater-rated power cable in your choice of 50, 100, 150 or 200 ft. Lighting is not included.
- Construction: oil-filled 3450 RPM motor in a 300-series stainless steel housing, stainless intake screen, molded composite impeller and polyethylene float.
Suits owners who want the Eagle pattern at its biggest size, with a full, frothy column that helps keep water moving for fish and plants. Most Masters Series nozzles are interchangeable, so you can change the look later. Not sure which size fits your pond? Call or text 1-855-752-5795 for free sizing help.
Manuals & drawings
Does an AquaMaster fountain include a control panel?
Yes. Masters Series fountains ship as a complete package - fountain, control panel and a specified length of underwater-rated power cable - on all 60 Hz models.
That is worth knowing when comparing prices against a unit sold as the fountain alone, since a panel is a significant separate cost on lines that do not include one.
Which AquaMaster series suits my water?
Three ranges, sized very differently. Masters Series covers 1 to 5 HP and suits water up to roughly two surface acres. Masters Grand is a single 7.5 HP unit for about three acres. Galaxy Select runs from 10 to 25 HP and is built for large lakes and municipal water.
Send us your surface acreage and depth and we will confirm which range fits.
Can I change the spray pattern later?
Yes. All Masters Series nozzles are interchangeable, and AquaMaster offers over 30 patterns across the line.
One catch worth knowing: Basic Flow patterns swap freely among themselves, while Straightened Flow patterns use flow-straightener technology and may require that component fitted. Adjustable Straightened Flow patterns can also be tuned by turning the lock nut assembly. Tell us which pattern you have and which you want and we will confirm what is needed.
How deep does the water need to be?

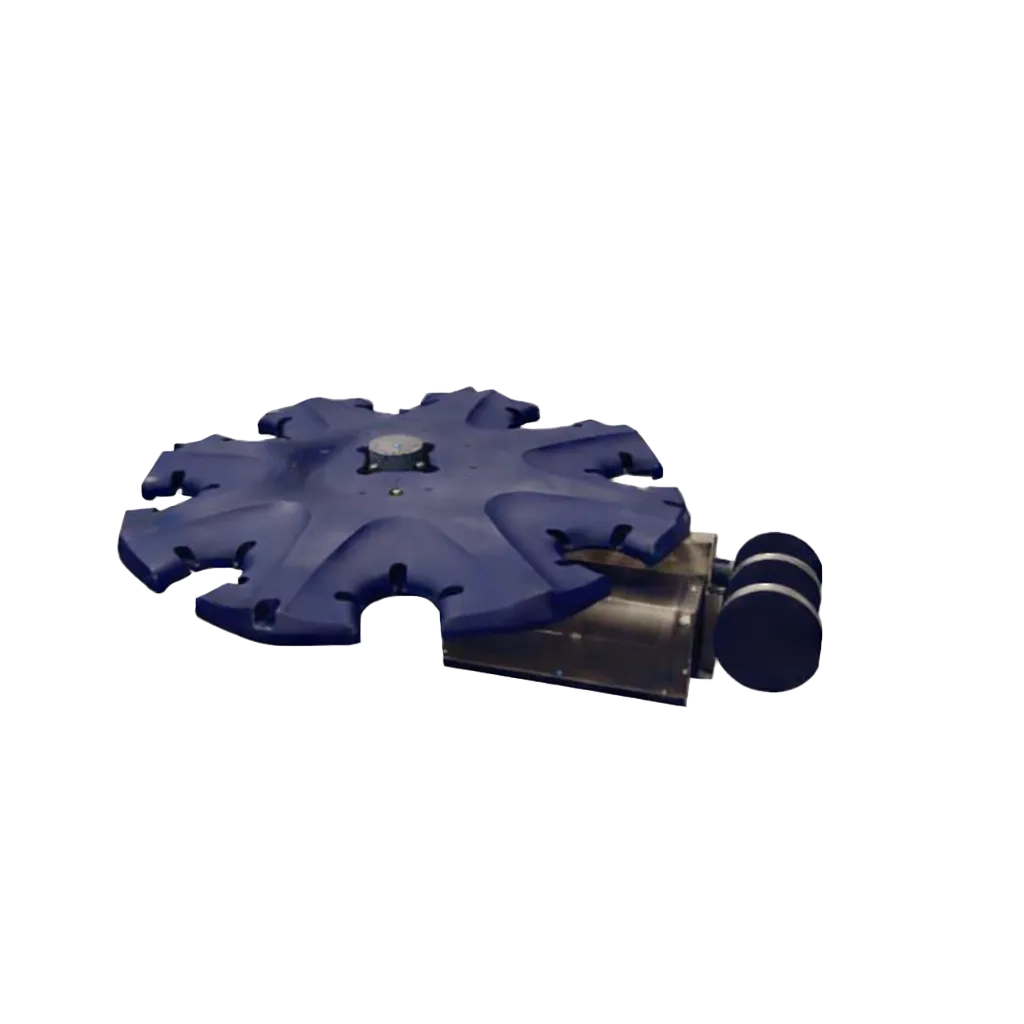

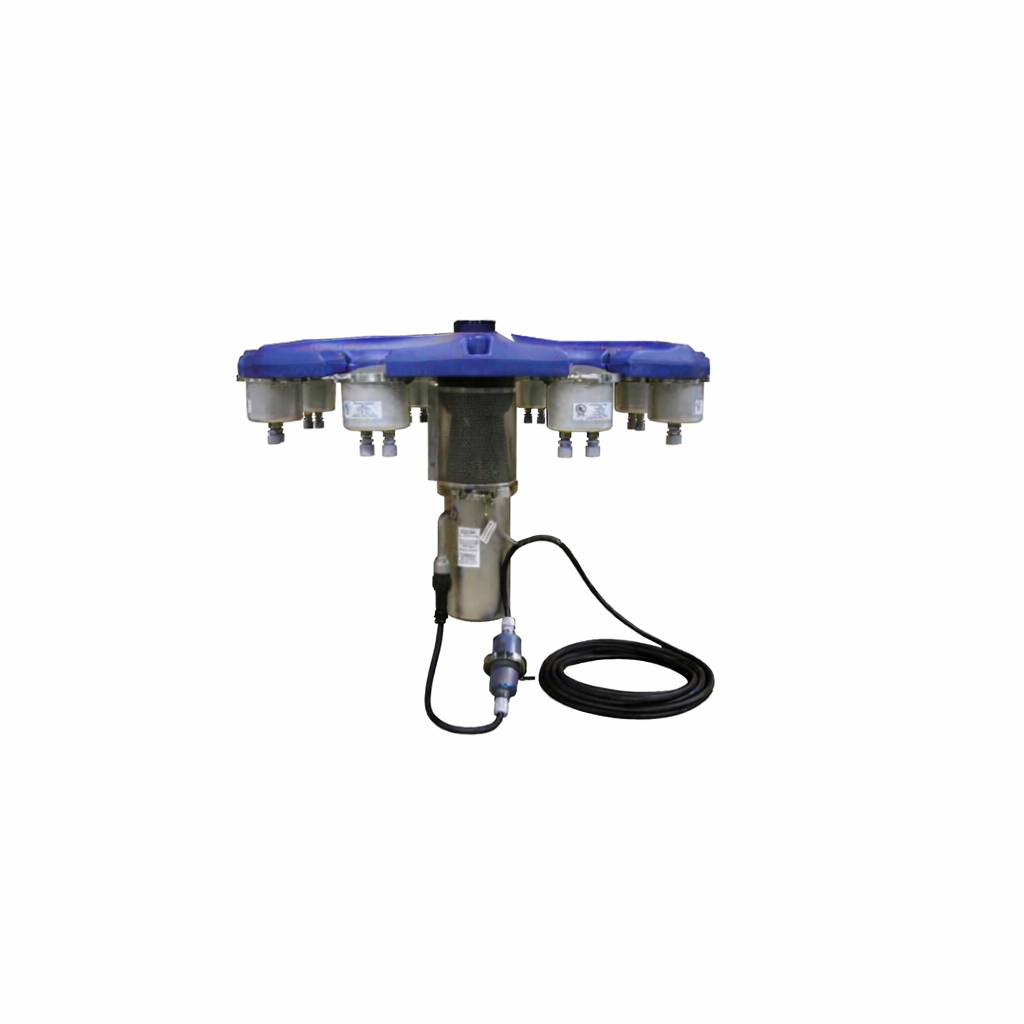

It depends on the series and the mounting. A Masters Series fountain in the standard vertical design needs a minimum of 3 ft; the horizontal design drops that to 16 in, which is why it suits shallow retention basins.
Masters Grand needs a minimum of 4 ft, and Galaxy Select needs 62 in. Measure at the intended location rather than at the deepest point of the pond.
What warranty applies?
Domestic coverage runs 5 years parts and labour on Masters Series 1 to 5 HP, 4 years on the 7.5 HP Masters Grand, and 4 years on Galaxy Select 10 to 25 HP - though 10 HP single-phase systems carry 3 years.
All AquaMaster products are UL, cUL and CE listed. Warranties are subject to change, so ask us to confirm at the time of order.
Do I need to remove it for a Canadian winter?
Yes. Any floating fountain should come out before freeze-up - ice will damage the float and can shear the unit.
If you want water movement through winter, a de-icer is the purpose-built tool. We can advise on shutdown, storage and spring restart.
