Aqua Master - Masters Series Fountain – Eagle

Warranty

Masters Series Coverage

63 months parts and labor coverage
Applies to AquaMaster Masters Series fountains
Designed to support long-term ownership confidence

Service Requirements

Warranty claims require prior factory approval
Service must be performed by AquaMaster or an approved factory-trained authorized service center
Unauthorized warranty-period repairs may void coverage

Important Conditions

Only AquaMaster-manufactured replacement parts are covered under full warranty
Installed unit modifications may void warranty coverage
Routine maintenance remains the owner’s responsibility

Warranty terms shown here are based on AquaMaster’s current published warranty information for the Masters Series. For claim approval, service procedures, and full coverage conditions, always refer to the latest AquaMaster warranty documentation and owner’s manual.

Components Included

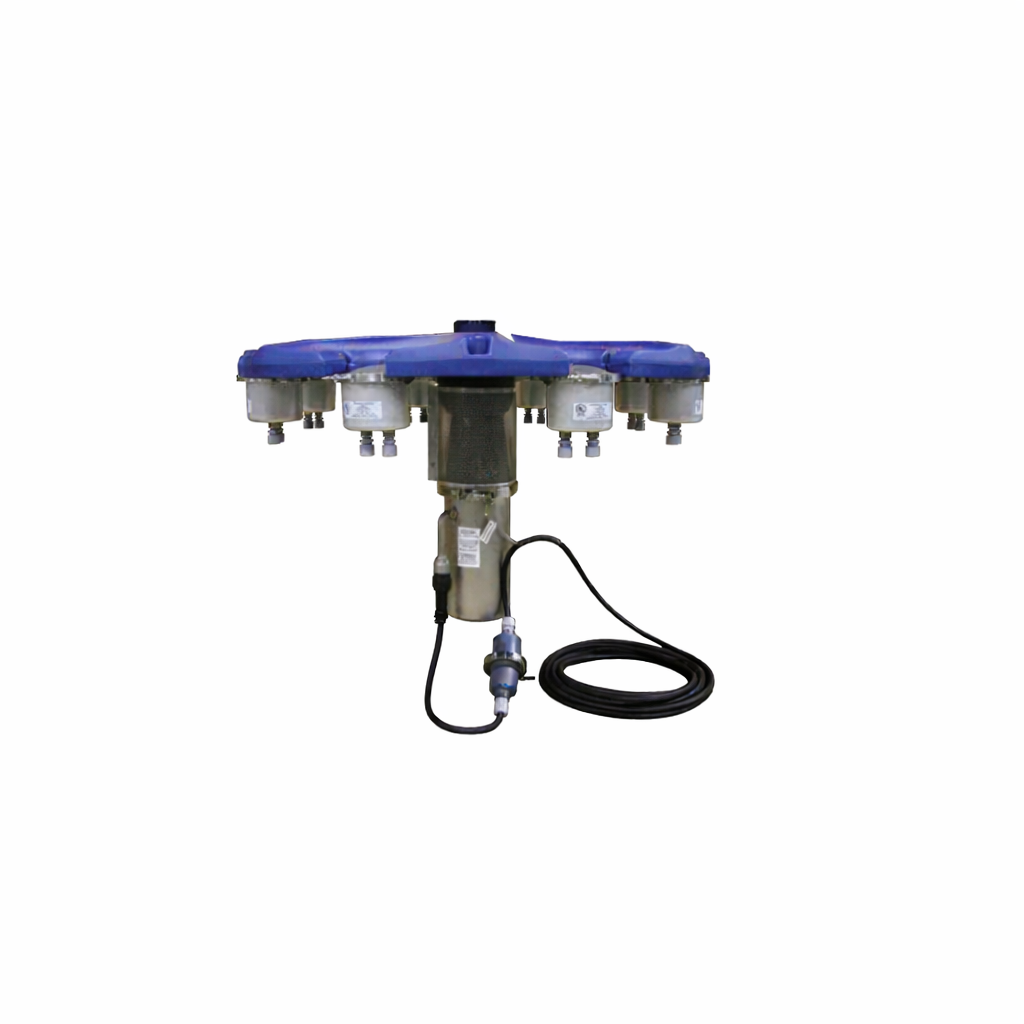

Fountain Pump Assembly

High-efficiency motor and pump system
Designed for continuous-duty operation
Stable and consistent spray output

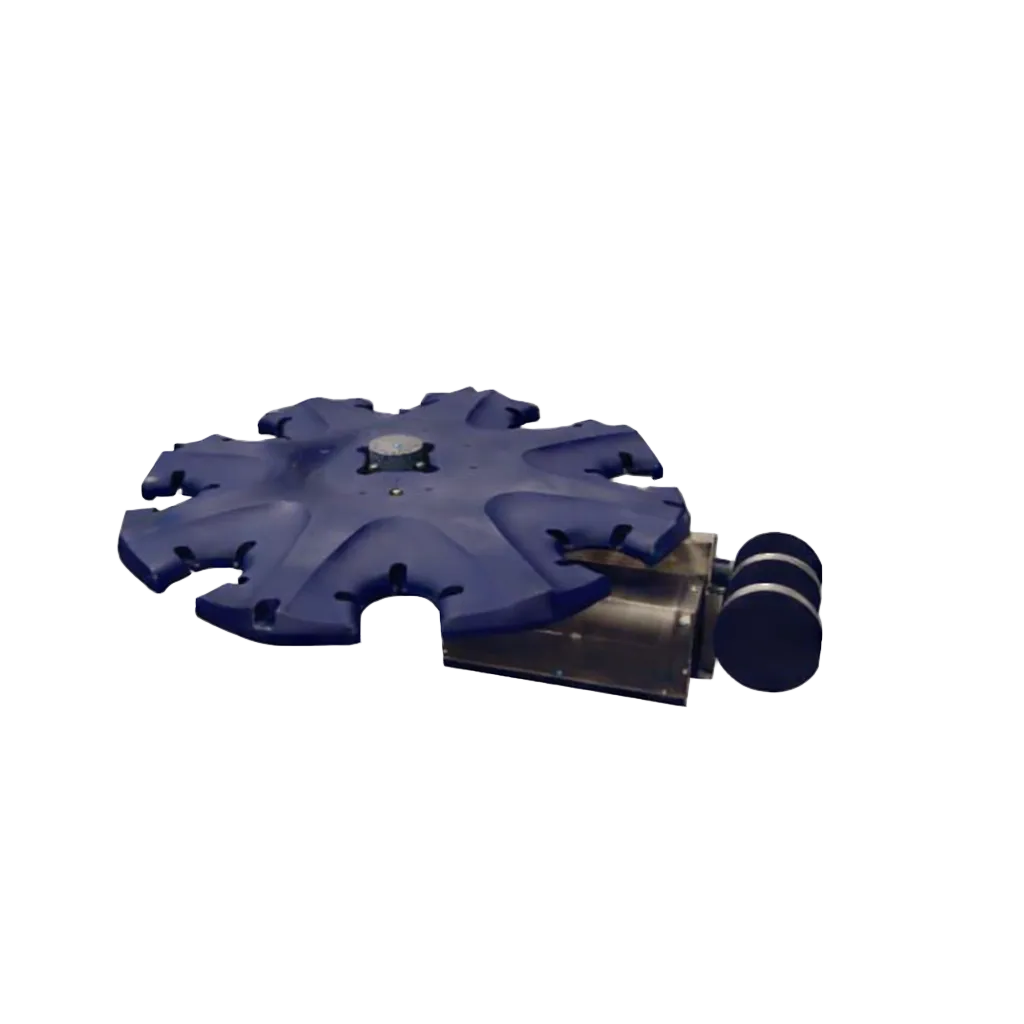

Float & Mooring System

Heavy-duty floating platform
Mooring lines for secure positioning
Engineered for stability in open water

Nozzle & Display Assembly

Pattern-specific nozzle system
Precision spray shaping

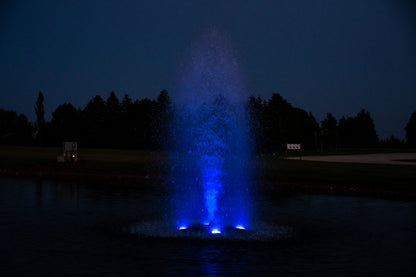

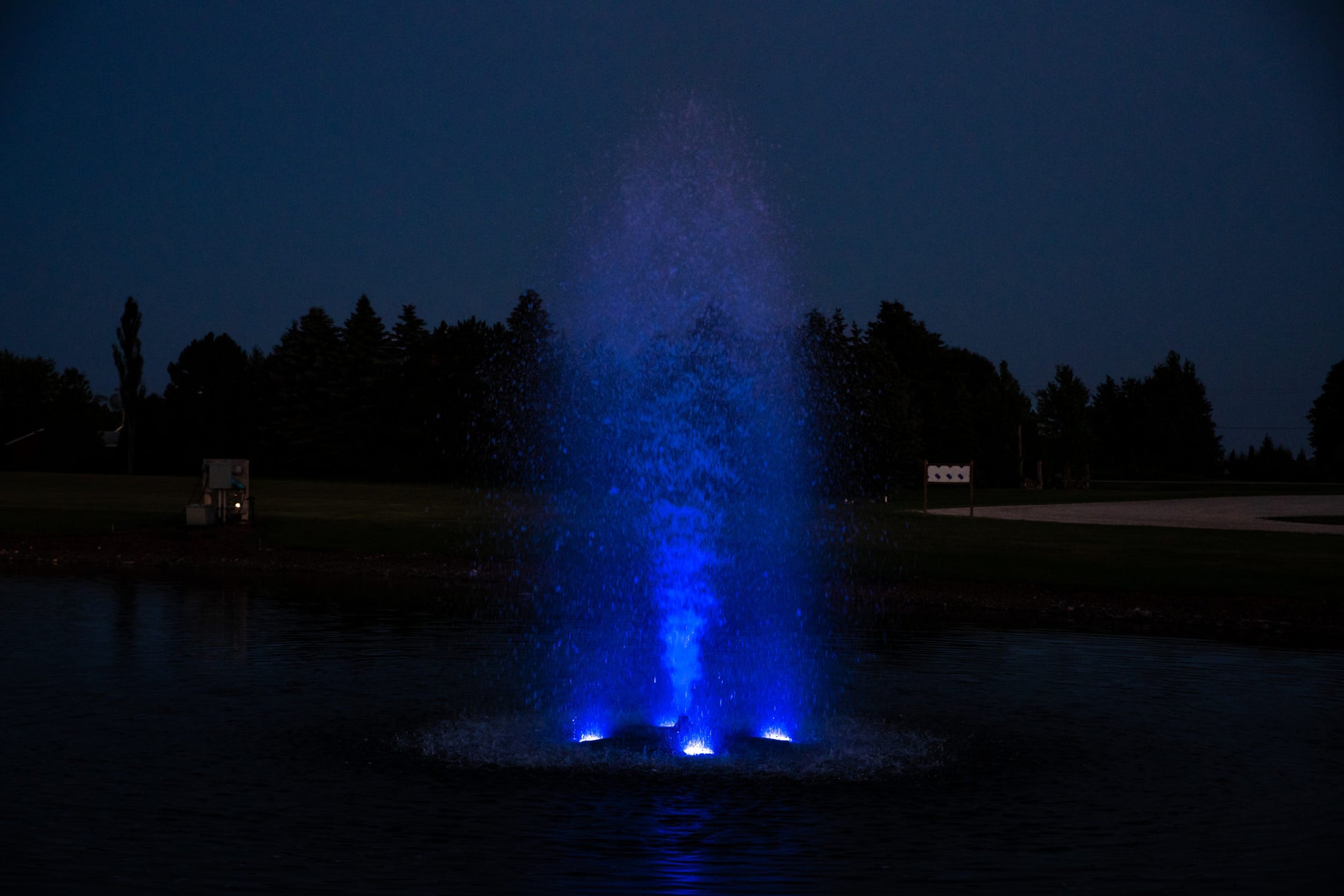

Lighting compatibility available

Included components vary based on selected spray pattern and horsepower configuration. Lighting systems and control panels are typically configured separately.

Technical Specifications

HP	Dimensions	CWG	BISC	EAGLE	PAR	BIRDIE	ACE	CRYSTAL	C&G	WG	GEYSER
1 HP	Ht × Dia (ft)	Center 12 × 2 Outer 5 × 35	Center 11 Outer 7 × 14	11 × 8	Center 6 Outer 3 × 20	3 × 5	Center 4 × 8 Outer 2 × 22	15 × 26	Center 12 × 2 Outer 5 × 35	16 × 10	18 × 2
2 HP	Ht × Dia (ft)	Center 15 × 2 Outer 6 × 40	Center 14 Outer 10 × 19	15 × 9	Center 8.5 Outer 3.5 × 24	3.5 × 5	Center 6 × 8 Outer 2 × 26	17 × 30	Center 15 × 2 Outer 6 × 40	20 × 10	20 × 2
3–3.5 HP	Ht × Dia (ft)	Center 20 × 2 Outer 6 × 42	Center 16 Outer 10 × 20	17 × 11	Center 13 Outer 5 × 30	4.5 × 8	Center 8 × 10 Outer 4 × 32	19 × 30	Center 20 × 2 Outer 6 × 42	25 × 10	24 × 2
5 HP	Ht × Dia (ft)	Center 22 × 2 Outer 7 × 50	Center 20 Outer 13 × 24	20 × 12	Center 15 Outer 7 × 40	5 × 12	Center 9 × 12 Outer 4.5 × 35	22 × 32	Center 22 × 2 Outer 7 × 50	28 × 10	28 × 2

Pattern abbreviations: CWG = Crown & Wide Geyser, BISC = Biscayne, C&G = Crown & Geyser, WG = Wide Geyser. Dimensions shown are approximate height × diameter in feet.

Masters hp rev b fdcf d bb ed.pdf Click to Download

Model Options

The AquaMaster Masters Series offers a variety of decorative spray patterns designed to match different pond sizes, visual styles, and project requirements.

Vertical & Geyser Displays

Geyser – Straight vertical plume
Wide Geyser – Broader vertical spray
Crystal Geyser – Clean, refined vertical display
Crown & Geyser – Vertical center with crown effect
Crown & Wide Geyser – Expanded crown + geyser combo

Classic Decorative Patterns

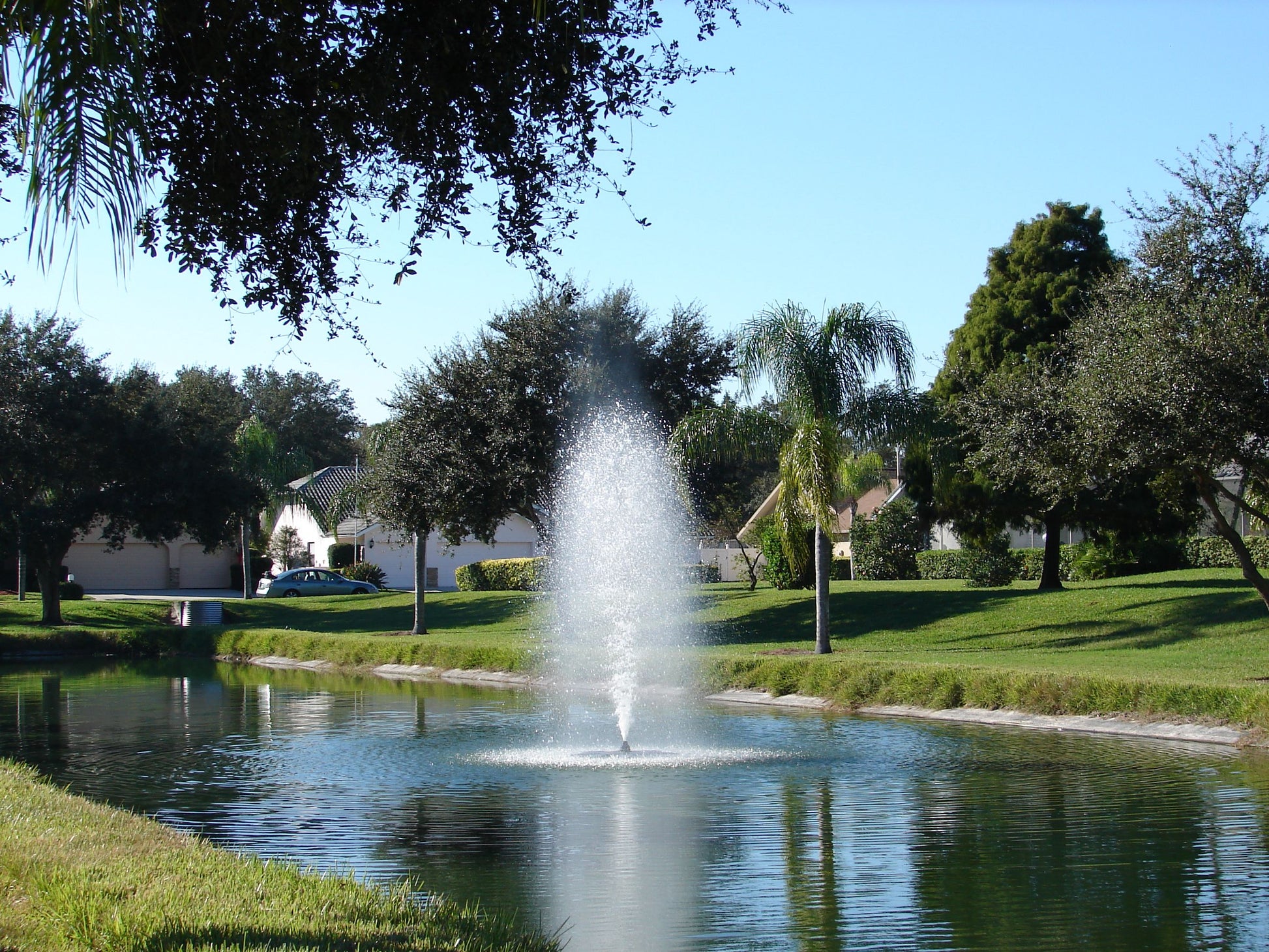

Eagle – Signature multi-stream display
Eagle 304 SS – Premium stainless steel version
Biscayne – Balanced ornamental spray
Par – Smooth mid-height pattern

Compact & Specialty Designs

Birdie – Smaller decorative pattern
Ace – Compact high-impact spray designed for smaller ponds and focused displays

Key Features

Signature Decorative Displays

Wide range of classic and modern spray patterns
Designed for strong visual impact
Ideal for ponds, golf courses, and commercial landscapes

High-Efficiency Pump System

Engineered for consistent spray performance
Provides both aeration and aesthetics
Reliable continuous-duty operation

Durable Floating Platform

Heavy-duty float design
Corrosion-resistant construction
Built for long-term outdoor use
