Kasco

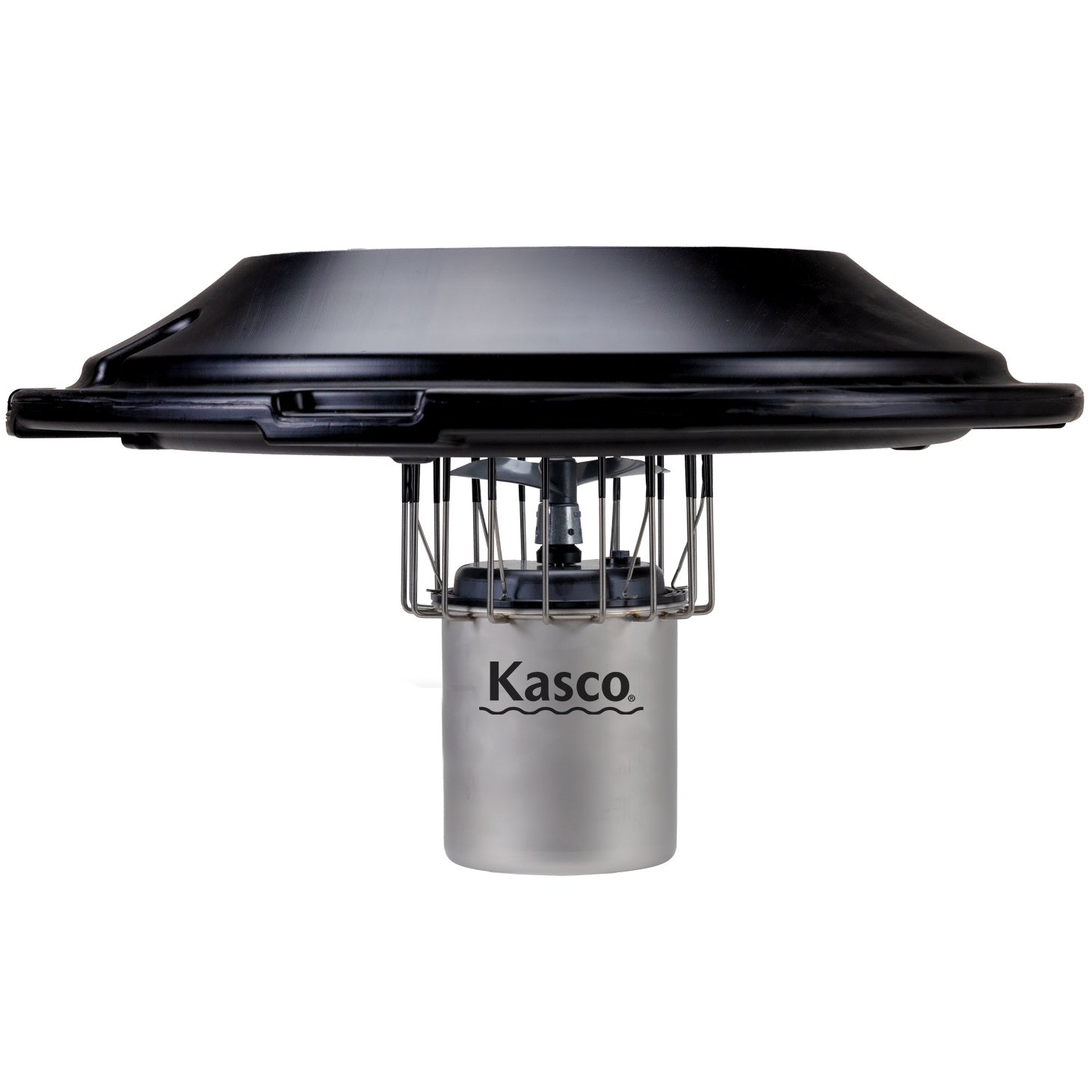

Kasco Surface Aerator 4400HAF
Kasco Surface Aerator 4400HAF
In stock
Starting Price:
Regular price $2,820.12 CAD
Regular price
Sale price
$2,820.12 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
QUICK OVERVIEW
Kasco Surface Aerator 4400HAF is designed for efficient surface aeration and improved oxygen transfer in demanding water environments. Built with 1HP, 208–240V and a minimum operating depth of 19″, it is ideal for pond and lake aeration applications.
Warranty
2-Year Coverage
- Applies to 2400AF, 3400AF, 3400HAF, 4400AF, and 4400HAF
- Covers 1/2 HP, 3/4 HP, and 1 HP Surface Aerator units
- Designed for standard-duty residential, commercial, and light industrial applications
3-Year Coverage
- Applies to 8400AF, 3.1AF, 3.3AF, 5.1AF, and 5.3AF
- Covers 2 HP, 3 HP, and 5 HP Surface Aerator units
- Intended for higher-capacity and heavier-duty aeration applications
Important Conditions
- Coverage applies under normal use and service conditions
- Unauthorized alterations to the unit, power cord, or control box may void warranty
- Follow Kasco maintenance recommendations to help preserve coverage
Warranty coverage is based on current Kasco Surface Aerator product-family information. For full warranty terms, exclusions, and repair procedures, refer to the latest official Kasco documentation.
Components Included
Main Aerator Unit
- Motor assembly with high-efficiency design
- Open propeller-style surface aeration system
- Engineered for continuous-duty operation
Float & Mounting Assembly
- Float system for stable surface operation
- Mounting hardware and support structure
- Designed for straightforward installation
Power & Mooring Items
- Power cord based on selected model
- Mooring lines for positioning
- Installation and operation documentation
Included components vary by selected horsepower, voltage, and phase configuration. Bottom screens and control panels may vary by package or be configured separately depending on the installation.
Technical Specifications
| Model | HP | Voltage | Phase | Amps | Optional Control Panel | Minimum Operation Depth (in.) | Warranty |
|---|---|---|---|---|---|---|---|
| 2400AF | 1/2 | 120 | 1 | 5.7 | C-25 | 17.5 | 2 Years |
| 3400AF | 3/4 | 120 | 1 | 7 | C-25 | 17.5 | 2 Years |
| 3400HAF | 3/4 | 208-240 | 1 | 3.5 | C-220 | 17.5 | 2 Years |
| 4400AF | 1 | 120 | 1 | 9.1 | C-25 | 19 | 2 Years |
| 4400HAF | 1 | 208-240 | 1 | 4.5 | C-220 | 19 | 2 Years |
| 8400AF | 2 | 208-240 | 1 | 9 | C-220 | 20 | 3 Years* |
| 3.1AF | 3 | 208-240 | 1 | 10.7 | CA-230 | 24 | 3 Years* |
| 3.3AF | 3 | 230 | 3 | 8.2 | CA-3235 | 24 | 3 Years* |
| 5.1AF | 5 | 208-240 | 1 | 18 | CA-230 | 26 | 3 Years* |
| 5.3AF | 5 | 230 | 3 | 18 | CA-3235 | 26 | 3 Years* |
Kasco Surface Aerators are available in 1/2, 3/4, 1, 2, 3, and 5 HP sizes, with 120V and 208-240V options in single- and three-phase configurations. Optional control panels allow timing and lighting control from shore.
*Kasco lists 1/2, 3/4, and 1 HP models with a 2-year warranty, and 2, 3, and 5 HP models with a 3-year warranty, with an optional 5-year warranty available on the larger units. Cord lengths are available in multiple lengths depending on horsepower and voltage, and bottom screens are optional for all units.
Kasco surface aerator manual .pdf
Model Options
The Kasco Surface Aerator lineup offers multiple horsepower, voltage, and phase configurations to suit smaller ponds, larger ponds, commercial sites, and high-demand aeration applications.
2400AF / 3400AF / 3400HAF
- 1/2 HP or 3/4 HP options
- 120V or 208–240V configurations
- Ideal for smaller ponds and lighter-duty aeration needs
- Entry-level surface aeration models
4400AF / 4400HAF / 8400AF
- 1 HP and 2 HP options
- 120V or 208–240V single-phase configurations
- Designed for larger residential and commercial ponds
- Good balance of performance and coverage
3.1AF / 3.3AF / 5.1AF / 5.3AF
- 3 HP and 5 HP models
- Single-phase and three-phase options
- Built for large ponds, lagoons, and demanding aeration needs
- High-capacity commercial and industrial performance
Key Features
High Oxygen Transfer
- Pushes large volumes of water into the air
- Helps increase dissolved oxygen levels
- Supports healthier pond and lake conditions
Improved Water Mixing
- Helps break up stratification
- Promotes even circulation through the water body
- Discourages stagnant conditions
Cleaner Water Conditions
- Helps reduce odors
- Discourages algae growth
- Improves overall water quality appearance
