Kasco

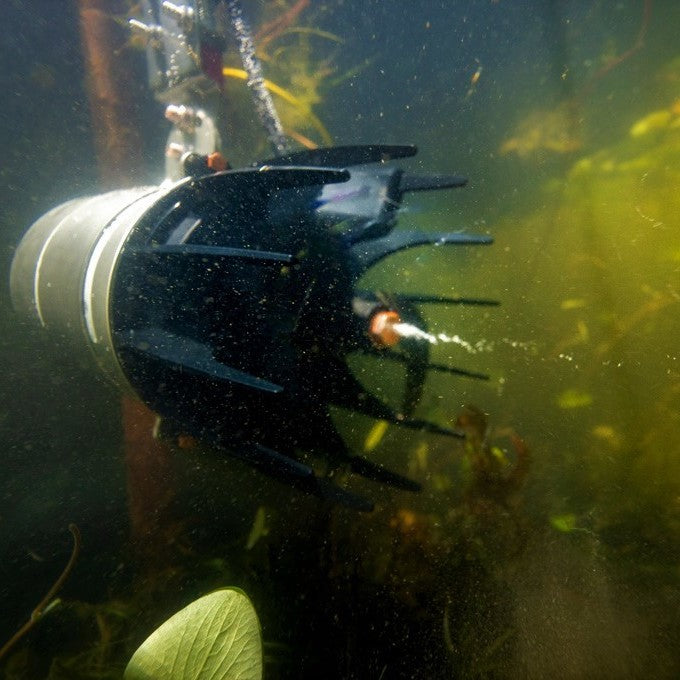

AquatiClear Circulator 4400CDM- UNIVERSAL DOCKING MOUNT
AquatiClear Circulator 4400CDM- UNIVERSAL DOCKING MOUNT
In stock
Starting Price:
Regular price $2,791.72 CAD
Regular price
Sale price
$2,791.72 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
QUICK OVERVIEW
AquatiClear Circulator 4400CDM- UNIVERSAL DOCKING MOUNT is designed for continuous water movement to help clear debris, reduce stagnation, and improve circulation in ponds, lakes, shorelines, docks, and marinas. Featuring Clean Current Technology, 1HP, 120V, and a universal docking mount, it is ideal for fixed dock and shoreline circulation installations.
Warranty
2-Year Coverage
- Applies to all listed 2400, 3400, and 4400 AquatiClear circulator configurations
- Covers 1/2 HP, 3/4 HP, and 1 HP AquatiClear™ units, including controllers
- Includes no-mount, horizontal float mount, and universal dock mount configurations
Covered Configurations
- 2400C, 2400CDM, and 2400CFM
- 3400C / 3400HC, 3400CDM / 3400HCDM, and 3400CFM / 3400HCFM
- 4400C / 4400HC, 4400CDM / 4400HCDM, and 4400CFM / 4400HCFM
Important Conditions
- Coverage applies under normal operating conditions and proper installation
- Kasco only accepts complete assemblies for warranty repair evaluation
- Unauthorized alterations to the unit, control panel, or power cord may void warranty
Warranty coverage is based on current Kasco AquatiClear™ circulator warranty information. Refer to the latest official Kasco documentation for complete terms and repair procedures.
Components Included
Core Unit Components

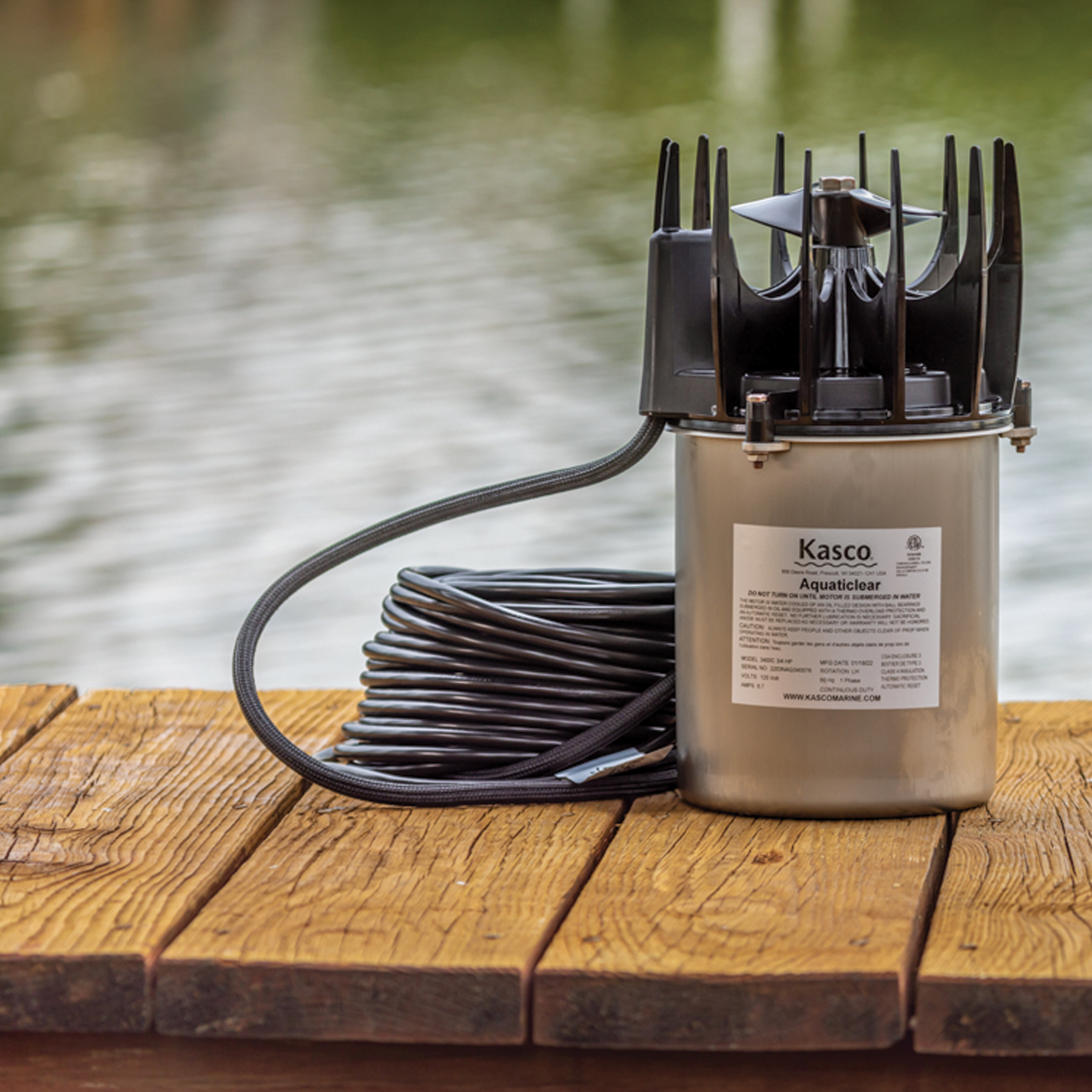

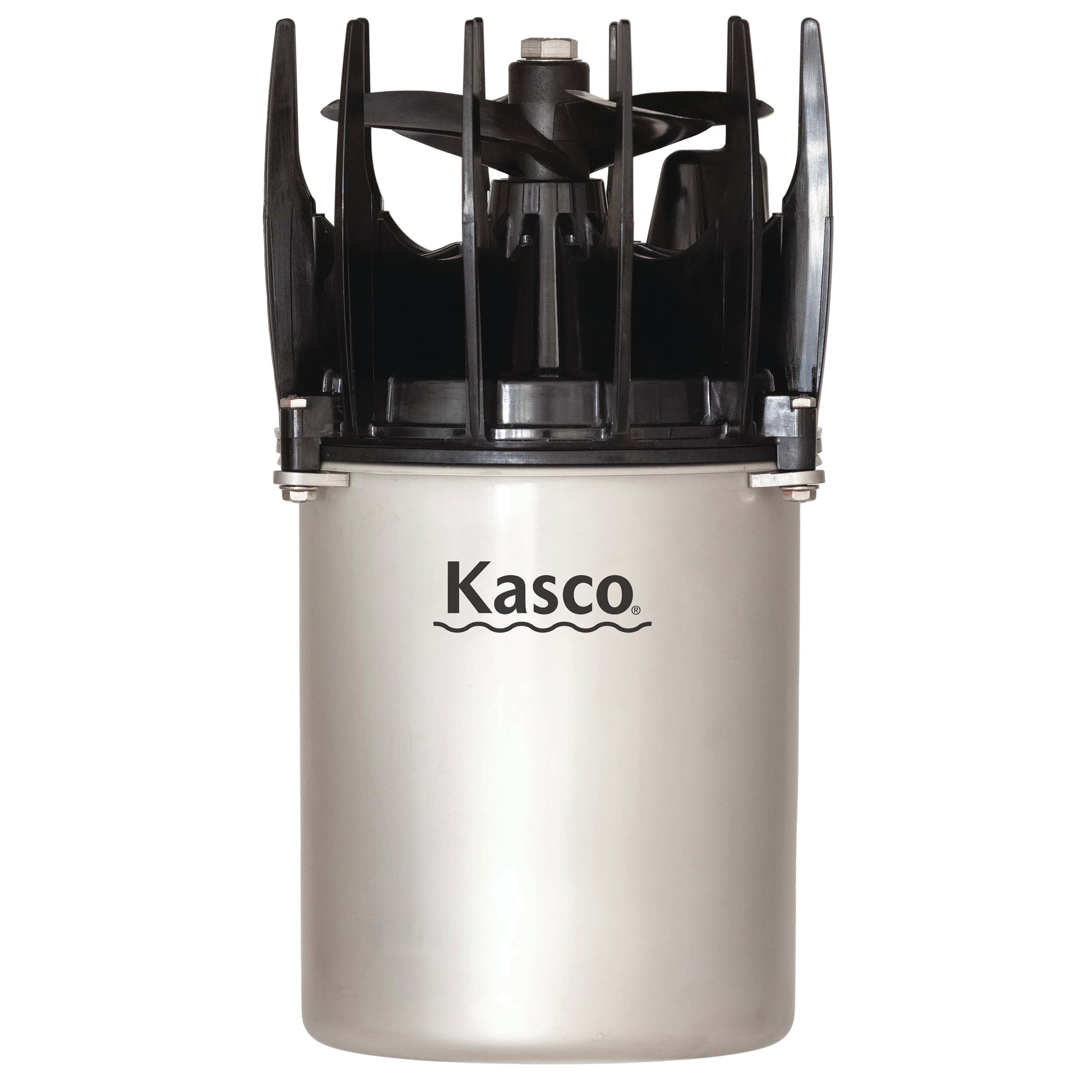

- Oil-cooled stainless steel motor unit
- High-efficiency axial flow propeller
- Composite prop guard
- Carbon-ceramic mechanical seal
- Thermal overload protection
- Sacrificial zinc anode
- Submersible power cord
Horizontal Float Mount Models
- Float assembly
- Stainless steel mounting brackets
- Support frame structure
- Mooring ropes
- Angle adjustment hardware

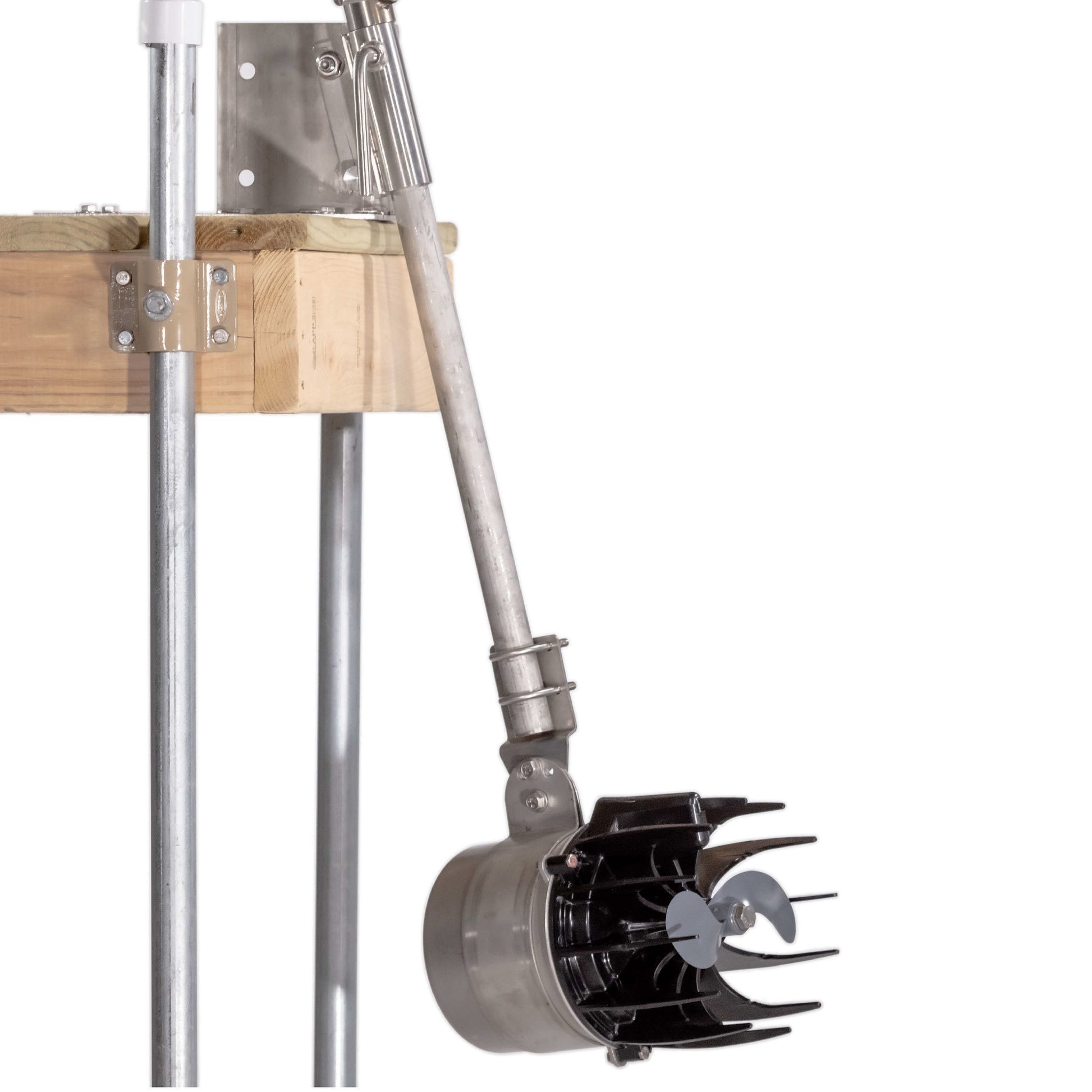

Universal Dock Mount Models
- Universal mounting bracket
- Swivel directional mechanism
- Pipe clamp brackets
- Stainless steel hardware
- Adjustable depth and angle setup
Mounting accessories vary by model. Unit-only versions do not include float or dock mounting systems.
Technical Specifications
| Model | Horsepower | Voltage | Mount Type | Motor Type | Best Use |
|---|---|---|---|---|---|
| 2400C / 2400CFM / 2400CDM | 1/2 HP | 120V | No Mount / Float / Dock | Oil-Cooled | Residential docks and smaller shoreline zones |
| 3400C / 3400HC / 3400CFM / 3400HCFM / 3400CDM / 3400HCDM | 3/4 HP | 120V or 208-240V | No Mount / Float / Dock | Oil-Cooled | Medium circulation areas and marina edges |
| 4400C / 4400HC / 4400CFM / 4400HCFM / 4400CDM / 4400HCDM | 1 HP | 120V or 208-240V | No Mount / Float / Dock | Oil-Cooled | Heavy-duty circulation and debris control |
Need help selecting the right configuration? Choose based on water depth, mounting preference, power availability, and the size of the area you want to circulate.
Kasco aquaticlear circulator manual .pdf
Model Options
The AquatiClear lineup is available in multiple horsepower, voltage, and mounting combinations to suit residential, commercial, and municipal waterfront applications.
No Mount Models
- 2400C
- 3400C / 3400HC
- 4400C / 4400HC
- Ideal for custom mounting systems
Horizontal Float Mount
- 2400CFM
- 3400CFM / 3400HCFM
- 4400CFM / 4400HCFM
- Great for near-surface current movement
Universal Dock Mount
- 2400CDM
- 3400CDM / 3400HCDM
- 4400CDM / 4400HCDM
- Flexible angle, depth, and direction control
Key Features
Durable Motor Construction
- Oil-cooled continuous-duty motor
- Stainless steel motor housing
- Engineered for long service life
Clean Current Technology
- High-efficiency propeller design
- Anti-clog flow pattern
- Moves large volumes of water with low maintenance
Flexible Installation
- Choose dock mount, float mount, or unit only
- Direct current exactly where needed
- Suitable for varying shoreline conditions
