Warranty
2-Year Coverage
- Applies to all LED3C11 Composite light kits
- Covers defects in materials and workmanship under normal use
- Fixtures are permanently sealed — no user maintenance required beyond cleaning
Conditions
- Fixtures must be partially submerged when operating — running lights out of water voids the warranty
- Do not open sealed fixtures; opening the housing voids the warranty
- Install with GFCI-protected power per the owner's manual
Warranty Support
- Fountain Depot is an authorized Kasco repair shop
- We handle warranty evaluation and claims locally in the GTA
- Call 905-752-1226 with your part number and purchase date
Warranty coverage is based on current Kasco Composite LED lighting warranty information. For full terms, exclusions, and repair procedures, refer to the latest official Kasco documentation.
Components Included
LED Fixtures
- 3 sealed composite LED fixtures, 11W each
- Daisy-chain cord with protective sleeving
- Waterproof disconnect cap per fixture
Lenses & Caps
- Red, green, blue, and amber colour lenses
- Lens caps for each fixture
- Classic white output with no lens installed
Power & Mounting
- Main power cord in selected length (50–500 ft)
- Snap-on light clips for Kasco floats
- 3 ft of protective sleeving on main cord
Lights wire into your fountain's control panel (C-25 for 120V systems, or C-85/C-95 and 3-phase panels on larger fountains). Main power cord does not have its own quick disconnect.
Technical Specifications
| Part Number | Cord Length | Fixtures | Fixture Wattage | Colour | Included Lenses | Warranty |
|---|---|---|---|---|---|---|
| LED3C11-050 | 50 ft | 3 | 11W / 910 lm | Classic White | Red, Green, Blue, Amber | 2 Years |
| LED3C11-100 | 100 ft | 3 | 11W / 910 lm | Classic White | Red, Green, Blue, Amber | 2 Years |
| LED3C11-150 | 150 ft | 3 | 11W / 910 lm | Classic White | Red, Green, Blue, Amber | 2 Years |
| LED3C11-200 | 200 ft | 3 | 11W / 910 lm | Classic White | Red, Green, Blue, Amber | 2 Years |
| LED3C11-250 | 250 ft | 3 | 11W / 910 lm | Classic White | Red, Green, Blue, Amber | 2 Years |
| LED3C11-300 | 300 ft | 3 | 11W / 910 lm | Classic White | Red, Green, Blue, Amber | 2 Years |
| LED3C11-400 | 400 ft | 3 | 11W / 910 lm | Classic White | Red, Green, Blue, Amber | 2 Years |
| LED3C11-500 | 500 ft | 3 | 11W / 910 lm | Classic White | Red, Green, Blue, Amber | 2 Years |
Runs on 120VAC 60Hz through your fountain's GFCI-protected control panel — the built-in LED driver in each fixture supplies the operating voltage automatically.

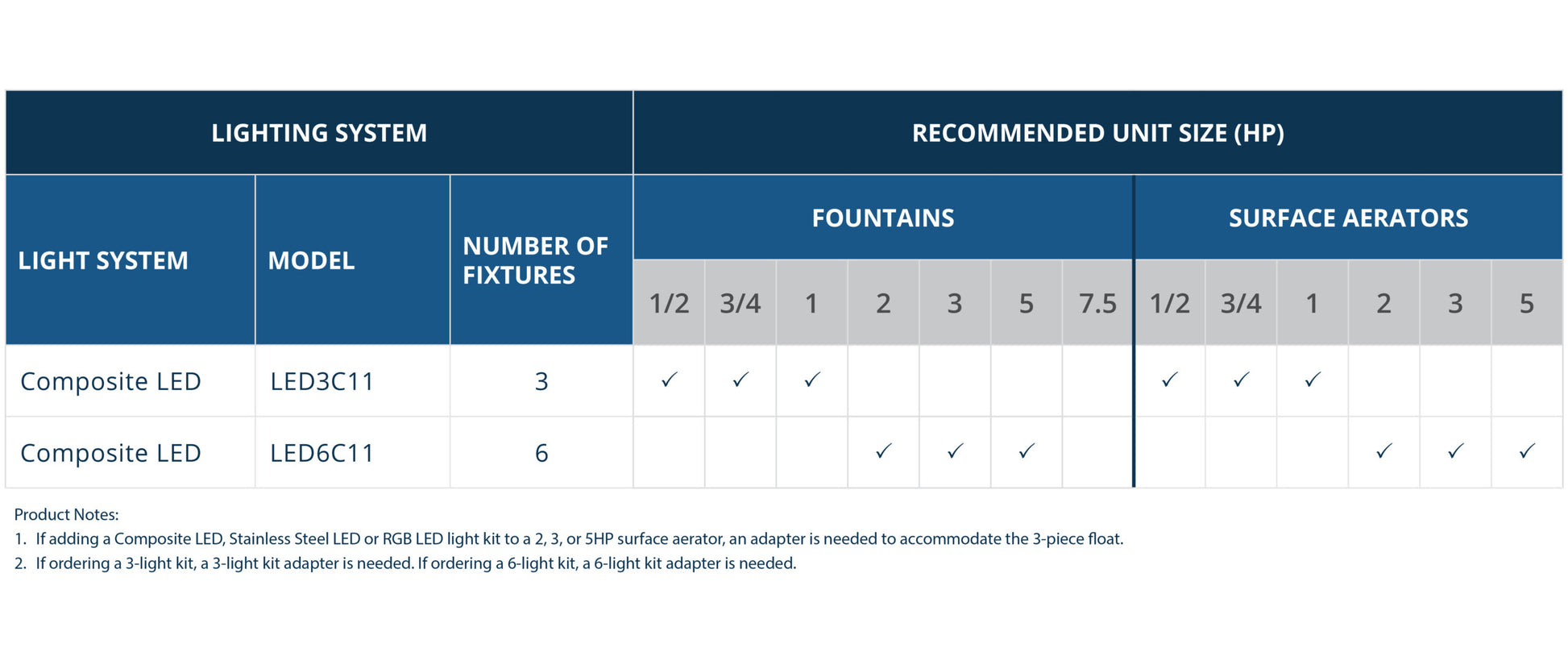

Kasco recommends 3-fixture kits for 1/2–1 HP units and 6-fixture kits for 2–5 HP units. Fixtures must be partially submerged during operation for cooling; running fixtures out of water damages the LED and voids the warranty.
Kasco ledc composite lighting manual.pdf
Model Options
Kasco Composite C11 lighting is offered in 3-, 4-, and 6-fixture kits with cord lengths from 50 to 500 ft — match the kit to your fountain's horsepower and the cord to your fountain's power cord run.
LED3C11 — 3 Fixtures
- Recommended for 1/2, 3/4, and 1 HP units
- Snap-on clips fit Kasco 2400–4400 floats
- This product page
LED4C11 — 4 Fixtures (Universal)
- Designed for non-Kasco fountains
- Universal mounting brackets included
- Same 11W / 910-lumen fixtures
LED6C11 — 6 Fixtures
- Recommended for 2, 3, and 5 HP units
- Full coverage on larger spray patterns
- Adapter needed on 2–5 HP aerator floats
Key Features
Most Durable Fixture Design
- One-piece composite housing
- Ultrasonic-welded, leak-free lenses
- Built for years of in-water operation
5-Colour Display
- Bright classic white, 910 lumens per fixture
- Red, green, blue & amber lenses included
- Lens caps for quick colour changes
Easy Install & Service
- Snap-on light clips mount to the float
- Waterproof disconnect caps at each fixture
- Pull fixtures for winter without removing the cord
