Warranty
3-Year Coverage
- Applies to all LED4S19 Universal Stainless light kits
- Covers defects in materials and workmanship under normal use
- Fixtures are permanently sealed — no user maintenance required beyond cleaning
Conditions
- Fixtures must be partially submerged when operating — running lights out of water voids the warranty
- Do not open sealed fixtures; opening the housing voids the warranty
- Install with GFCI-protected power per the owner's manual
Warranty Support
- Fountain Depot is an authorized Kasco repair shop
- We handle warranty evaluation and claims locally in the GTA
- Call 905-752-1226 with your part number and purchase date
Warranty coverage is based on current Kasco stainless steel LED lighting warranty information. For full terms, exclusions, and repair procedures, refer to the latest official Kasco documentation.
Components Included

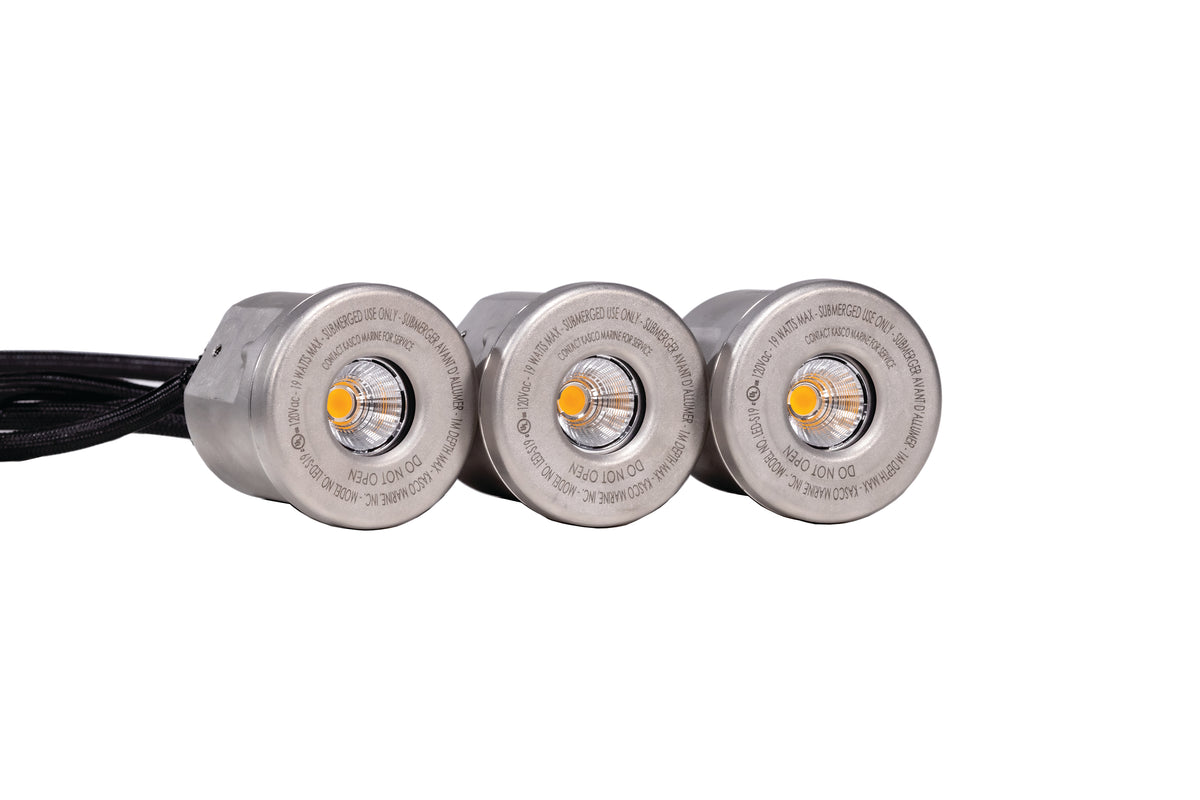

LED Fixtures
- 4 sealed stainless steel LED fixtures, 19W each
- Daisy-chain cord with protective sleeving
- Waterproof disconnect cap per fixture
Lenses & Caps
- Red, green, and blue colour lenses
- Lens caps for each fixture
- Brilliant white output with no lens installed
Power & Universal Mounting
- Main power cord in selected length (50–500 ft)
- Universal mounting brackets with stainless hardware
- Protective sleeving on main cord
Fixtures must be partially submerged in operation for cooling — recheck fixture elevation with the fountain running, as many floats sit lower in the water when operating. Requires a GFCI-protected power source.
Technical Specifications
| Part Number | Cord Length | Fixtures | Fixture Wattage | Housing | Included Lenses | Warranty |
|---|---|---|---|---|---|---|
| LED4S19-050 | 50 ft | 4 | 19W | Stainless Steel | Red, Green, Blue | 3 Years |
| LED4S19-100 | 100 ft | 4 | 19W | Stainless Steel | Red, Green, Blue | 3 Years |
| LED4S19-150 | 150 ft | 4 | 19W | Stainless Steel | Red, Green, Blue | 3 Years |
| LED4S19-200 | 200 ft | 4 | 19W | Stainless Steel | Red, Green, Blue | 3 Years |
| LED4S19-250 | 250 ft | 4 | 19W | Stainless Steel | Red, Green, Blue | 3 Years |
| LED4S19-300 | 300 ft | 4 | 19W | Stainless Steel | Red, Green, Blue | 3 Years |
| LED4S19-400 | 400 ft | 4 | 19W | Stainless Steel | Red, Green, Blue | 3 Years |
| LED4S19-500 | 500 ft | 4 | 19W | Stainless Steel | Red, Green, Blue | 3 Years |
Runs on 120V through a GFCI-protected control panel — the universal bracket assembly adapts the fixtures to any brand of floating fountain.
Fixtures must be partially submerged during operation for cooling; running fixtures out of water damages the LED and voids the warranty. Match the light kit cord length to your fountain's power cord run.
Kasco leds universal lighting manual.pdf
Model Options
Kasco's stainless steel S19 lighting family is offered in 3-, 4-, and 6-fixture kits with cord lengths from 50 to 500 ft — the 4-fixture kit is the universal version for non-Kasco fountains.
LED3S19 — 3 Fixtures
- For Kasco 1/2, 3/4 & 1 HP fountains
- Snap-on clips fit Kasco floats
- See our Stainless Steel 3 LED Light Kit
LED4S19 — 4 Fixtures (Universal)
- Designed for non-Kasco fountains
- Universal mounting brackets included
- This product page
LED6S19 — 6 Fixtures
- For Kasco 2–5 HP fountains
- Full coverage on large spray patterns
- See our Stainless Steel 6 LED Light Kit
Key Features
Fits Any Fountain Brand
- Universal mounting bracket assembly included
- Retrofits non-Kasco floating fountains
- Adjustable fixture positioning
Kasco's Brightest Fixtures
- 4 stainless steel fixtures, 19W each
- Brilliant white output for maximum impact
- Red, green & blue colour lenses included
Built for Harsh Water
- Rugged stainless steel housings
- Sealed fixtures with waterproof disconnects
- 3-year manufacturer warranty
