Warranty
2-Year Coverage
- Applies to 3400JF, 3400HJF, 4400JF, and 4400HJF models
- Covers 3/4 HP and 1 HP J Series fountain units, including controllers
- Designed for standard-duty decorative fountain applications
3-Year Coverage
- Applies to 8400JF and 2.3JF models
- Covers 2 HP J Series fountain units, including controllers
- Extended warranty options may be available on eligible 2 HP units at time of purchase
5-Year Coverage
- Applies to 3.1JF, 3.3JF, 5.1JF, and 5.3JF models
- Covers 3 HP and 5 HP J Series fountain units, including controllers
- Built for higher-capacity commercial and municipal fountain applications
Warranty coverage is based on current Kasco J Series warranty information. For full terms, exclusions, and repair procedures, refer to the latest official Kasco documentation.

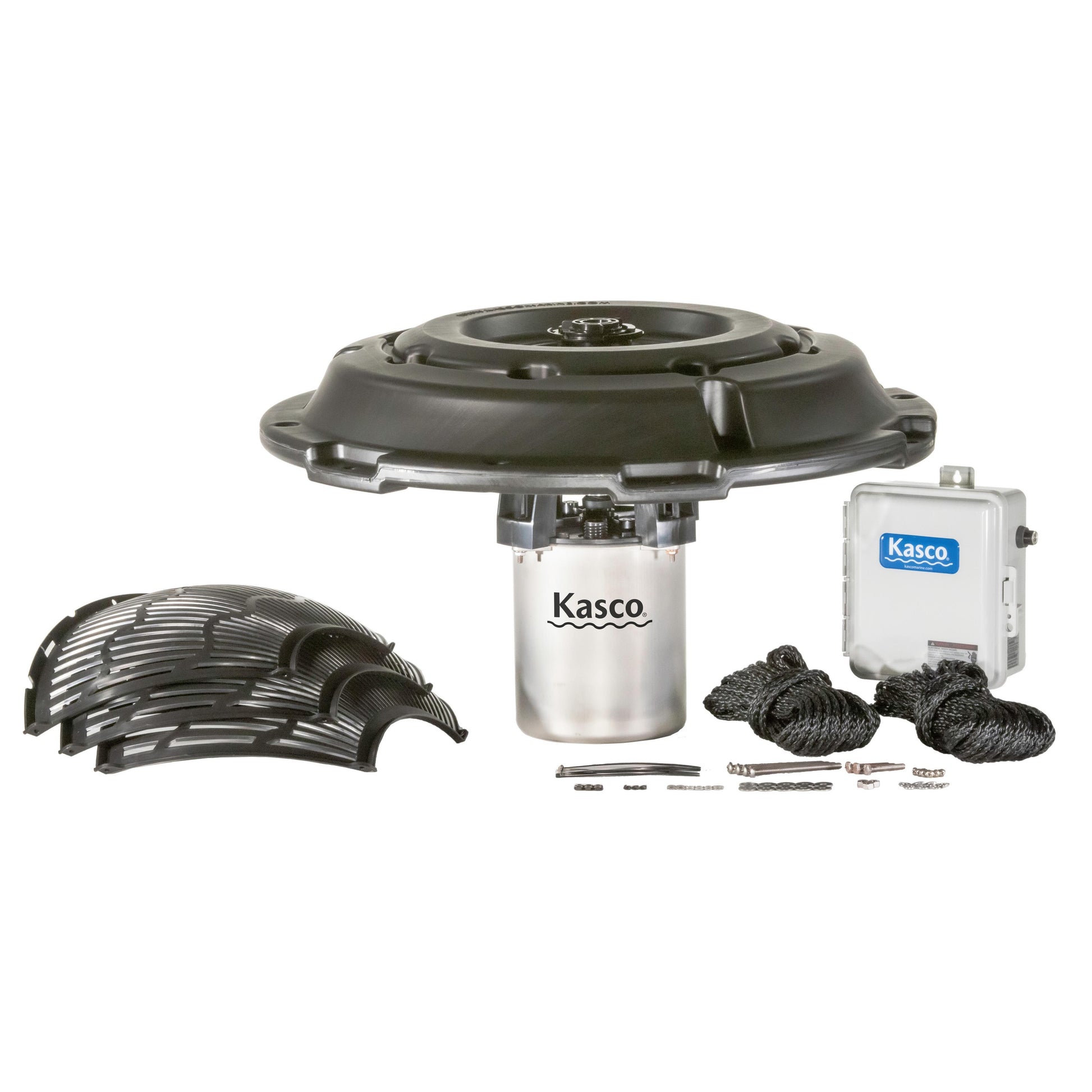

Components Included
Fountain Unit
- Motor and pump assembly
- Oil-cooled continuous-duty design
- High-efficiency water circulation
Float & Mooring System
- Floating support structure
- Mooring lines for positioning
- Stable operation in open water
Nozzle & Power System
- Multi-pattern interchangeable nozzles
- Power cable based on configuration
- Optional lighting and control panels available
Included components vary by horsepower, voltage, and configuration. Lighting kits and control panels are typically selected separately based on project requirements.
Technical Specifications
| Model | HP | Voltage | Phase | Amps | Included Nozzle Patterns | Control Panel | Min. Water Depth | Warranty |
|---|---|---|---|---|---|---|---|---|
| 3400JF | 3/4 | 120V | 1 | 6.7 | 5 | Included | 17.5 in. | 2 Years |
| 3400HJF | 3/4 | 208-240V | 1 | 10.7 | 5 | Included | 17.5 in. | 2 Years |
| 4400JF | 1 | 120V | 1 | 10 | 5 | Included | 17.5 in. | 2 Years |
| 4400HJF | 1 | 208-240V | 1 | 7.5 | 5 | Included | 17.5 in. | 2 Years |
| 8400JF | 2 | 208-240V | 1 | 13.4 | 5 | Included | 17.5 in. | 3 Years* |
| 2.3JF | 2 | 208-240V | 3 | 10.3 | 5 | Included | 17.5 in. | 3 Years* |
| 3.1JF | 3 | 208-240V | 1 | 20 | 5 | Included | 17.5 in. | 5 Years |
| 3.3JF | 3 | 208-240V | 3 | 16 | 5 | Included | 17.5 in. | 5 Years |
| 5.1JF | 5 | 208-240V | 1 | 20 | 5 | Included | 17.5 in. | 5 Years |

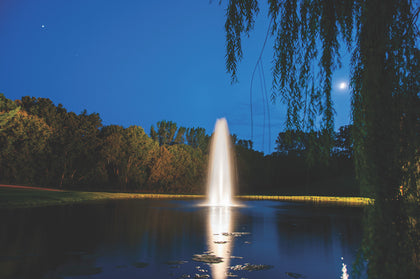

| 5.3JF | 5 | 208-240V | 3 | 20 | 5 | Included | 17.5 in. | 5 Years |
Included Nozzle Pattern Dimensions (H × W)
| Nozzle Pattern | 3/4 HP | 1 HP | 2 HP | 3 HP | 5 HP |
|---|---|---|---|---|---|

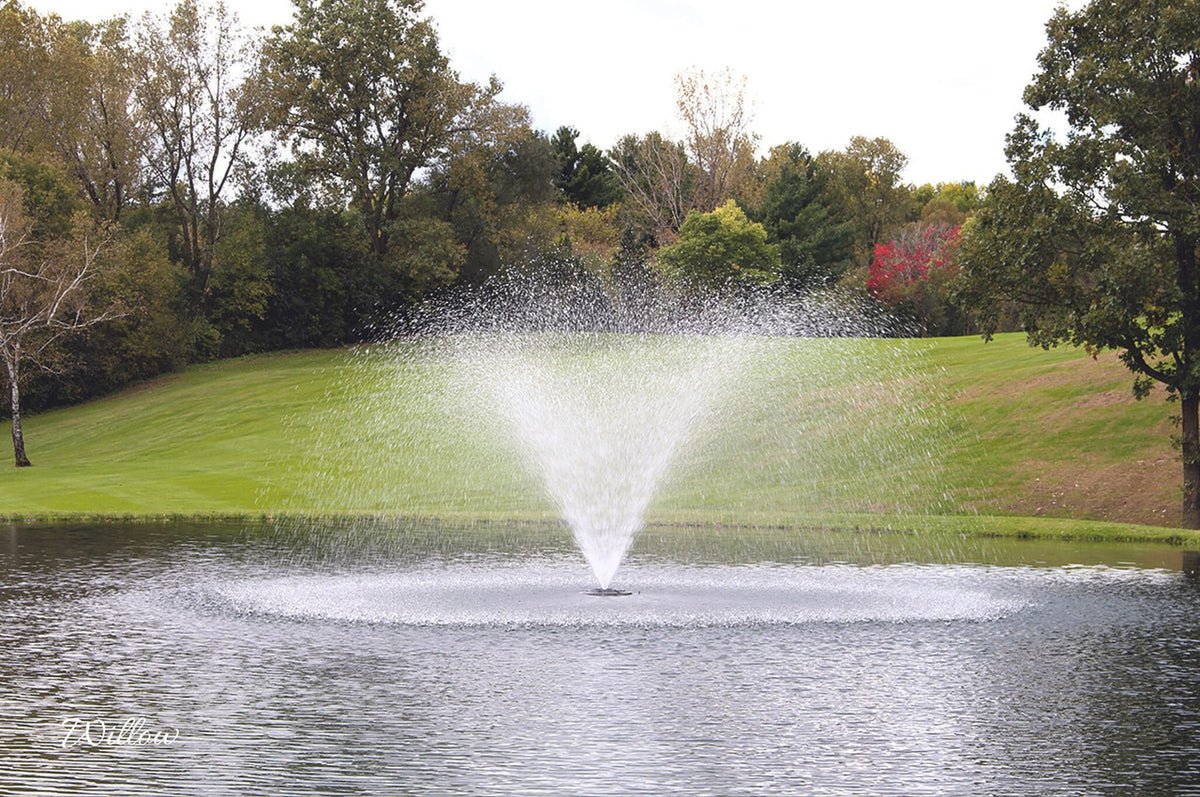

| Willow | 6.5 × 21 ft | 9 × 31 ft | — | — | — |

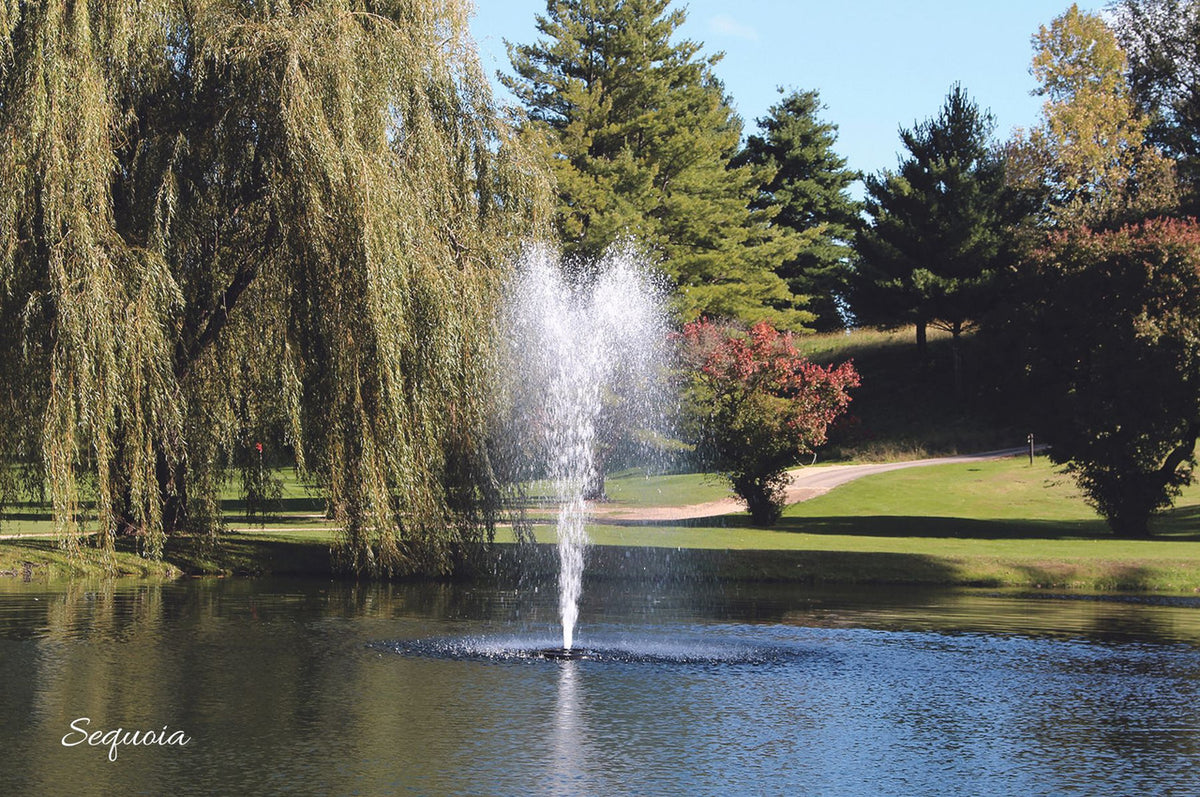

| Sequoia | 13 × 8 ft | 18 × 11 ft | — | — | — |

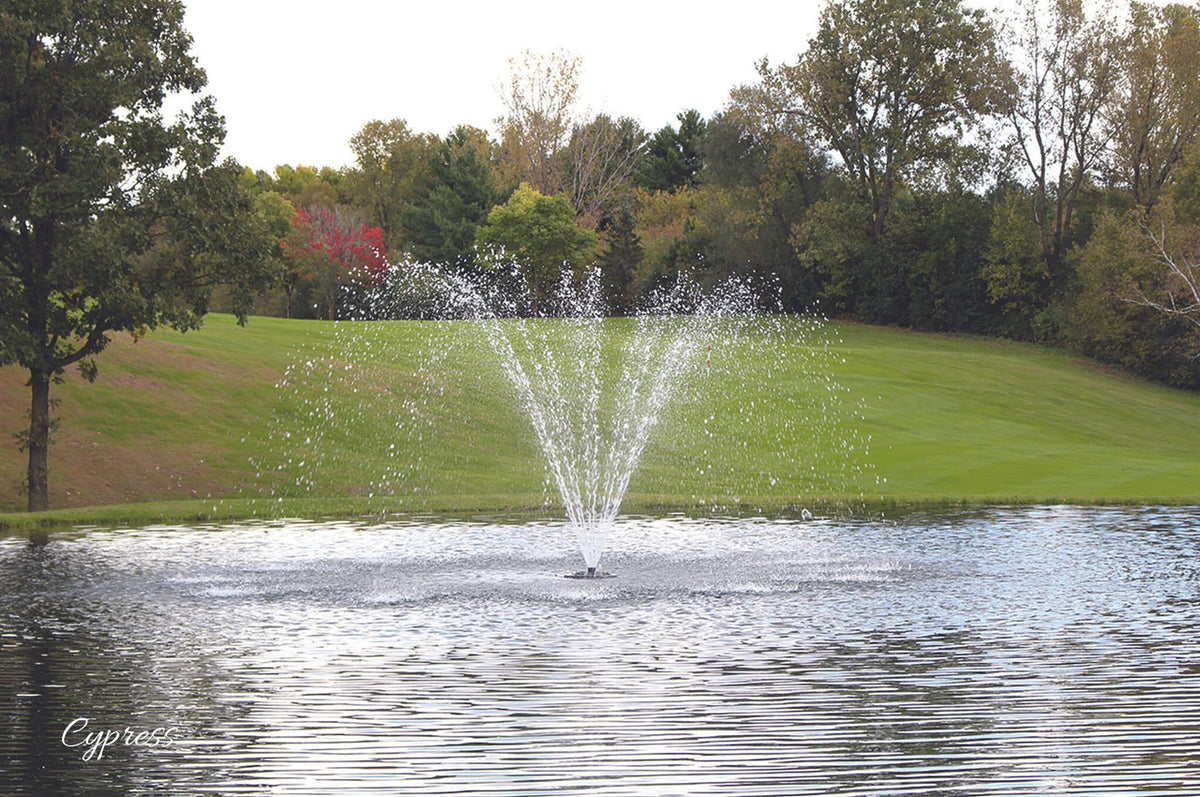

| Cypress | 7 × 17 ft | 9 × 28 ft | — | — | — |

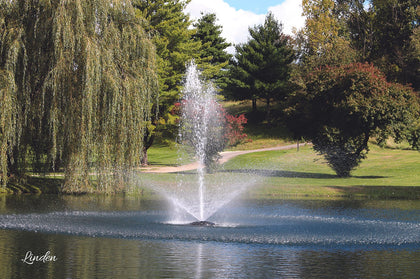

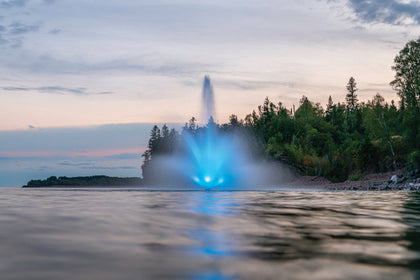

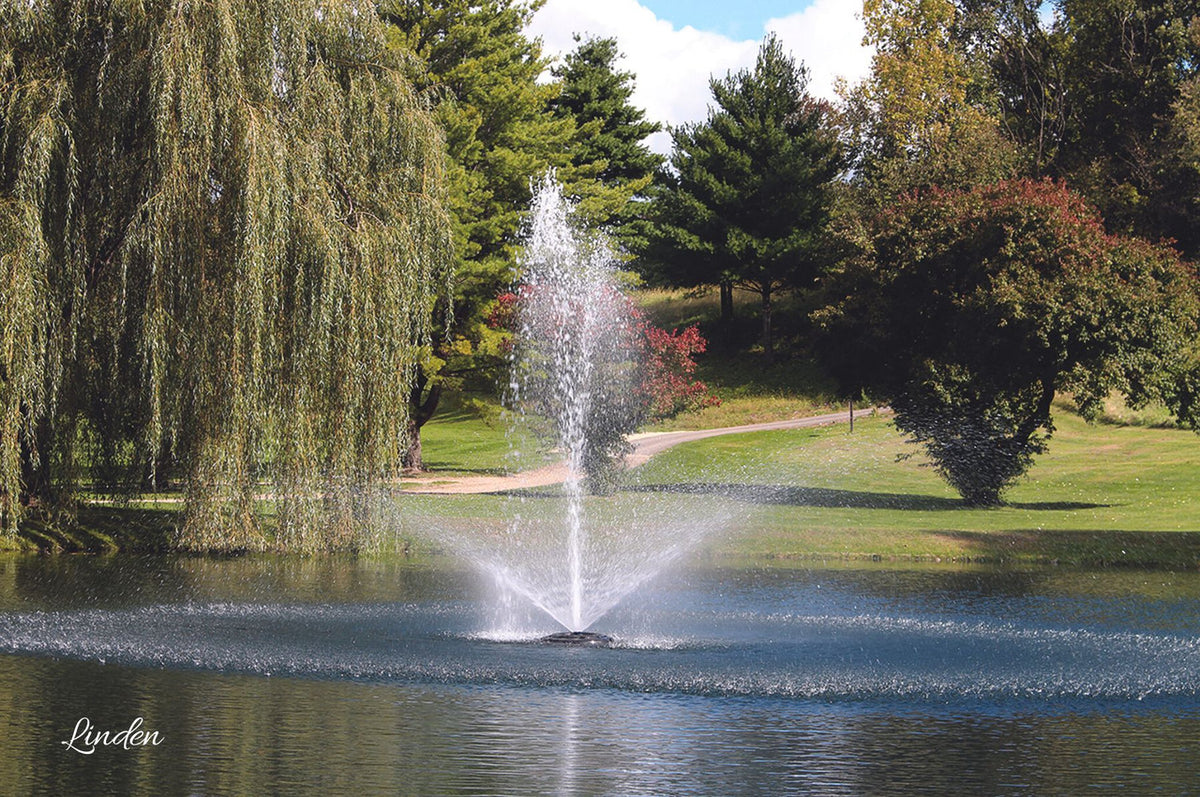

| Linden | 9 × 29 ft | 12 × 31 ft | 15.5 × 38 ft | 20.5 × 38 ft | 24.5 × 46 ft |

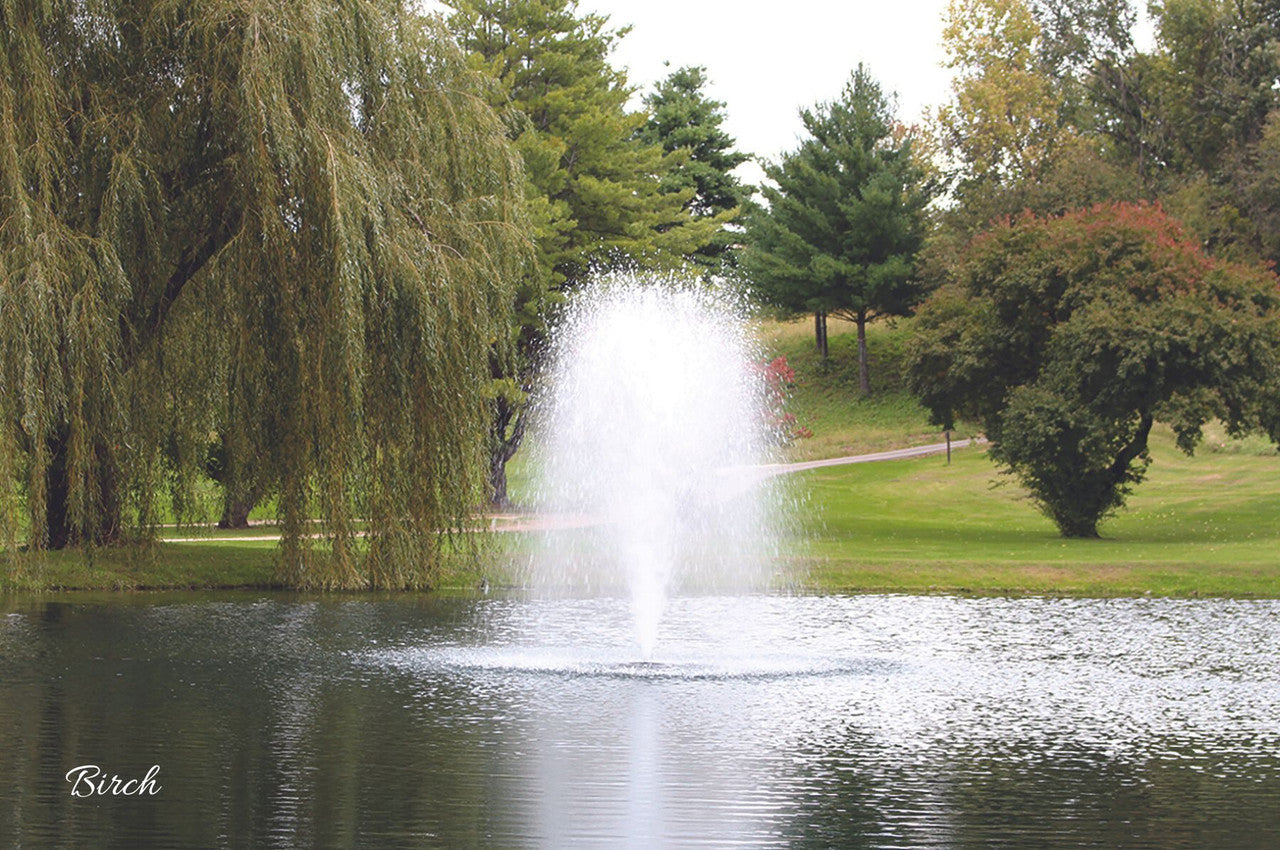

| Birch | 7 × 5 ft | 11 × 8 ft | 11 × 10 ft | 16 × 12 ft | 24 × 14 ft |

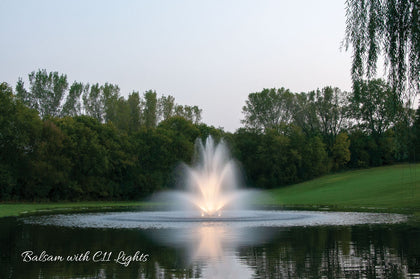

| Balsam | — | — | 14 × 32 ft | 19 × 34 ft | 18 × 34 ft |
| Spruce | — | — | 21 × 10 ft | 26 × 12 ft | 31 × 12 ft |

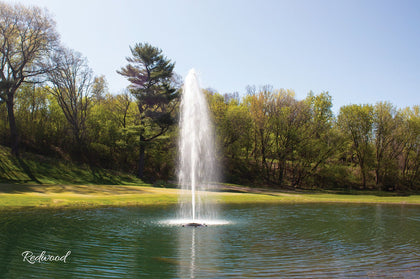

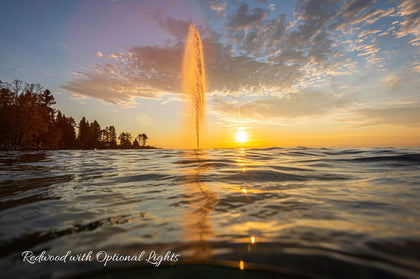

| Redwood | — | — | 22 × 6 ft | 27 × 6 ft | 32 × 6 ft |
Every J Series package includes 5 twist-and-lock nozzle patterns at no extra charge, and premium nozzles are available separately.
*Kasco lists 3/4 and 1 HP models with a 2-year warranty, 2 HP models with a 3-year warranty, and 3 HP and 5 HP models with a 5-year warranty. Kasco also states the fountains operate in as little as 17.5 inches of water and include the unit, float, mooring ropes, power cord, and a control panel with human-rated GFCI protection.
Kasco j series fountain manual .pdf
Model Options
The Kasco JF Series is available in multiple horsepower, voltage, and phase configurations to suit small decorative ponds through large commercial water features.
2400JF / 3400JF
- 1/2 HP and 3/4 HP options
- 120V and 208–240V configurations
- Ideal for smaller decorative ponds
- Entry-level fountain systems
4400JF / 8400JF
- 1 HP and 2 HP models
- Higher spray height and width
- Great for mid to large ponds
- Balanced performance and coverage
2.3JF / 3.1JF / 3.3JF / 5.1JF / 5.3JF
- 2–5 HP high-capacity systems
- Single-phase and three-phase options
- Large-scale decorative applications
- Commercial and municipal use
Key Features
Decorative Multi-Pattern Display
- Multiple interchangeable nozzle patterns
- Creates visually striking water displays
- Enhances lakes, ponds, and landscapes
Aeration + Visual Performance
- Improves water oxygen levels
- Helps reduce algae and stagnation
- Combines aesthetics with function
Heavy-Duty Construction
- Oil-cooled, continuous-duty motor
- Corrosion-resistant components
- Designed for long-term operation
