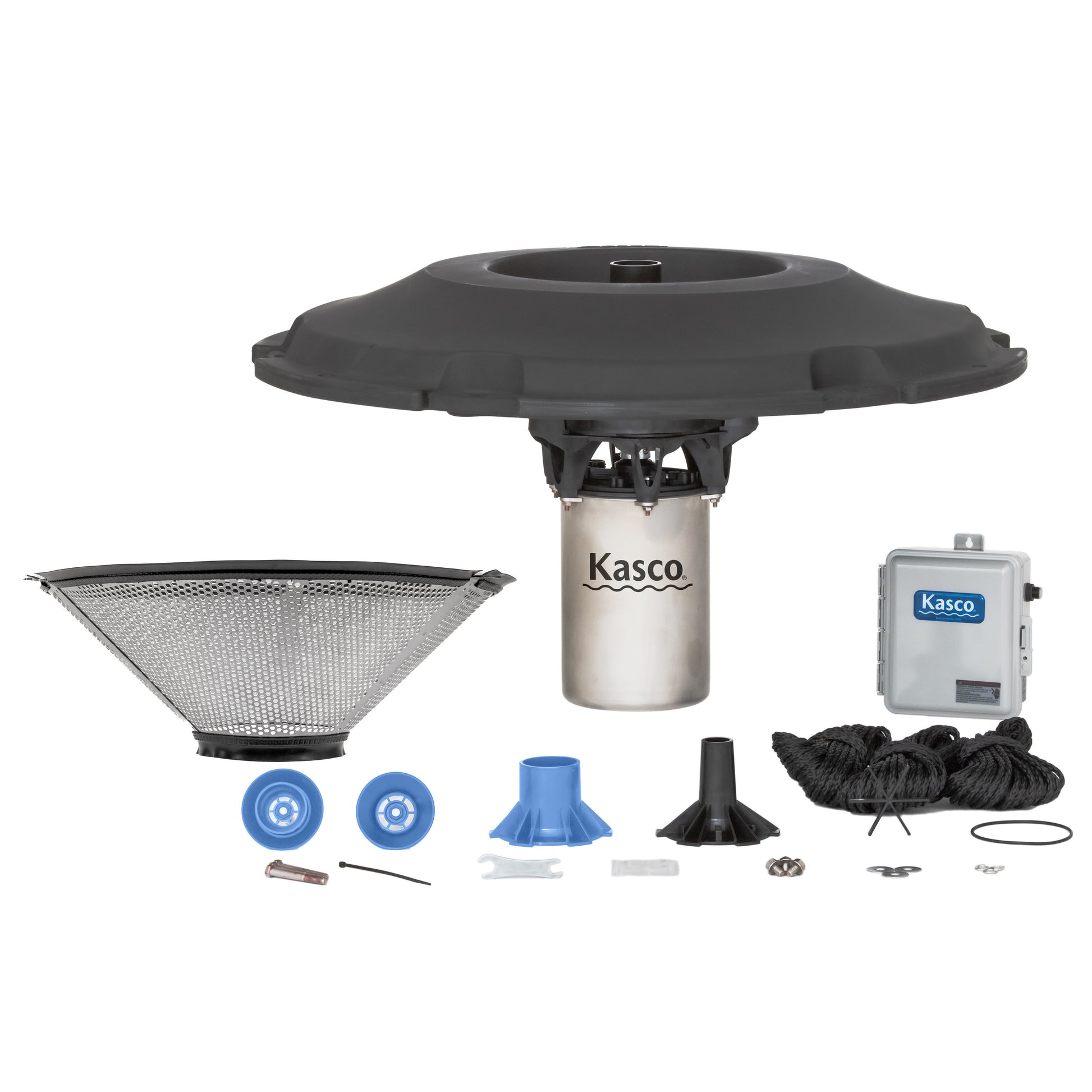

Kasco Floating Pond Fountain Multi-Pattern 8400JF (240V)
- Five interchangeable twist-and-lock nozzle patterns included
- Matched Kasco control panel included with every model
- ETL listed to UL and CSA standards
- Serviced on our own bench in Markham, Ontario
This part ships in a Fountain Depot service kit. Call or text 1-855-752-5795 and we will put the right kit together for your unit.
Small parts are sold in kits that include the matching hardware and service parts.
This part is sold as an add-on. Add a Kasco unit, motor or kit to your cart first, then add this part to the same order.
- Authorized Kasco dealerFull factory warranty honoured
- Certified repair centreFactory-trained bench in Markham
- Ships Canada-wideFree on parcel orders over $250
- A human answersCall or text 1-855-752-5795
Choose Your J-Series Model
Every J-Series fountain includes five interchangeable nozzle patterns and a matched Kasco control panel. Size on surface acreage first, then confirm the voltage and phase available at your site.
120V single-phase - residential
240V single-phase - estate & light commercial
3400HJF - 3/4 HPSame output as the 3400JF on 240V. C-85 panel.From $6,027.90
4400HJF - 1 HPSame output as the 4400JF on 240V. C-85 panel.From $6,773.40
8400JF - 2 HPViewing1 to 2 acres. C-85 panel. 3-year warranty.
3.1JF - 3 HP2+ acres. C-95 panel. 5-year warranty.From $10,539.24
5.1JF - 5 HPLarge water. C-95 panel. 5-year warranty.From $13,184.70
Overview
Kasco Floating Pond Fountain Multi-Pattern 8400JF (240V) is a decorative floating fountain designed to combine strong aeration with dramatic water effects. Built with 2HP and five interchangeable spray patterns, it is ideal for ponds, lakes, and upscale residential, commercial, or municipal water features.
Key Specifications
- Motor: 2 HP, 240V single-phase — substantially taller and wider spray displays than the 1 HP class
- Spray patterns: 5 interchangeable twist-and-lock nozzles included — from tall geysers to wide tiered displays
- Minimum operating depth: 17.5 inches
- Construction: corrosion-resistant stainless steel exterior components with sacrificial zinc anode — safe for saltwater and harsh environments
- Clog resistance: Kasco's water-deflecting nozzle design is the most clog-resistant in its class
- Safety: ETL listed to UL and CSA standards for use in water
- Made in the USA at Kasco's Prescott, Wisconsin facility
Which pond is it right for?
The 8400JF is a step into commercial territory — larger estate ponds, community entrance ponds, and business water features around an acre where the display needs presence. See the full Kasco floating fountain range, or email Info@fountaindepot.com with your pond's size, depth, and distance to power — recommendations backed by 50+ years of fountain installation and service experience.
Complete the installation
Pair with a Kasco 240V control panel for timer and automatic operation, and add a Kasco LED light kit to enjoy the display after dark.
Shipping & Returns
Ships across Canada from stock — delivery typically takes 3 to 5 business days depending on province. Uninstalled units qualify for return within the applicable return period; contact us to arrange.
Specifications 7 models
- Make
- Kasco Marine
- Model
- 8400JF
- Series
- J-Series Multi-Pattern
- Horsepower
- 2 HP
- Voltage
- 240V
- Phase
- Single-phase
- Spray patterns
- 5 interchangeable nozzles
- Control panel
- C-85 included
- Min. water depth
- 17.5 in.
- Certification
- ETL listed to UL & CSA
- Origin
- Made in USA - Prescott, WI
Manuals & drawings
Warranty
- Manufacturer warranty
- 3 years
- Covers
- Fountain unit and controller
- Serviced by
- Our Markham repair centre
- Warranty claims
- Handled in Canada
Electrical connections should be made by a licensed electrician to local code.
Does this fountain include a control panel?
Yes. Every Kasco J-Series fountain ships with its matched control panel - a C-25 on the 120V models, C-85 on 240V single-phase, C-95 at 3 and 5 HP, and CF-3235 on three-phase.
That is not true across the whole Kasco range. Surface aerators, circulators and de-icers ship without one, so check the specification rather than assuming.
What spray patterns are included?
Five interchangeable twist-and-lock nozzles come in the box at no extra charge, so you are not choosing one display at purchase.
Patterns swap in minutes without tools, which means you can change the look between seasons.
Which cord length should I order?
Measure from where the fountain will sit to the actual outlet or panel, not to the nearest shoreline. That difference is where most people come up short.
If you are between two lengths, take the longer one - the cord cannot be extended afterwards.
How do I size a J-Series fountain to my pond?
Start with surface acreage and average depth, then confirm the voltage and phase available at the site - that pair narrows the list faster than anything else.
Send us those numbers and our techs will spec it before you order.
Do I need to remove it for a Canadian winter?
Yes. A floating fountain should come out before freeze-up - ice will damage the float and can shear the unit.
If you want water movement through winter, a de-icer is the purpose-built tool.
What happens if it needs service?
It comes to our bench in Markham. We are a certified Kasco repair centre with factory-trained techs, so warranty work is handled in Canada rather than shipped across the border.
Most failures are a rebuildable part - seals, propellers, o-rings - rather than a write-off.
