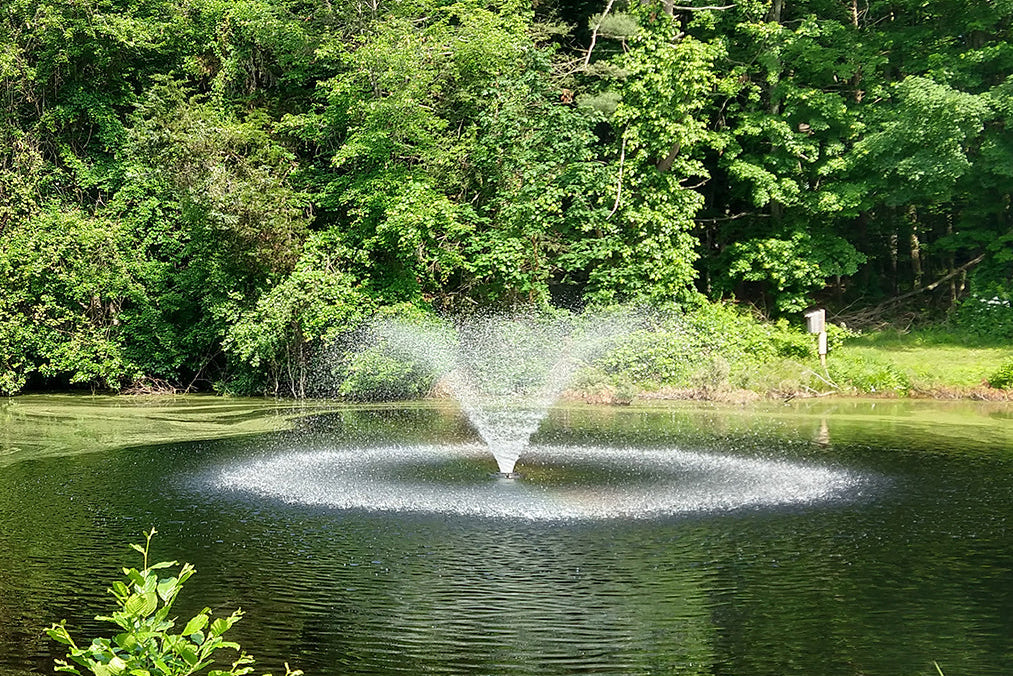

Kasco “V” Pattern 2400VFX Aerating Floating Fountain (120V)
Kasco “V” Pattern 2400VFX Aerating Floating Fountain (120V)
In stock
Starting Price:
Regular price $2,502.04 CAD
Regular price
Sale price
$2,502.04 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
QUICK OVERVIEW
Kasco “V” Pattern 2400VFX Aerating Floating Fountain (120V) is a high-water-volume display aerator designed to create a dramatic fountain pattern while improving circulation and oxygen transfer. Built with , it is ideal for medium to large ponds and lakes requiring strong aeration and visual impact.
Warranty
2-Year Coverage
- Applies to 2400VFX, 3400VFX, 3400HVFX, 4400VFX, and 4400HVFX
- Covers 1/2 HP, 3/4 HP, and 1 HP VFX fountain units, including controllers
- Ideal for small to mid-size decorative aerating fountain applications
3-Year Coverage
- Applies to 8400VFX, 2.3VFX, and 5.1VFX
- Covers 2 HP and 5 HP VFX fountain units, including controllers
- Extended warranty options may be available on eligible 2 HP and 5 HP units at time of purchase
Important Conditions
- Coverage applies under normal operating conditions and proper maintenance
- Use of the correct control panel and original power configuration helps preserve warranty coverage
- Unauthorized alterations to the unit, controller, or power cord may void warranty
Warranty coverage is based on current Kasco VFX Series warranty information. Refer to the latest official Kasco documentation for complete terms, exclusions, and service procedures.

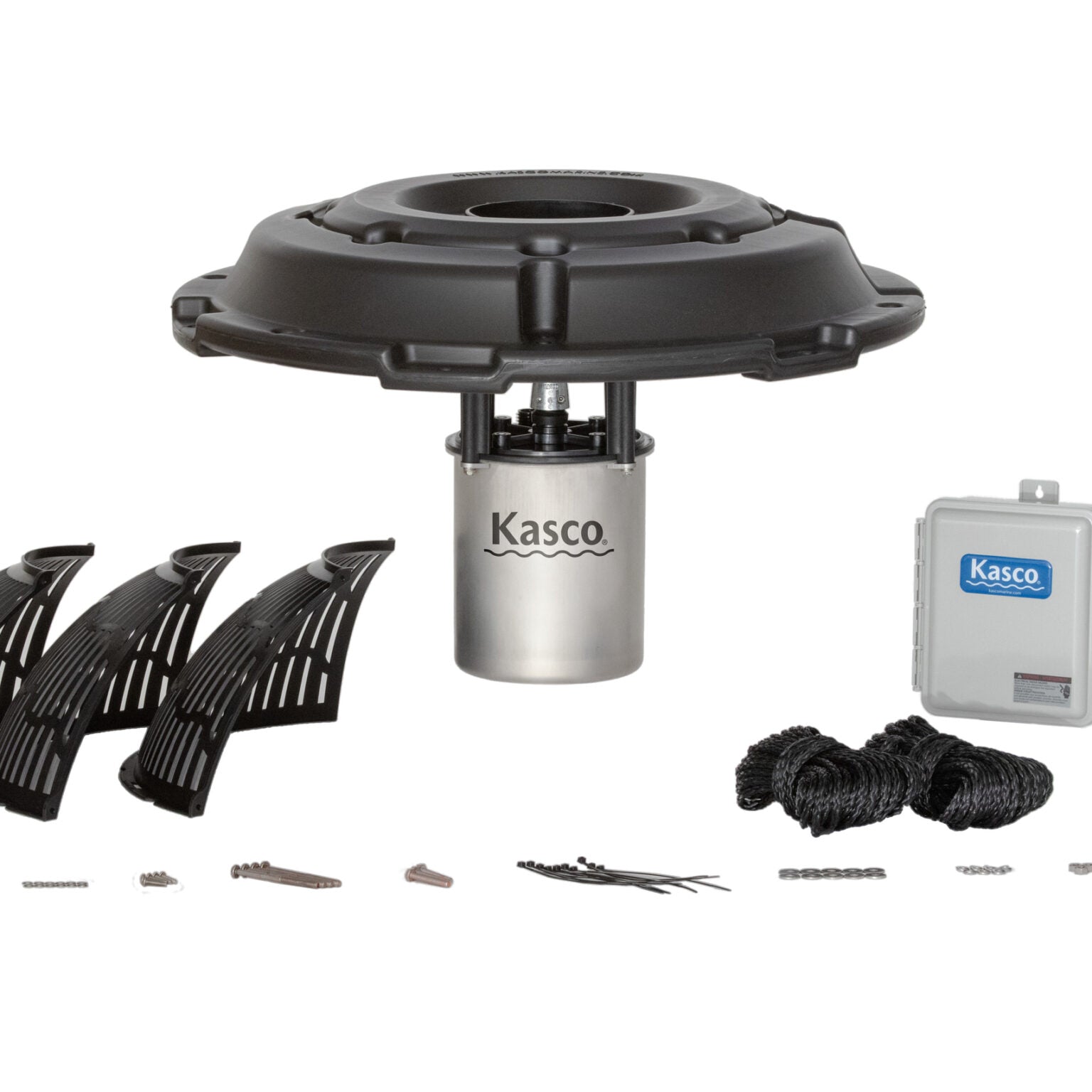

Components Included

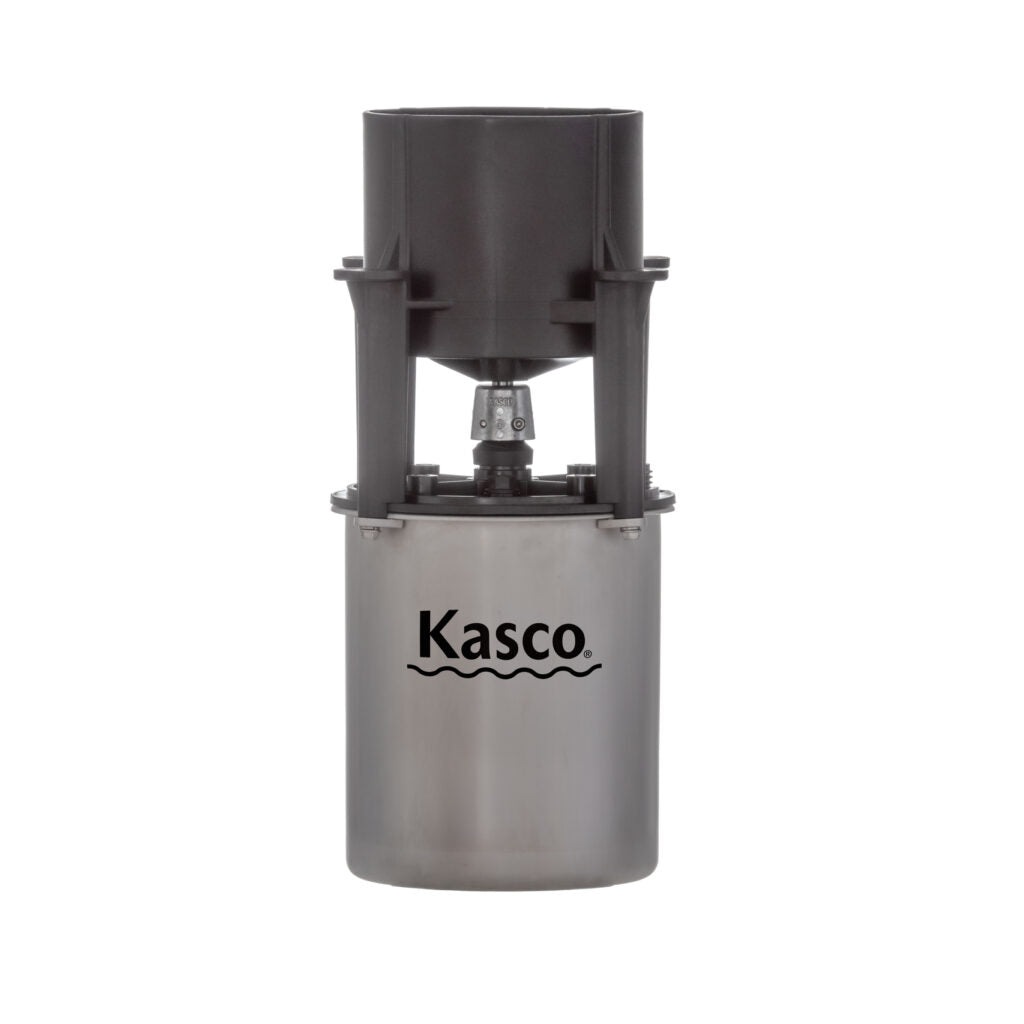

Fountain Unit
- Motor and pump assembly
- Oil-cooled continuous-duty design
- High-efficiency water circulation system
Float & Mooring System
- Heavy-duty float assembly
- Mooring lines for positioning
- Stable operation in open water
Nozzle & Power System
- Fixed V-pattern nozzle
- Power cable based on configuration
- Optional lighting and control panels available
Included components vary by horsepower and voltage configuration. Lighting kits and control panels are typically selected separately based on project requirements.
Technical Specifications
| Model | HP | Voltage / Phase | Amps | Display Height | Display Width | Coverage Radius* | Pond Size Recommendation* | Min Depth | Warranty |
|---|---|---|---|---|---|---|---|---|---|
| 2400VFX | 1/2 HP | 120V / 1Ø | 5.6 A | 5 ft | 15 ft | 7.5 ft | Up to 1/4 acre | 17.5 in. | 2 Years |
| 3400VFX | 3/4 HP | 120V / 1Ø | 7.3 A | 5.5 ft | 21 ft | 10.5 ft | 1/4 to 1/2 acre | 17.5 in. | 2 Years |
| 3400HVFX | 3/4 HP | 208-240V / 1Ø | 3.7 A | 5.5 ft | 21 ft | 10.5 ft | 1/4 to 1/2 acre | 17.5 in. | 2 Years |
| 4400VFX | 1 HP | 120V / 1Ø | 11.3 A | 8 ft | 25 ft | 12.5 ft | 1/2 to 3/4 acre | 17.5 in. | 2 Years |
| 4400HVFX | 1 HP | 208-240V / 1Ø | 5.7 A | 8 ft | 25 ft | 12.5 ft | 1/2 to 3/4 acre | 17.5 in. | 2 Years |
| 8400VFX | 2 HP | 208-240V / 1Ø | 11 A | 8 ft | 32 ft | 16 ft | 3/4 to 1 acre | 17.5 in. | 3 Years* |
| 2.3VFX | 2 HP | 208-240V / 3Ø | 7.5 A | 8 ft | 32 ft | 16 ft | 3/4 to 1 acre | 17.5 in. | 3 Years* |
| 5.1VFX | 5 HP | 208-240V / 1Ø | 20 A | 9 ft | 34 ft | 17 ft | 1 to 2 acres | 17.5 in. | 3 Years* |
V Pattern Display Overview
| Horsepower | Display Height | Display Width | Coverage Radius* | Typical Pond Size* |
|---|---|---|---|---|
| 1/2 HP | 5 ft | 15 ft | 7.5 ft | Up to 1/4 acre |
| 3/4 HP | 5.5 ft | 21 ft | 10.5 ft | 1/4 to 1/2 acre |
| 1 HP | 8 ft | 25 ft | 12.5 ft | 1/2 to 3/4 acre |
| 2 HP | 8 ft | 32 ft | 16 ft | 3/4 to 1 acre |
| 5 HP | 9 ft | 34 ft | 17 ft | 1 to 2 acres |
Kasco VFX fountains combine a clean V-shaped display with aeration benefits. Larger horsepower models increase both the visible spray footprint and the pond size they are best suited for.
*Display height, display width, amps, minimum operating depth, included control panel, and warranty are based on Kasco’s current fountain brochure and VFX manual. Pond size recommendation and coverage radius are practical sizing estimates derived from the published display widths and typical decorative pond applications, not official Kasco ratings. Kasco states VFX units operate in as little as 17.5 inches of water; 1/2, 3/4, and 1 HP models carry a 2-year warranty, while 2 and 5 HP models carry a 3-year warranty with extended coverage available on larger units.
Kasco vfx series fountain manual.pdf
Model Options
The Kasco VFX Series is available in multiple horsepower and voltage configurations to suit small decorative ponds through large commercial water bodies.

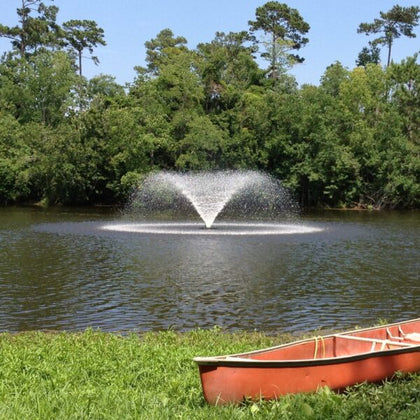

2400VFX / 3400VFX
- 1/2 HP and 3/4 HP options
- 120V or 208–240V configurations
- Ideal for small to medium ponds
- Entry-level decorative aeration systems
4400VFX / 8400VFX
- 1 HP and 2 HP models
- Increased spray height and width
- Designed for larger ponds
- Balanced aeration and display performance

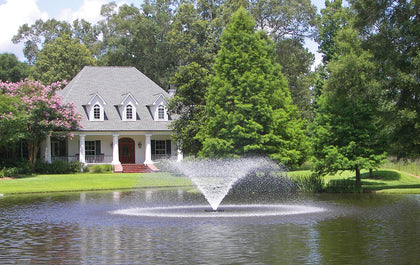

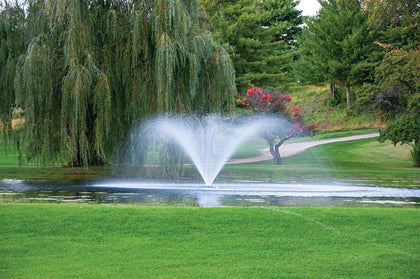

2.3VFX / 5.1VFX
- 2 HP and 5 HP high-capacity systems
- Single-phase and three-phase options
- Commercial and municipal applications
- Maximum display and circulation performance
Key Features
Distinctive V-Shaped Display
- Clean, symmetrical “V” spray pattern
- Designed for maximum visual impact
- Consistent display across all horsepower sizes
Aeration Performance
- Improves oxygen transfer and circulation
- Helps reduce algae and stagnation
- Supports healthier pond ecosystems
Reliable Construction
- Oil-cooled, continuous-duty motor
- Built for long-term outdoor operation
- Corrosion-resistant components
