Kasco
Kasco “V” Pattern 5.1VFX Aerating Floating Fountain (240V)
Price in CAD. Ships across Canada from Markham, Ontario.
Not sure this is the right model? Ask our techsYour control panel is included
This unit ships with its Kasco control panel, so it is ready to run. The usual next addition is a matched LED light kit - it turns a daytime feature into an evening one.
Browse matching light kits ›Choose Your VFX Model
The VFX line trades display height for water movement - a single wide V pattern built to aerate rather than decorate. Every model includes a matched Kasco control panel. Size on surface acreage, then confirm the supply at your site.
120V single-phase - residential
240V single-phase - estate & commercial
3400HVFX - 3/4 HPSame output as the 3400VFX on 240V. C-85 panel.From $5,555.04
4400HVFX - 1 HPSame output as the 4400VFX on 240V. C-85 panel.From $5,958.32
8400VFX - 2 HPC-85 panel. 3-year warranty.From $9,418.86
5.1VFX - 5 HPViewingLargest single-phase. C-95 panel. 3-year warranty.240V three-phase - commercial & municipal
Description

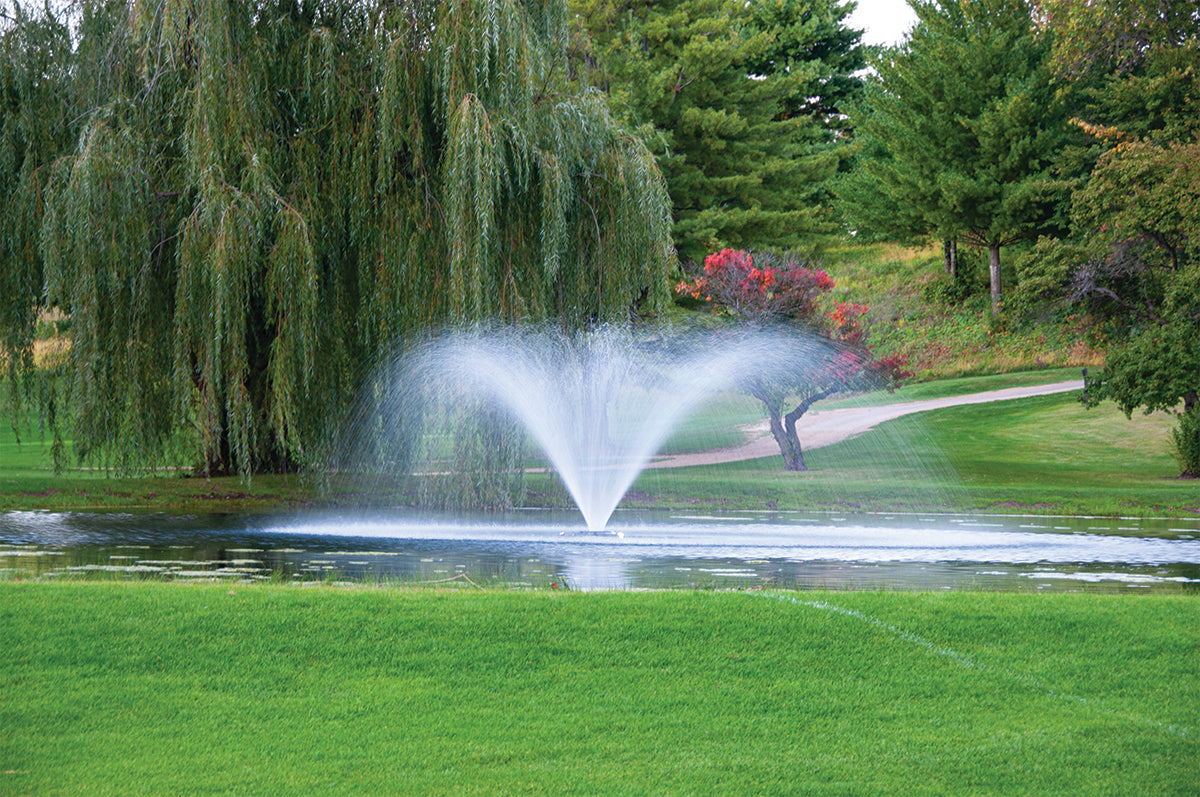

Kasco “V” Pattern 5.1VFX Aerating Floating Fountain (240V) is a high-water-volume display aerator designed to create a dramatic fountain pattern while improving circulation and oxygen transfer. Built with 5 HP, it is ideal for large ponds and lakes requiring strong aeration and visual impact.
Key Specifications
- Motor: 5 HP, 240V single-phase — the top of the VFX range on single-phase power
- Spray: signature V-shaped pattern that moves high water volume for maximum oxygen transfer — aeration-first design
- Construction: corrosion-resistant stainless steel exterior components with sacrificial zinc anode — safe for saltwater and harsh environments
- Clog resistance: Kasco's water-deflecting design resists debris clogging
- Safety: ETL listed to UL and CSA standards for use in water
- Made in the USA at Kasco's Prescott, Wisconsin facility
Fountain or aerator? Why VFX
Choose the VFX series when water quality is the priority: the V-pattern moves more water per horsepower than decorative multi-pattern units, making it the workhorse for algae-prone and oxygen-poor lakes — while still giving a landmark display. Compare the full Kasco V-Pattern range, or email Info@fountaindepot.com with your pond's size and depth — recommendations backed by 50+ years of fountain installation and service experience.
Complete the installation
Pair with a Kasco 240V control panel for timer operation, and add a Kasco LED light kit for evening display.
Shipping & Returns
Ships across Canada from stock — delivery typically takes 3 to 5 business days depending on province. Uninstalled units qualify for return within the applicable return period; contact us to arrange.
Specification
- Make
- Kasco Marine
- Model
- 5.1VFX
- Series
- VFX V-Pattern Aerating
- Horsepower
- 5 HP
- Voltage
- 240V
- Phase
- Single-phase
- Spray pattern
- Single V pattern
- Control panel
- C-95 included
- Certification
- ETL listed to UL & CSA
- Origin
- Made in USA - Prescott, WI
Technical Information
Warranty
- Manufacturer warranty
- 3 years
- Covers
- Fountain unit and controller
- Serviced by
- Our Markham repair centre
- Warranty claims
- Handled in Canada
Before you order
Questions our techs answer every week
Purpose. The VFX line produces a single wide V pattern built to move water and drive oxygen exchange. The J-Series is a display fountain with five interchangeable patterns.
If the unit is going in because the water has a problem, VFX is the right line. If it is going in to be looked at, start with the J-Series.
Yes. Every VFX ships with a matched Kasco panel - C-25 on the 120V models, C-85 on 240V single-phase, C-95 on the 5.1VFX and CF-3235 on the three-phase 2.3VFX.
Not on deep water. A surface unit works the top few feet; below roughly eight feet the column can still stratify through a hot Ontario August.
On deeper ponds pair it with diffused aeration, or run both on larger water.
Surface acreage and average depth first, then the voltage and phase available at the site.
Send us those numbers and we will spec the horsepower and cord length before you order.
Yes. Like any floating unit it should come out before freeze-up. Ice will damage the float and can shear the unit.
For winter water movement, use a de-icer instead.
Two years on the 2400, 3400 and 4400 models, three years on the 8400VFX, 2.3VFX and 5.1VFX.
Worth noting the 5.1VFX carries three years where the equivalent 5.1JF carries five - Kasco warrants the two lines differently.
