Aqua Control Select Series 2 Aerator (230V/1P) – Delmar Double Arches
Aqua Control Select Series 2 Aerator (230V/1P) – Delmar Double Arches
In stock
Starting Price:
Regular price $9,640.04 CAD
Regular price
Sale price
$9,640.04 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
QUICK OVERVIEW

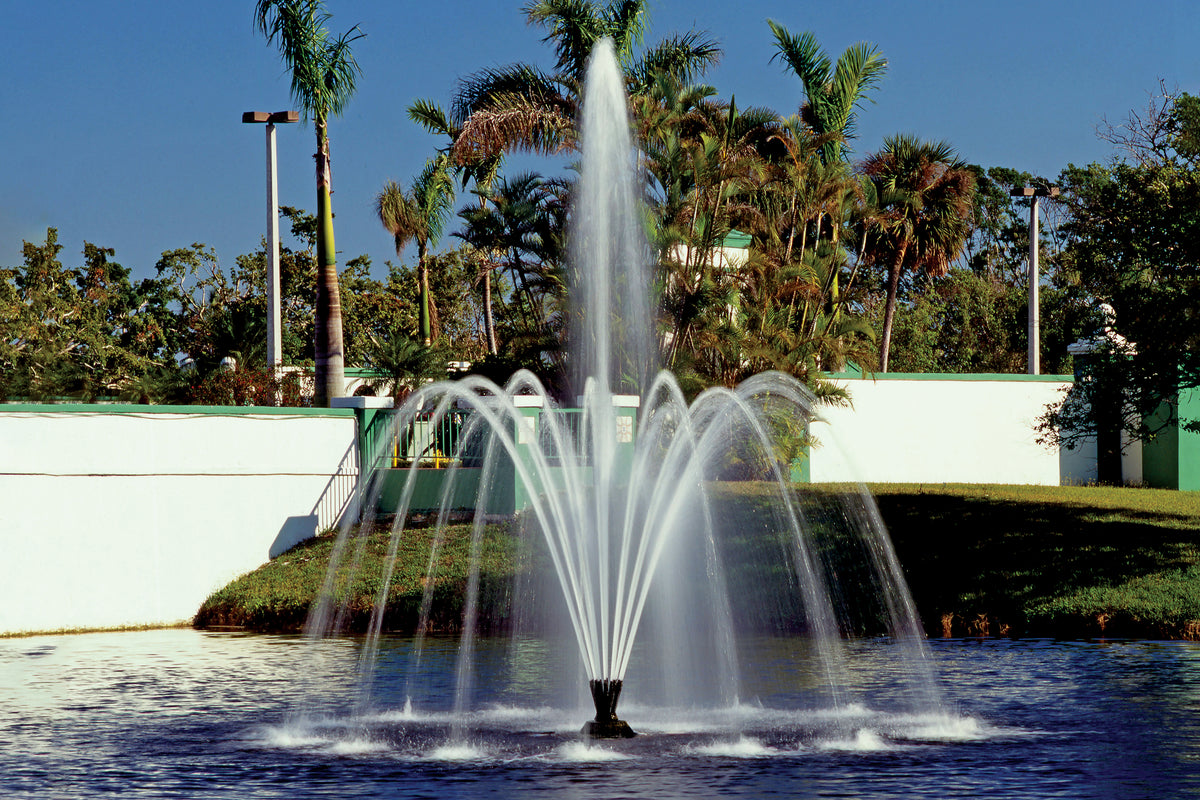

Aqua Control Select Series 2 Aerator (230V/1P) – Delmar Double Arches is a premium display aerator engineered to combine high pumping-rate performance with a distinctive water pattern. Built for 230V / 1-phase operation on the Aqua Control Select Series 2 platform, it creates a center plume framed by dual rings of balanced arching streams while promoting strong circulation and oxygen transfer. Ideal for ponds, lakes, golf courses, and commercial water features, it delivers both improved water quality and striking visual presence.
Warranty
3-Year Coverage
- Applies to Select Series 2 Display Aerator units in both 230V single-phase and three-phase configurations
- Covers the main Select Series 2 unit for 3 years
- Control panel components also carry a 3-year warranty when supplied with the system
Optional Extended Protection
- Aqua Control publishes an optional 2-year extended warranty for Select Series 2 units at the time of purchase
- Helps support longer-term ownership on larger decorative aeration installations
- Availability should be confirmed with the manufacturer or distributor before ordering
Important Conditions
- Coverage applies under proper installation, voltage, flow, and operating conditions
- Improper installation, freezing damage, alteration, and unauthorized repair can void warranty
- Notify the distributor first if a warranty issue is suspected so factory support can guide next steps
Warranty coverage is based on current Aqua Control Select Series 2 warranty information. Refer to the latest official Aqua Control documentation for full terms, exclusions, and claim procedures.
Components Included
Aerator Pump System
- High-efficiency motor and pump assembly
- Designed for aeration performance
- Continuous-duty operation
Float & Mooring Assembly
- Heavy-duty float platform
- Mooring lines for positioning
- Stable performance in open water
Nozzle & Display System
- Pattern-specific nozzle assemblies
- Engineered for aeration + display balance
- Lighting compatibility available
Included components vary based on phase configuration (1P or 3P) and selected spray pattern. Lighting and control systems are typically configured separately depending on project requirements.
Technical Specifications
| Pattern | Voltage / Phase | 1 HP | 2 HP | 3 HP | 5 HP | GPM Range | Min Depth |
|---|---|---|---|---|---|---|---|
| Cluster Arches | 230V / 1P or 3P | 8' H × 16' D | 12' H × 24' D | 14' H × 28' D | 20' H × 40' D | 250–500 GPM | 32"–44" vertical / 28" horizontal |
| Crown Gusher | 230V / 1P or 3P | 9' H × 12' D | 11' H × 16' D | 15' H × 22' D | 20' H × 27' D | 250–500 GPM | 32"–44" vertical / 28" horizontal |
| Daffodil | 230V / 1P or 3P | 10' H × 25' D | 12' H × 30' D | 14' H × 36' D | 20' H × 54' D | 250–500 GPM | 32"–44" vertical / 28" horizontal |
| Delmar | 230V / 1P or 3P | 9' H × 10' D | 12' H × 13' D | 14' H × 15' D | 22' H × 26' D | 250–500 GPM | 32"–44" vertical / 28" horizontal |
| Double Arch | 230V / 1P or 3P | 8' H × 18' D | 12' H × 22' D | 15' H × 32' D | 20' H × 48' D | 250–500 GPM | 32"–44" vertical / 28" horizontal |
| Quad | 230V / 1P or 3P | 9' H × 25' D | 11' H × 36' D | 15' H × 44' D | 22' H × 60' D | 250–500 GPM | 32"–44" vertical / 28" horizontal |
| Scepter | 230V / 1P or 3P | 9' H × 7' D | 12' H × 9' D | 15' H × 12' D | 22' H × 18' D | 250–500 GPM | 32"–44" vertical / 28" horizontal |
| Spider and Arch | 230V / 1P or 3P | 8' H × 30' D | 12' H × 45' D | 16' H × 60' D | 24' H × 80' D | 250–500 GPM | 32"–44" vertical / 28" horizontal |
| Super Lily | 230V / 1P or 3P | 8' H × 30' D | 10' H × 35' D | 12' H × 40' D | 16' H × 50' D | 250–500 GPM | 32"–44" vertical / 28" horizontal |
| Tornado | 230V / 1P or 3P | 7' H × 20' D | 10' H × 28' D | 13' H × 35' D | 18' H × 45' D | 250–500 GPM | 32"–44" vertical / 28" horizontal |
| Trillium | 230V / 1P or 3P | 9' H × 15' D | 12' H × 22' D | 16' H × 30' D | 24' H × 38' D | 250–500 GPM | 32"–44" vertical / 28" horizontal |
| Triple Tier | 230V / 1P or 3P | 9' H × 18' D | 12' H × 24' D | 14' H × 28' D | 18' H × 36' D | 250–500 GPM | 32"–44" vertical / 28" horizontal |
| Weeping Willow | 230V / 1P or 3P | 8' H × 12' D | 12' H × 18' D | 18' H × 25' D | 24' H × 30' D | 250–500 GPM | 32"–44" vertical / 28" horizontal |
Base Motor & Electrical Specifications
| HP | Output (GPM) | 230V / 1P Amps | 230V / 3P Amps | Minimum Operating Depth |
|---|---|---|---|---|
| 1 HP | 250 GPM | 10 A | 5 A | 32" vertical / 28" horizontal |
| 2 HP | 350 GPM | 13 A | 9 A | 44" vertical / 28" horizontal |
| 3 HP | 450 GPM | 17 A | 12 A | 44" vertical / 28" horizontal |
| 5 HP | 500 GPM | 28 A | 20 A | 44" vertical / 28" horizontal |
Aqua Control Select Series 2 Display Aerators use axial-flow pumps designed to move large volumes of water at moderate pressure, giving these patterns both decorative impact and strong aeration performance. 230V single-phase and 230V three-phase options are available across the published horsepower range.
Manufacturer naming note: Aqua Control’s current published Select Series 2 materials verify patterns such as Delmar, Double Arch, Spider & Arch, Super Lily, Trillium, Triple Tier, Weeping Willow, Quad, Scepter, Cluster Arch, Crown Gusher, Daffodil, and Tornado. I did not add 460V specs, per your request. I also did not add separate rows for “Ventilator” or “Falling Water Lily” because I could not verify those exact names in Aqua Control’s current published manufacturer materials.
Aqua control service manual chapter select series display aerators instructions.pdf
Model Options
The Select Series 2 Aerators offer a wide range of decorative aeration spray patterns, available in both single-phase and three-phase configurations for different installation and performance requirements.
Vertical & Geyser Styles
- Ventilator – Strong aeration plume
- Tornado – Twisting vertical pattern
- Crown Gusher – Wide upward spray
- Daffodil – Compact vertical bloom
Classic Decorative Patterns
- Super Lily – Rounded layered spray
- Scepter – Elegant structured display
- Trillium – Balanced multi-tier pattern
- Falling Water Lily – Smooth cascading effect
Wide Coverage Designs
- Spider & Arch – Long outward arcs
- Cluster Arches – Multi-arc grouping
- Double Arch / Delmar – Symmetrical arcs
- Quad / Triple Tier – Multi-direction coverage
- Weeping Willow – Soft wide drooping spray
Key Features
Aeration-Focused Performance
- Designed to maximize oxygen transfer
- Promotes strong surface circulation
- Improves overall water quality
Decorative Aerator Displays
- Combines aeration with visual appeal
- Multiple spray pattern options available
- Suitable for ponds and lakes
Reliable Industrial Design
- Continuous-duty motor system
- Built for long-term operation
- Corrosion-resistant construction
