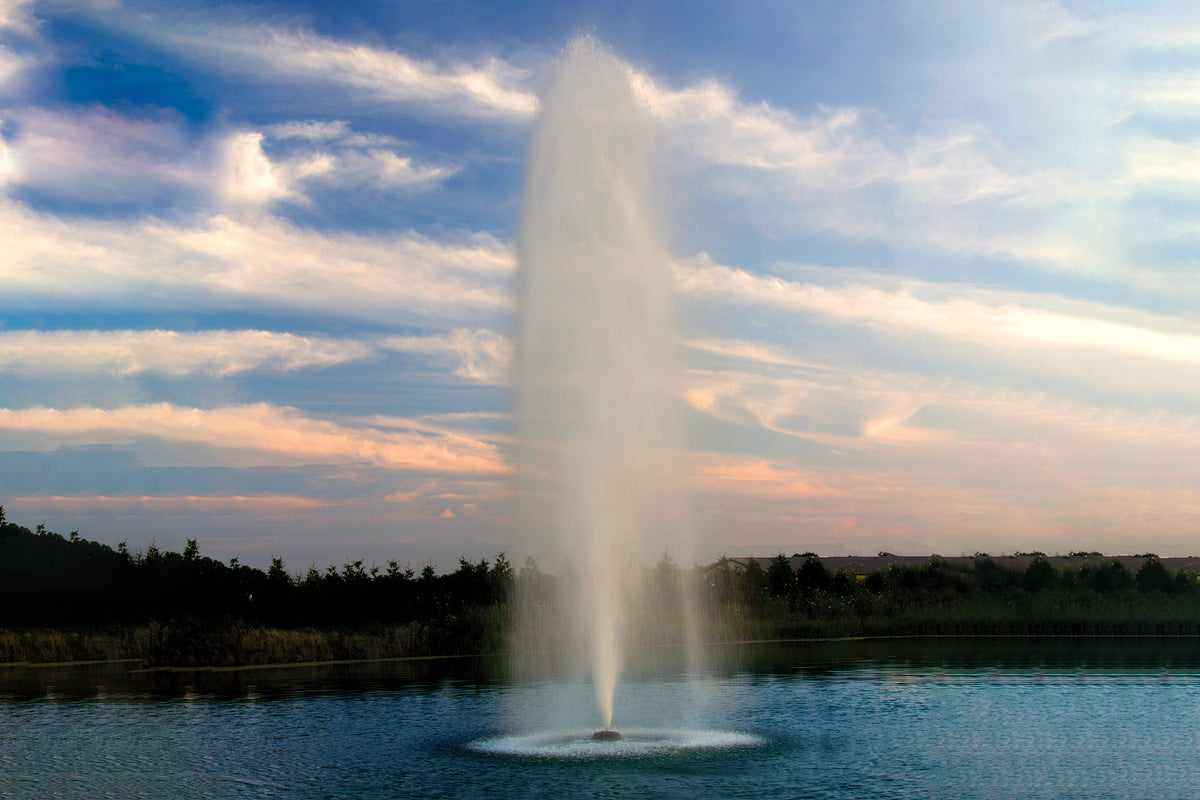

• Aqua Control Select Series 2 Falling Water Lily fountain spray pattern running on a pond in daylight
  • Aqua Control Select Series 2 Aerating Bundle (Single Phase) – Falling Water Lily (Nozzle A) – No Lights – Fountain Depot
1 2

Aqua Control

Aqua Control Select Series 2 Aerator (230V/3P) – Falling Water Lily

Aqua Control Select Series 2 Aerator (230V/3P) – Falling Water Lily

In stock

B620V5023-100A

Horsepower
Cable Length
Pump Orientation

Starting Price:

$12,511.04 CAD
$12,511.04 CAD
Sale Sold out
Shipping calculated at checkout.

QUICK OVERVIEW

Aqua Control Select Series 2 Aerator (230V/3P) – Falling Water Lily is a high-output display aerator that produces a soft, layered floral display with a cascading water-lily effect while moving large volumes of water for circulation and oxygen transfer. Its softer, layered presentation suits residential ponds and garden settings where an elegant look matters as much as water movement. Built on the Select Series 2 platform — Aqua Control's highest-pumping-rate aerator line — this three-phase model is the right choice for commercial, municipal, and golf course sites with 230V three-phase service.

Key Specifications

  • Motor: 5 HP, 230V three-phase (20 amps, per Aqua Control's 60Hz motor chart — lower current draw than the single-phase equivalent)
  • Pumping rate: 500 GPM — display aerators move far more water than a standard decorative fountain
  • Construction: high-strength composite pump components with lightweight propellers that reduce motor stress, plus an easy-clean composite suction screen
  • Configurations: vertical (44 in minimum depth), or horizontal for shallow water (operates in as little as 28 in)
  • Includes: motor unit, float, suction screen, quick disconnect, and control panel with a circuit for one light set
  • Cord length: 100 ft or 200 ft underwater-rated power cable
  • Warranty: 3-year manufacturer's warranty
  • Made in the USA by Aqua Control, Inc.

Falling Water Lily spray performance by horsepower

HP Spray height Spray diameter Output Min. depth (vertical)
5 HP 25 ft 7 ft 500 GPM 44 in

All horizontal-configuration models operate in a minimum of 28 inches of water — the right choice for shallow retention and stormwater ponds. Performance figures are from Aqua Control’s official 60Hz specification chart.

Which pond is it right for?

The Select Series 2 platform suits ponds of roughly a quarter acre and up; at this voltage the Falling Water Lily pattern is offered in 5 HP, making it best suited to mid-size and larger ponds where a tall, dramatic centre display and maximum water movement are wanted. If your site has standard single-phase power instead, see the single-phase Select Series 2 lineup; for a taller, more defined decorative display rather than maximum water movement, look at the Select Series fountains. Not sure which model fits your pond? Email Info@fountaindepot.com with your pond's size, depth, and available power — our recommendations are backed by 50+ years of fountain installation and service experience.

Complete the installation

Add Aqua Control 30W or 80W stainless steel LED light sets to run the Falling Water Lily after dark — the included control panel already has a circuit for one light set. Browse the full Select Series 2 aerator lineup to compare all patterns.

Shipping & Returns

Ships across Canada from stock — delivery typically takes 5 to 10 business days depending on province. Uninstalled units qualify for return within the applicable return period; contact us to arrange.

Frequently asked questions

What does the Falling Water Lily pattern look like?
The Falling Water Lily produces a soft, layered floral display with a cascading water-lily effect. Its softer, layered presentation suits residential ponds and garden settings where an elegant look matters as much as water movement.

What is the difference between the single-phase and three-phase models?
Performance is identical — same spray pattern, pumping rate, and warranty. The 230V three-phase version draws fewer amps per horsepower (5–20 A versus 10–28 A single-phase) and suits commercial, municipal, and golf course sites that already have three-phase electrical service. If your site only has standard single-phase power, choose the single-phase model instead.

How long does delivery take in Canada?
Fountain Depot ships Aqua Control equipment across Canada, typically arriving in 5 to 10 business days depending on your province.

Should the fountain be removed for a Canadian winter?
Yes. Floating fountains should be removed before freeze-up and stored for the winter; if you need to keep water open around docks or equipment, a dedicated de-icer is the right tool for that job.

View full details

Warranty

3-Year Coverage

  • Applies to Select Series 2 Display Aerator units in both 230V single-phase and three-phase configurations
  • Covers the main Select Series 2 unit for 3 years
  • Control panel components also carry a 3-year warranty when supplied with the system

Optional Extended Protection

  • Aqua Control publishes an optional 2-year extended warranty for Select Series 2 units at the time of purchase
  • Helps support longer-term ownership on larger decorative aeration installations
  • Availability should be confirmed with the manufacturer or distributor before ordering

Important Conditions

  • Coverage applies under proper installation, voltage, flow, and operating conditions
  • Improper installation, freezing damage, alteration, and unauthorized repair can void warranty
  • Notify the distributor first if a warranty issue is suspected so factory support can guide next steps
Warranty coverage is based on current Aqua Control Select Series 2 warranty information. Refer to the latest official Aqua Control documentation for full terms, exclusions, and claim procedures.

Components Included

Aerator Pump System

  • High-efficiency motor and pump assembly
  • Designed for aeration performance
  • Continuous-duty operation

Float & Mooring Assembly

  • Heavy-duty float platform
  • Mooring lines for positioning
  • Stable performance in open water

Nozzle & Display System

  • Pattern-specific nozzle assemblies
  • Engineered for aeration + display balance
  • Lighting compatibility available
Included components vary based on phase configuration (1P or 3P) and selected spray pattern. Lighting and control systems are typically configured separately depending on project requirements.

Technical Specifications

Pattern Voltage / Phase 1 HP 2 HP 3 HP 5 HP GPM Range Min Depth
Cluster Arches 230V / 1P or 3P 8' H × 16' D 12' H × 24' D 14' H × 28' D 20' H × 40' D 250–500 GPM 32"–44" vertical / 28" horizontal
Crown Gusher 230V / 1P or 3P 9' H × 12' D 11' H × 16' D 15' H × 22' D 20' H × 27' D 250–500 GPM 32"–44" vertical / 28" horizontal
Daffodil 230V / 1P or 3P 10' H × 25' D 12' H × 30' D 14' H × 36' D 20' H × 54' D 250–500 GPM 32"–44" vertical / 28" horizontal
Delmar 230V / 1P or 3P 9' H × 10' D 12' H × 13' D 14' H × 15' D 22' H × 26' D 250–500 GPM 32"–44" vertical / 28" horizontal
Double Arch 230V / 1P or 3P 8' H × 18' D 12' H × 22' D 15' H × 32' D 20' H × 48' D 250–500 GPM 32"–44" vertical / 28" horizontal
Quad 230V / 1P or 3P 9' H × 25' D 11' H × 36' D 15' H × 44' D 22' H × 60' D 250–500 GPM 32"–44" vertical / 28" horizontal
Scepter 230V / 1P or 3P 9' H × 7' D 12' H × 9' D 15' H × 12' D 22' H × 18' D 250–500 GPM 32"–44" vertical / 28" horizontal
Spider and Arch 230V / 1P or 3P 8' H × 30' D 12' H × 45' D 16' H × 60' D 24' H × 80' D 250–500 GPM 32"–44" vertical / 28" horizontal
Super Lily 230V / 1P or 3P 8' H × 30' D 10' H × 35' D 12' H × 40' D 16' H × 50' D 250–500 GPM 32"–44" vertical / 28" horizontal
Tornado 230V / 1P or 3P 7' H × 20' D 10' H × 28' D 13' H × 35' D 18' H × 45' D 250–500 GPM 32"–44" vertical / 28" horizontal
Trillium 230V / 1P or 3P 9' H × 15' D 12' H × 22' D 16' H × 30' D 24' H × 38' D 250–500 GPM 32"–44" vertical / 28" horizontal
Triple Tier 230V / 1P or 3P 9' H × 18' D 12' H × 24' D 14' H × 28' D 18' H × 36' D 250–500 GPM 32"–44" vertical / 28" horizontal
Weeping Willow 230V / 1P or 3P 8' H × 12' D 12' H × 18' D 18' H × 25' D 24' H × 30' D 250–500 GPM 32"–44" vertical / 28" horizontal

Base Motor & Electrical Specifications

HP Output (GPM) 230V / 1P Amps 230V / 3P Amps Minimum Operating Depth
1 HP 250 GPM 10 A 5 A 32" vertical / 28" horizontal
2 HP 350 GPM 13 A 9 A 44" vertical / 28" horizontal
3 HP 450 GPM 17 A 12 A 44" vertical / 28" horizontal
5 HP 500 GPM 28 A 20 A 44" vertical / 28" horizontal
Aqua Control Select Series 2 Display Aerators use axial-flow pumps designed to move large volumes of water at moderate pressure, giving these patterns both decorative impact and strong aeration performance. 230V single-phase and 230V three-phase options are available across the published horsepower range.
Manufacturer naming note: Aqua Control’s current published Select Series 2 materials verify patterns such as Delmar, Double Arch, Spider & Arch, Super Lily, Trillium, Triple Tier, Weeping Willow, Quad, Scepter, Cluster Arch, Crown Gusher, Daffodil, and Tornado. I did not add 460V specs, per your request. I also did not add separate rows for “Ventilator” or “Falling Water Lily” because I could not verify those exact names in Aqua Control’s current published manufacturer materials.
pdf_icon Aqua control service manual chapter select series display aerators instructions.pdf Click to Download

Model Options

The Select Series 2 Aerators offer a wide range of decorative aeration spray patterns, available in both single-phase and three-phase configurations for different installation and performance requirements.

Vertical & Geyser Styles

  • Ventilator – Strong aeration plume
  • Tornado – Twisting vertical pattern
  • Crown Gusher – Wide upward spray
  • Daffodil – Compact vertical bloom

Classic Decorative Patterns

  • Super Lily – Rounded layered spray
  • Scepter – Elegant structured display
  • Trillium – Balanced multi-tier pattern
  • Falling Water Lily – Smooth cascading effect

Wide Coverage Designs

  • Spider & Arch – Long outward arcs
  • Cluster Arches – Multi-arc grouping
  • Double Arch / Delmar – Symmetrical arcs
  • Quad / Triple Tier – Multi-direction coverage
  • Weeping Willow – Soft wide drooping spray

Key Features

Aeration-Focused Performance

  • Designed to maximize oxygen transfer
  • Promotes strong surface circulation
  • Improves overall water quality

Decorative Aerator Displays

  • Combines aeration with visual appeal
  • Multiple spray pattern options available
  • Suitable for ponds and lakes

Reliable Industrial Design

  • Continuous-duty motor system
  • Built for long-term operation
  • Corrosion-resistant construction
