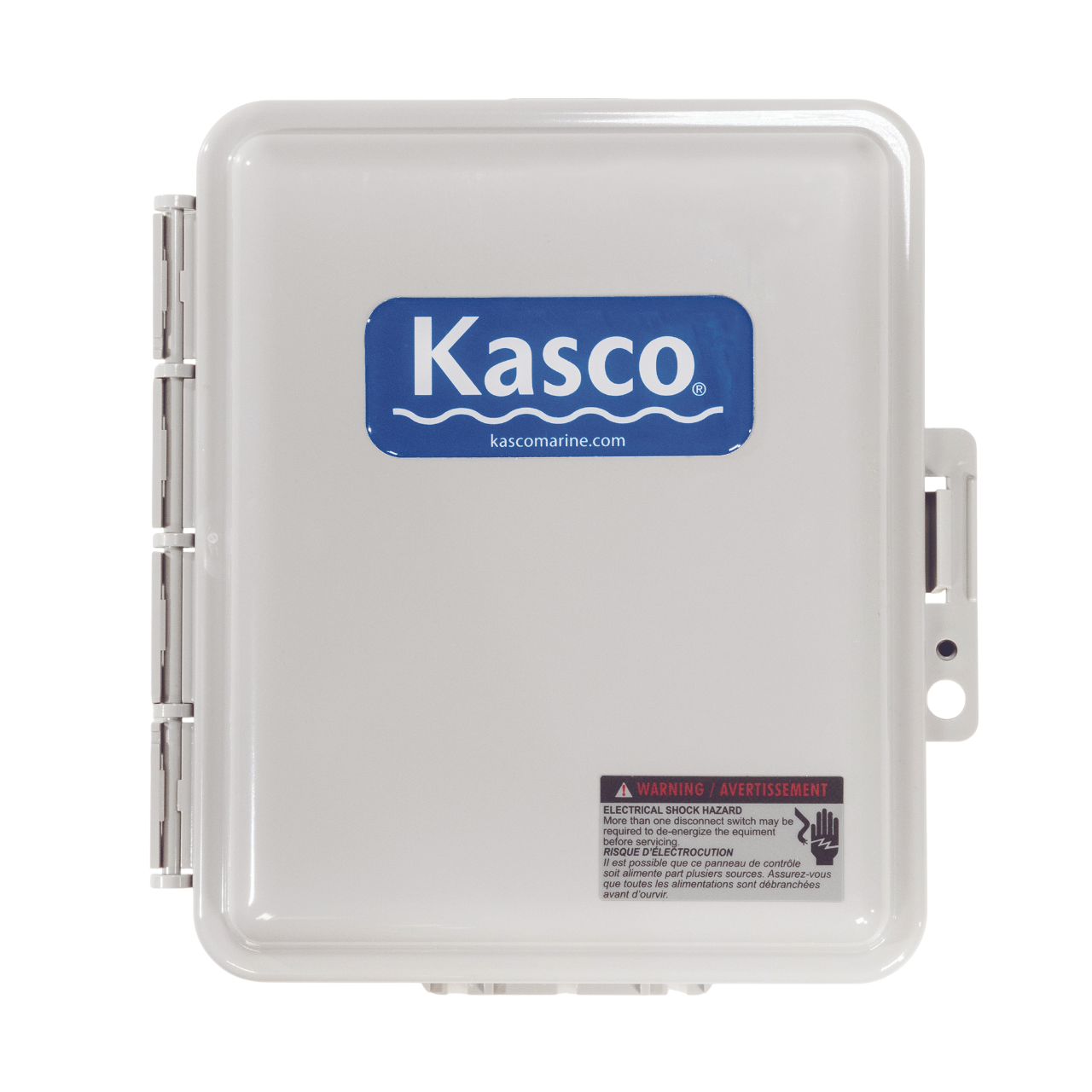

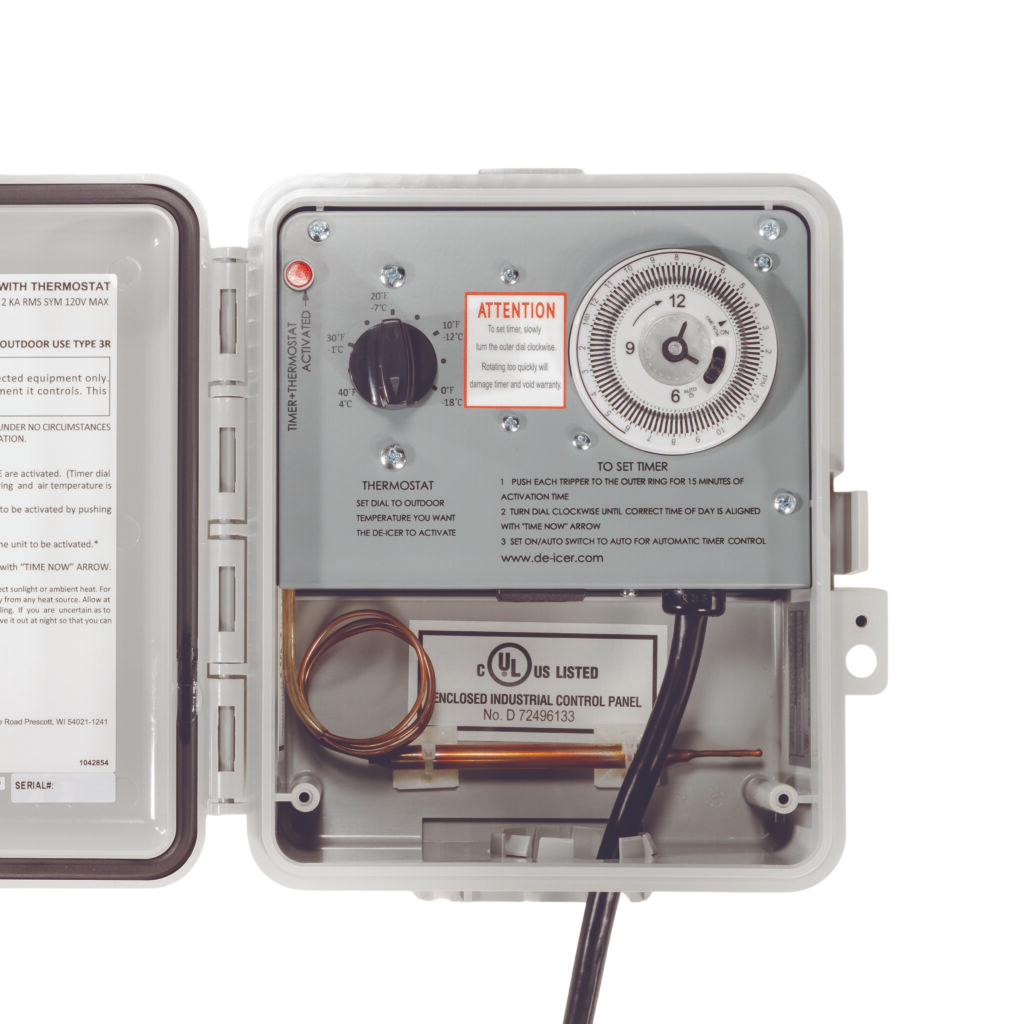

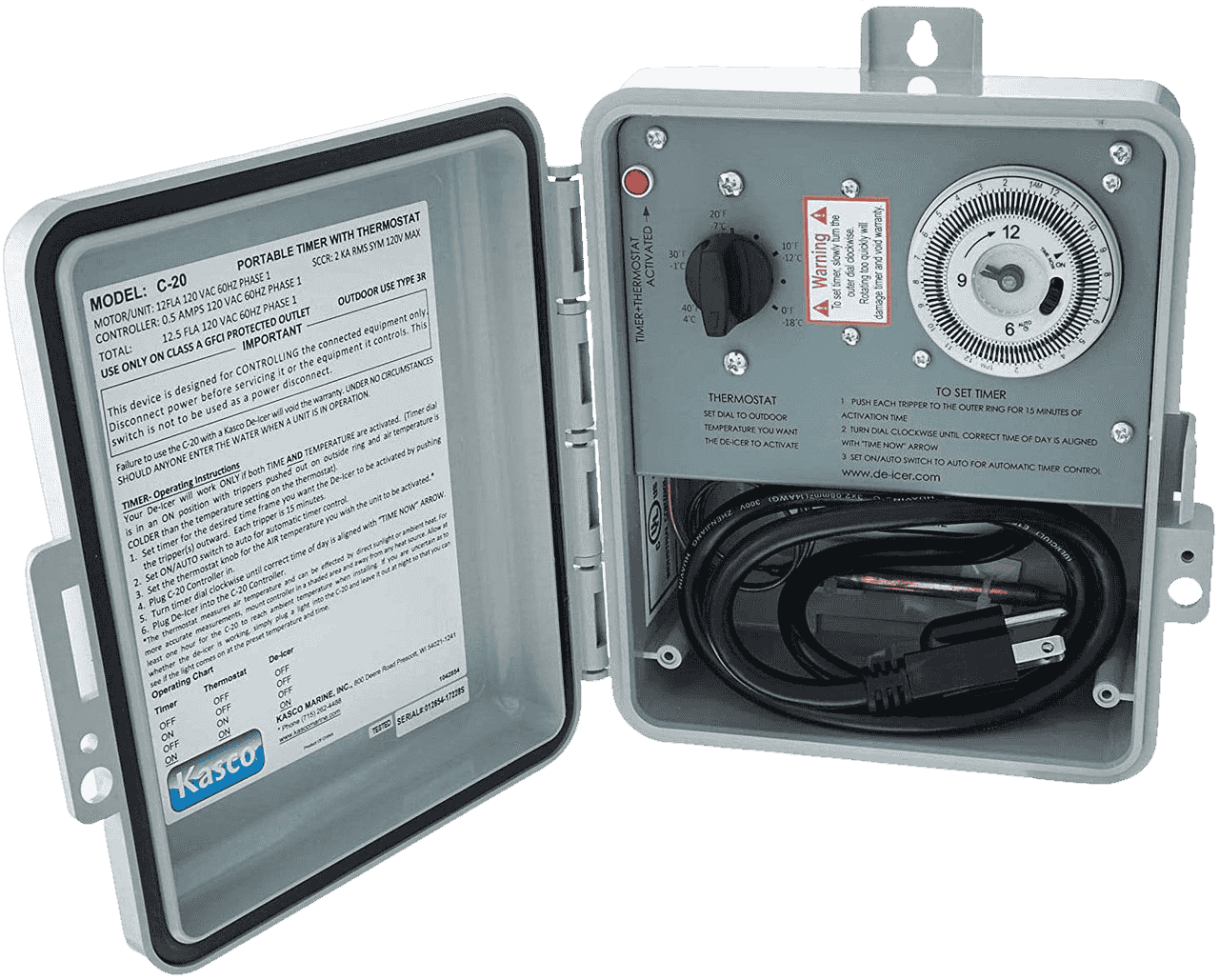

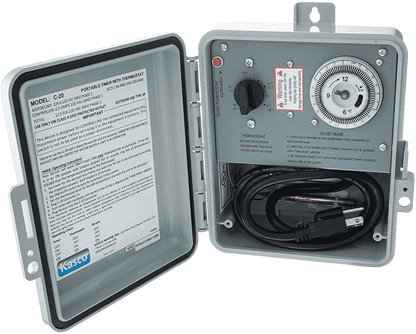

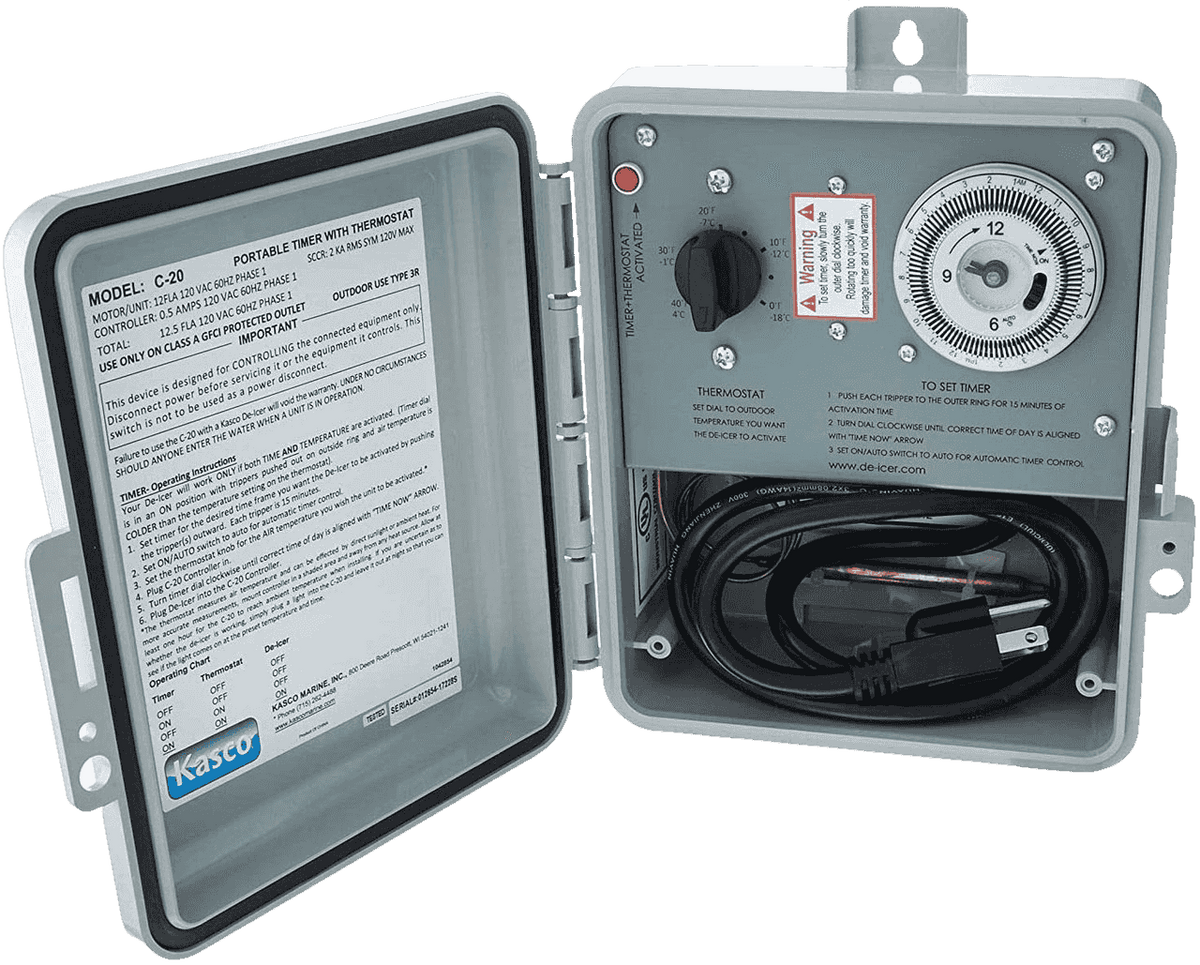

Kasco C-20 Timer and Thermostat Control Panel

Kasco C-20 Timer and Thermostat Control Panel

In stock

Starting Price:

$475.70 CAD
$475.70 CAD
Sale Sold out
Shipping calculated at checkout.

QUICK OVERVIEW

Kasco C-20 Control Panel – 120V (1/2 to 1HP) is designed to automate the operation of Kasco de-icers and compatible equipment using temperature and time-based control. Built for 120V systems ranging from 1/2HP to 1HP, it features a built-in thermostat and 24-hour timer to ensure efficient operation only when needed. Operating in temperatures between 0°F and 40°F, it provides reliable performance for cold-weather dock, marina, and shoreline applications, with a simple plug-and-play installation.

View full details

Warranty

2-Year Limited Warranty

  • Kasco control panel manuals such as the C-10 thermostat control provide a 2-year warranty period from date of purchase
  • Designed to cover defects in material and workmanship under normal use and service
  • Original purchase documentation should be retained for warranty support

Covered Panel Types

  • Applies to thermostat, timer, lighting, and fountain/aerator control panel families
  • Includes models such as C-10, C-20, C-25, C-220, C-230, C-85, C-95, CA-3235, CF-3235, and CF-3075
  • Panels are intended for compatible Kasco fountains, aerators, circulators, de-icers, and lighting systems

Important Conditions

  • Unauthorized modifications to any Kasco control panel may void the UL listing and Kasco warranty
  • Never add additional power cord length unless expressly permitted by manufacturer instructions
  • Install panels upright and according to the latest Kasco installation manual and electrical code requirements
Control panel warranty information is based on current Kasco control panel manuals and product-family guidance. Because panel coverage may depend on application and installation, refer to the latest official Kasco documentation for complete terms.

Components Included

Control Panel Enclosure

  • Weather-resistant housing
  • Outdoor-rated construction
  • Secure electrical protection

Control Hardware

  • Timers, switches, or thermostats (model dependent)
  • Internal wiring and relays
  • Pre-configured control systems

System Integration

  • Compatible with Kasco fountains and lighting
  • Supports automation setups
  • Designed for easy installation
Included components vary by model and configuration. Verify voltage, phase, and control type to match your fountain, aerator, or lighting system.

Technical Specifications

Model Voltage Phase Amps Designed For Primary Function Key Features
C-10 120V 1P — De-Icers Thermostat control Temperature-based activation
C-20 120V 1P — De-Icers Timer + thermostat Scheduled + temperature control
C-25 120V 1P 15 A 1/2–1 HP Fountains & Aerators Lighting + timer control GFCI, timer, photocell outlet
C-85 208-240V 1P 20 A 3/4–2 HP Units Lighting control GFCB, timer, surge protection
C-95 208-240V 1P 30 A 3–5 HP Units Lighting control GFCB, timer, surge protection
C-220 208-240V 1P 20 A 3/4–2 HP Aerators Timer control 24-hr timer, surge protection
C-230 208-240V 1P 30 A 3–5 HP Aerators Timer control 24-hr timer, surge protection
CA-3235 208-240V 3P 30 A 2–5 HP 3-Phase Systems 3-phase timer control Timer, HOA switch, overload protection
CF-3235 208-240V 3P 30 A 2–5 HP 3-Phase Fountains 3-phase lighting control GFCI, motor starter, surge protection
CF-3075 208-240V 3P 30 A 7.5 HP Systems High-capacity lighting control Dual timers, GFCI, overload protection
Kasco control panels are selected based on motor horsepower, voltage, and phase. Choosing the correct panel ensures proper operation, automation, and protection of your system.
Always match the control panel to the equipment voltage and phase. Features vary by model including thermostat, timer, photocell, and 3-phase control capabilities.
pdf_icon Kasco c control panel manual.pdf Click to Download

Model Options

Lighting Control Panels

  • C-85, C-95, CF-3235, CF-3075
  • Designed for fountain lighting systems
  • Available in single and three-phase
  • Supports high horsepower lighting loads

Timer Control Panels

  • C-220, C-230, CA-3235
  • Automated on/off scheduling
  • Ideal for fountains and aerators
  • Improves energy efficiency

Specialty Control Systems

  • C-25 (Photocell + Timer)
  • C-20 (Timer + Thermostat)
  • C-10 (Thermostat Control)
  • Designed for seasonal and temperature-based operation

Key Features

Precision Control

  • Timers, thermostats, and photocells available
  • Automates fountain and lighting operation
  • Reduces manual intervention

Durable Outdoor Design

  • Weather-resistant enclosures
  • Designed for outdoor installations
  • Reliable year-round performance

Application Flexibility

  • Compatible with fountains, aerators, and lighting
  • Single-phase and three-phase options
  • Wide range of control configurations
