Kasco
Kasco C-220 Timer Control Panel
Price in CAD. Ships across Canada from Markham, Ontario.
Not sure this is the right model? Ask our techsChoose Your Control Panel
A panel is matched to three things: supply voltage, horsepower, and whether the unit is a fountain or an aerator. Get any of the three wrong and the panel will not protect the motor.
120V single-phase
240V single-phase

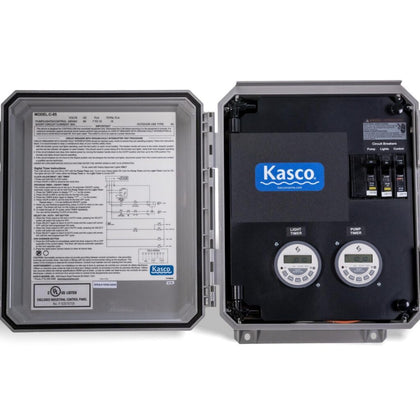

C-85Digital lights panel, to 2 HP$3,363.98

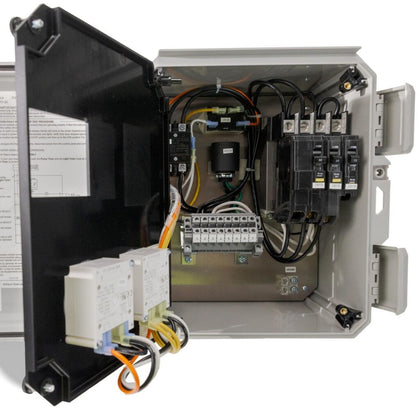

C-95Digital lights panel, 3 to 5 HP$3,359.72
C-220ViewingAerator timer, 20 ampC-230Aerator timer, 30 amp$1,988.00
Description

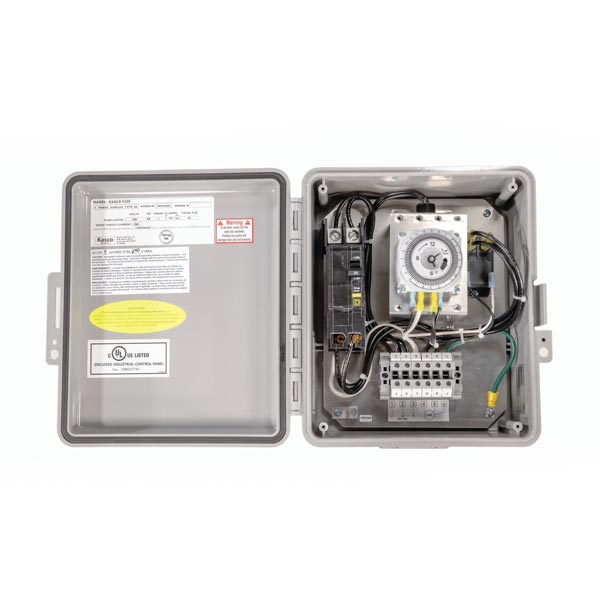

Kasco C-220 Control Panel – 208–240V (3/4 to 2HP) is designed for reliable control and protection of AquatiClear Circulators and surface aerators. Built for 208–240V single-phase systems ranging from 3/4HP to 2HP, it features a 24-hour timer, surge protection, and 20-amp GFCB protection for safe and compliant operation. Housed in a weather-resistant enclosure, it is ideal for professional and facility-managed aquatic systems requiring dependable automation and performance.
Specification
- Make
- Kasco Marine
- Model
- C-220
- Type
- Aerator control panel
- Voltage
- 240V
- Rating
- 20 amp
- Control
- Timer
Technical Information
Warranty
- Manufacturer warranty
- 2 years
- Serviced by
- Our Markham repair centre
- Installation
- By a licensed electrician to local code
Before you order
Questions our techs answer every week

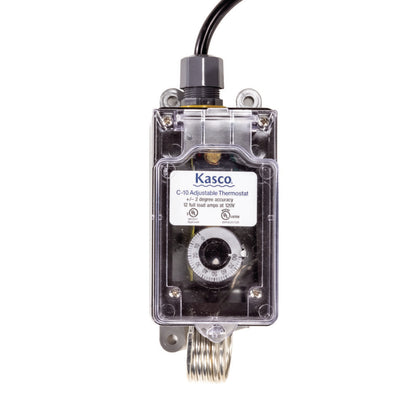

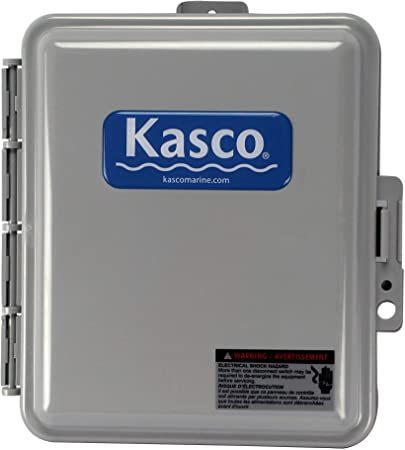

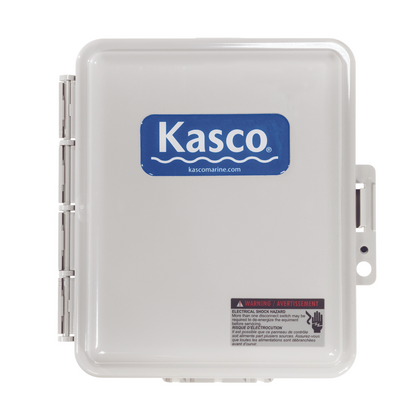

Three things have to line up: supply voltage, horsepower, and whether the unit is a fountain or an aerator. On 120V the C-25 covers aerators and fountains, while the C-10 and C-20 are de-icer controls. On 240V single-phase the C-85 covers up to 2 HP and the C-95 covers 3 to 5 HP.
Send us your model and serial number and we will name the panel rather than have you work it out from the range.

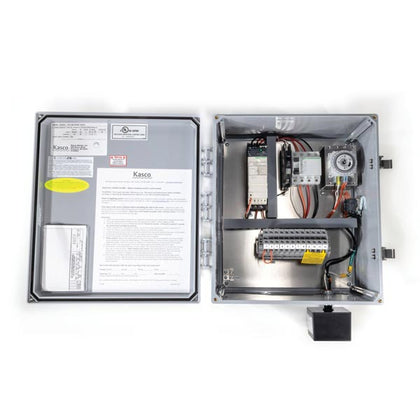

Application. Both are 230V three-phase panels rated 2 to 5 HP, but the CA-3235 is built for aerators and the CF-3235 for fountains. They are not interchangeable despite the matching rating.
The CA is what ships with the 3.3AF and 5.3AF surface aerators; the CF is what ships with three-phase J-Series and VFX fountains. If you are replacing a panel, match the letter as well as the number.
For protection, yes. A panel provides proper disconnect and overload protection for the motor - the unit will physically run without one, but a failure a panel would have caught becomes your problem rather than a warranty claim.
Beyond protection it adds control: timers so the unit runs only when it is being seen, thermostats for winter operation, and photocells for lighting.
Often yes. J-Series and VFX fountains ship with a matched panel, but customers move up to a lights-capable or digital panel when they add a light kit or want automated scheduling.
Tell us the unit and what you want it to do automatically and we will confirm whether the upgrade is worth it.
Amperage. Both are 240V aerator timer panels - the C-220 is rated 20 amp and the C-230 is 30 amp.
The right one follows from the motor's draw and the circuit at your site. If you are unsure, send us the model and we will check it against the requirement.
A licensed electrician, to local code. These are line-voltage enclosures wired to equipment sitting in water, and in Ontario that is not a DIY job.
We can supply the panel and the specification; the connection itself should be done by someone qualified to certify it.
