Kasco Marine Canada

Fountain Depot is an authorized Kasco Marine dealer and a factory-authorized Kasco repair centre, operating from Markham, Ontario under the Fountain Place Co. Ltd. name since 1967. We sell the full Kasco range across Canada, and — unlike most Canadian retailers — we service and rebuild these units in our own shop. Parts are stocked because we use them ourselves.

The Kasco Marine range

• Surface aerators — AF and HAF series, 1/2 HP to 5 HP, for ponds, lagoons and wastewater.

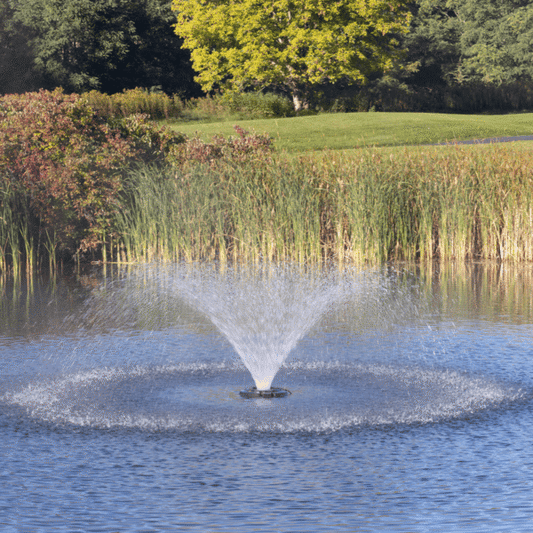

• Decorative floating fountains — J-Series, five interchangeable spray patterns included.
• Aerating fountains — display and oxygen transfer in one unit.
• Diffused aeration and RobustAire systems — bottom-up aeration for deeper water.
• Circulators and dock bubblers — AquatiClear and de-icing circulation.
• De-icers — keep docks, boat lifts and open water through Canadian winters.
• Control panels — timers, thermostats and photocells.
• LED light kits — stainless steel 3-light and 6-light configurations.
• Replacement parts — capacitors, floats, mooring lines and seals.

Reading Kasco model numbers

The suffixes carry real meaning and are easy to get wrong:

• AF — 120V single phase. HAF — 240V single phase.
• .1 (3.1, 5.1) — 240V single phase, not three-phase. This matters: 3 HP and 5 HP units will run at farms and rural sites with no three-phase service.
• .3 (3.3, 5.3) — genuine three-phase, and these ship with a CA-3235 control panel included.
• R or HR — a replacement motor only, not a complete unit. Check carefully before ordering on price alone.

Verified AF series specifications

• 2400AF — 1/2 HP, 120V, 5.7 running amps, 15" minimum depth, rated to roughly 1/2 acre
• 3400AF — 3/4 HP, 120V, 6.7 running amps, 17.5" minimum depth
• 4400AF — 1 HP, 120V, 9.1 running amps, 19" minimum depth
• 8400AF — 2 HP, 240V, 9.0 running amps, 20" minimum depth

All AF units include a float and two 50' mooring lines, are ETL listed to UL and CSA standards, and carry a sacrificial zinc anode for freshwater or saltwater service. Standard aeration efficiency is rated up to 3.0 lbs of oxygen per horsepower per hour under Auburn University testing.

Kasco repair in the GTA

We are a factory-authorized Kasco repair centre. If your unit has failed, we can diagnose and rebuild it rather than sell you a replacement — see Kasco repair, Toronto and the GTA.

For sizing help, call 1-855-752-5795 or email info@fountaindepot.com with your pond size, depth and distance to power.
